SP, type 2 tubular motor

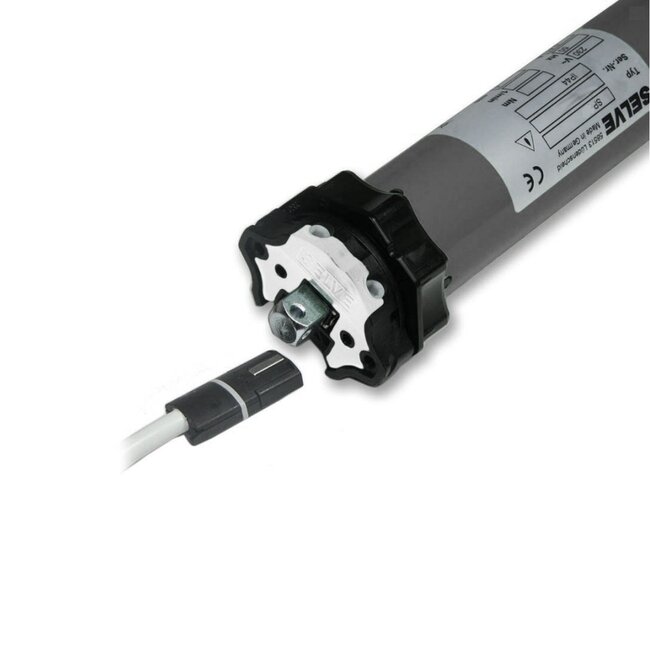

The classic among electric roller shutter motors. The technical heart of this motor is the spindle limit switch. On the SP motors, the limit switch setting is achieved via two Allen screws located on the motor head.

The Selve tube motors are now in a new grey colour, since the end of 2019 the tube motor is no longer coated in the familiar colour green, but in grey.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 7 to 50 Nm
- 7 and 10 Nm version also available as extra short tubular motor
- speed 17 rpm (7 to 40 Nm) and 12 rpm (50 Nm)
- suitable for axle/Shaft from Ø 50 mm
- tubular motor with mechanical end shut-off
- spindle end shut-off with microswitch and patented spin protection
- reduced installation width thanks to universal motor head
- simple adjustment due to ball head adjustment aid
- Built-in in the familiar way
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- no top stop required thanks to position-controlled switch-off

Type Selve SP 2 tubular motors
- Selve SP 2/7 - 7 Nm - 17 rpm - 95 Watt - length 506 mm
- Selve SP 2/7 S - 7 Nm - 17 rpm - 95 Watt - length 379 mm
- Selve SP 2/10 - 10 Nm - 17 rpm - 105 Watt - length 506 mm
- Selve SP 2/10 S - 10 Nm - 17 rpm - 105 Watt - length 379 mm
- Selve SP 2/15 - 15 Nm - 17 rpm - 152 Watt - length 506 mm
- Selve SP 2/20 - 20 Nm - 17 rpm - 172 Watt - length 521 mm
- Selve SP 2/30 - 30 Nm - 17 rpm - 220 Watt - length 541 mm
- Selve SP 2/40 - 40 Nm - 17 rpm - 345 Watt - length 542 mm
- Selve SP 2/50 - 50 Nm - 12 rpm - 345 Watt - length 542 mm
