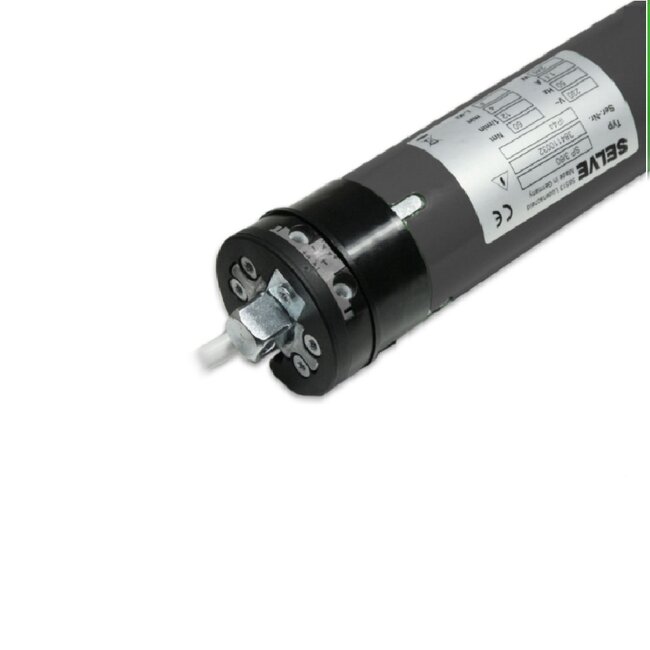

Selve SP 3 tubular motor

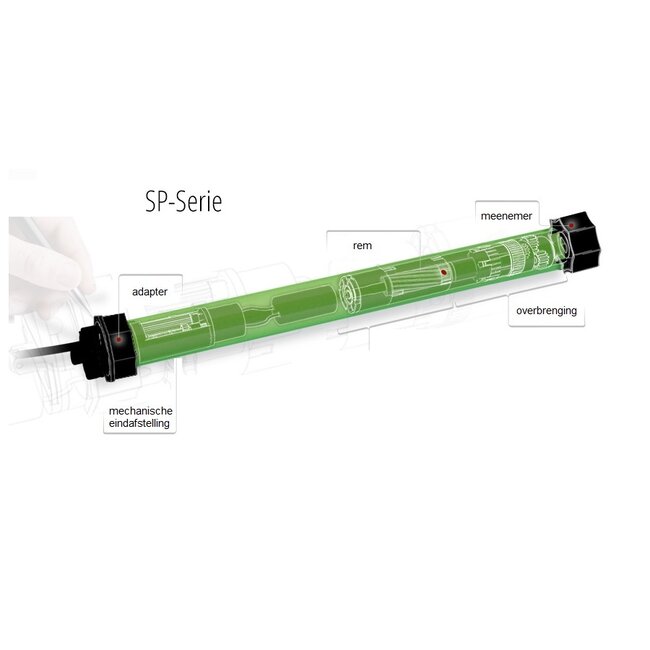

The classic among electric roller shutter motors. The technical heart of this motor is the spindle limit switch. On the SP motors, the limit switch setting is achieved via two Allen screws located on the motor head.

- Supplied without motor support and adapter set
- power supply 230 Volt 50 Hz
- available in 50 to 120 Nm
- speed 11, 12 and 17 rpm depending on motor power
- suitable for axle/Shaft from Ø 65 mm
- tubular motor with mechanical limit switch
- spindle limit switch with microswitch and patented spin protection
- reduced installation width thanks to universal motor head
- simple adjustment due to ball head adjustment aid
- Built-in in the familiar way
- simple adaptation to all conventional roller shutter tubes through a perfect adapter system
- no top stop required thanks to position-controlled switch-off

- Selve SP 3/50 - 50 Nm - 17 rpm - length 722 mm
- Selve SP 3/60 - 60 Nm - 12 rpm - length 722 mm
- Selve SP 3/70 - 70 Nm - 17 rpm - length 722 mm
- Selve SP 3/80 - 80 Nm - 12 rpm - length 722 mm
- Selve SP 3/120 - 120 Nm - 11 rpm - length 722 mm
