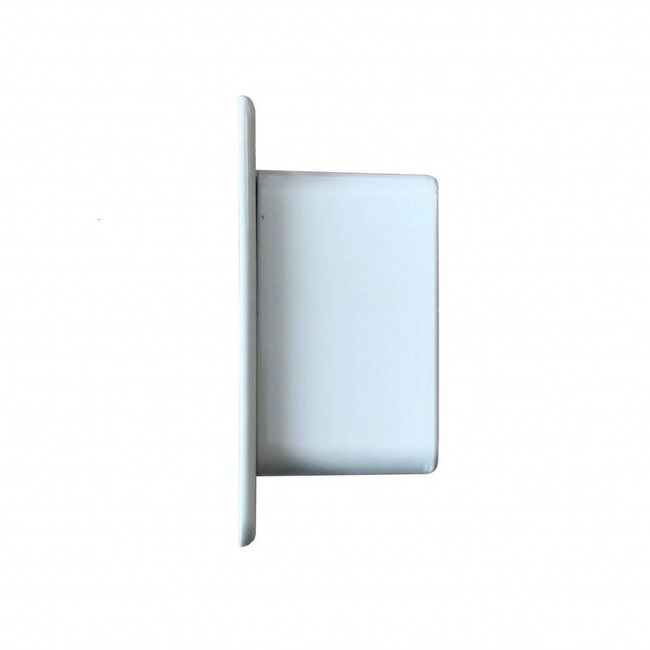

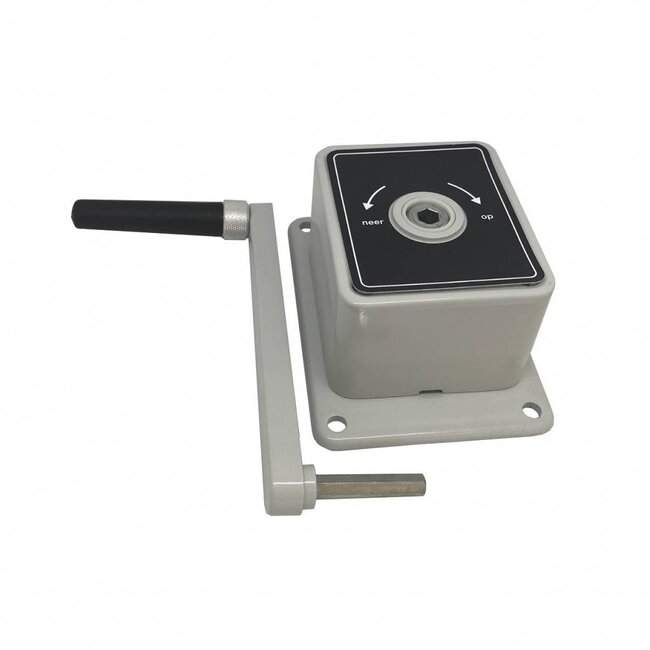

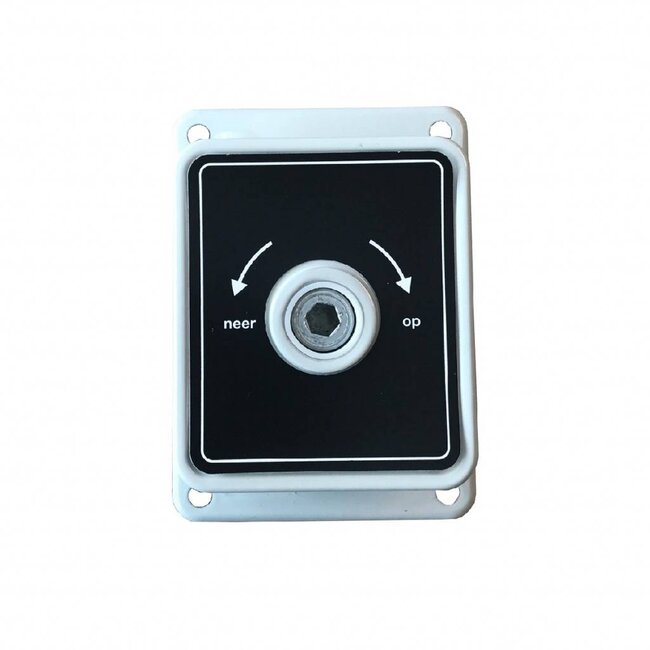

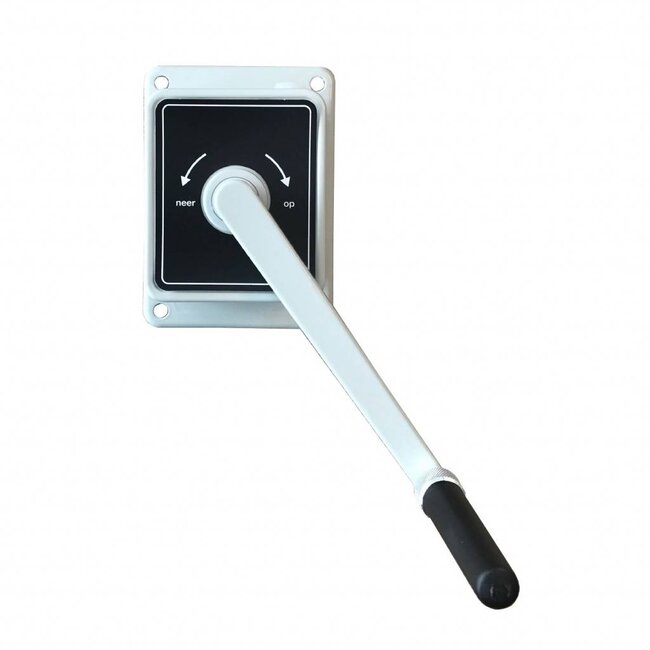

Steel wire winder metal with base plate

When it comes to safety and durability, you can demand TNO-Delft-tested quality and security. Steel wire winder with a fully enclosed winch housing made of DIN 231 aluminium. The housing of the Steel wire winder is chromate-coated and powder-coated in the standard colour grey, RAL 7032. The drive spindle has a double trapezoidal thread and bearings of nylon and bronze. The winch locks as soon as the (removable) crank is stationary, but also when the tension on the cable is lost. the cable can only be mounted in the right direction. capacity with Ø 2 mm steel wire is approx. 12 metres and with Ø 3 mm steel wire is approx. 6 metres

- extra heavy-duty version for long service life
- is supplied without steel cable
- maximum traction force 45 kg
- suitable for steel wire rope Ø 2 mm, length 12 metres
- suitable for steel wire rope Ø 3 mm, length 6 meter
- made of steel
- only available in clockwise version
- delivered with crank
- suitable for roller shutters, drop-down screens and screens
- Colour grey - RAL 7032
- housing dimensions 84x99x59 mm (wxhxd)
- base plate dimensions 142x114 mm
