Siral Strap winder - 5-metre strap reel - Easy

Siral Strap winder Easy 5 mtr

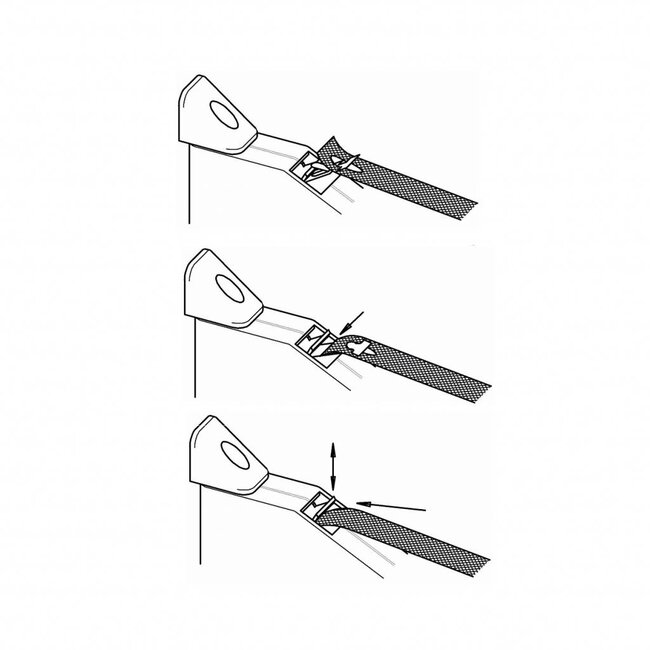

- very easy to fix the strap without opening the Strap winder
- Strap not included
- Strap winder cannot be opened
- comes with Dutch assembly instructions
- plastic white housing
- with pre-tensioned spring
- hinged

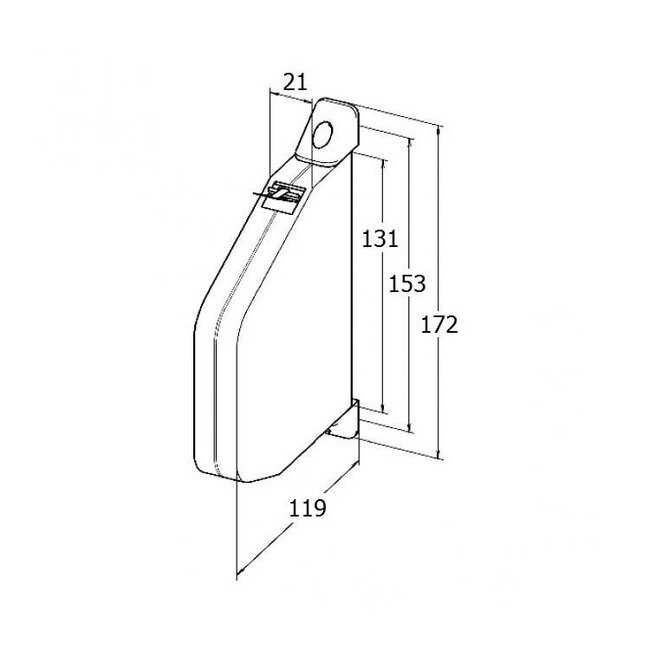

- the housing is 21 mm thick, 119 mm wide and 131 mm high
- fixing holes 153 mm apart
- suitable for ± 5 m Strap (max 16 mm)
- suitable for roller shutters up to 180 cm high
- maximum roller shutter surface area 4 m2
- Strap length required is approx. shutter height x 2 + 1m
- In the case of a roller shutter with a strap reducer, the required strap length is approximately 4x shutter height.

-- download here the Strap winder assembly instructions --
