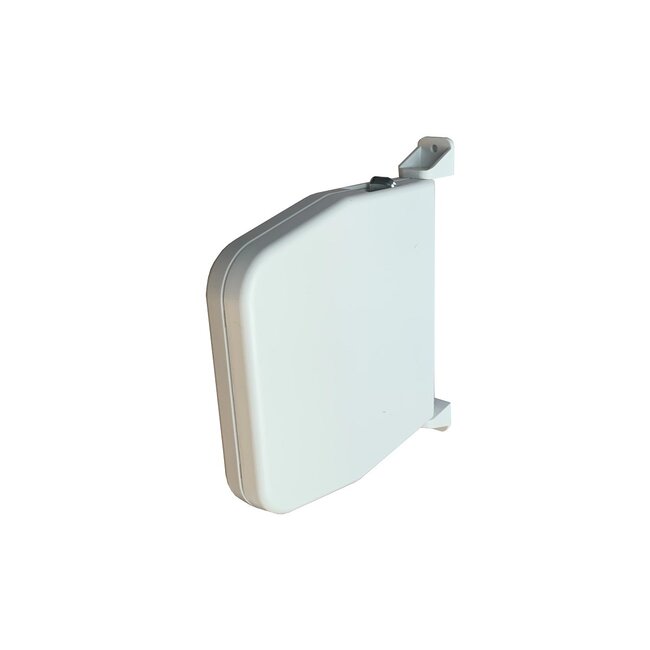

Selve mini strap winder for 5 metre strap

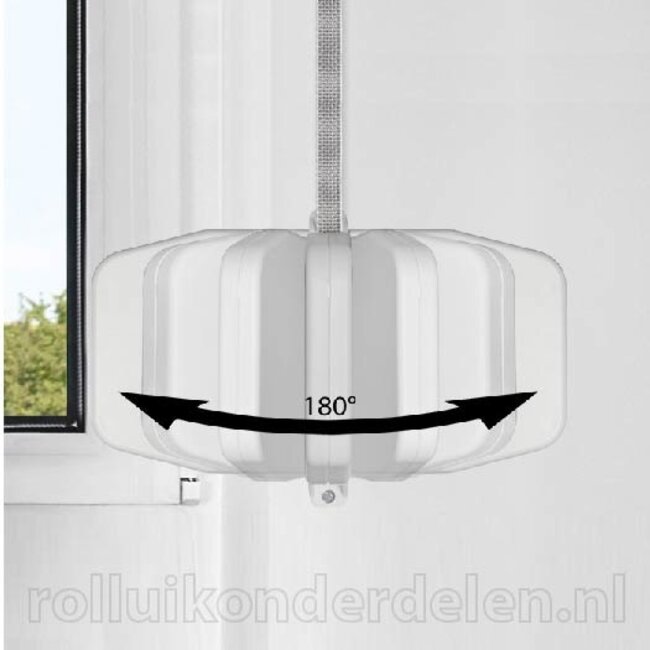

The Selve mini surface-mounted strap winder is for roller shutter systems with a Strap width of up to 15 mm. The band winder consists of a high-quality white plastic housing. This Strap winder is only 22 mm thick and offers tangible mounting advantages as it is easy to open. Changing the Strap or fitting a tyre for the first time is therefore very easy. The built-in spring drum has an excellent service life of 20,000 tested movement cycles. After the strap retractor is mounted on the wall or window frame, it can be rotated 180°. Should the pull-up strap ever need replacing, this can be done by simply opening the housing with a wide flat screwdriver.

- Strap winder is supplied without strap!
- rolluikonderdelen.com provides simple assembly instructions
- only available in white
- the built-in spring drum is already preloaded

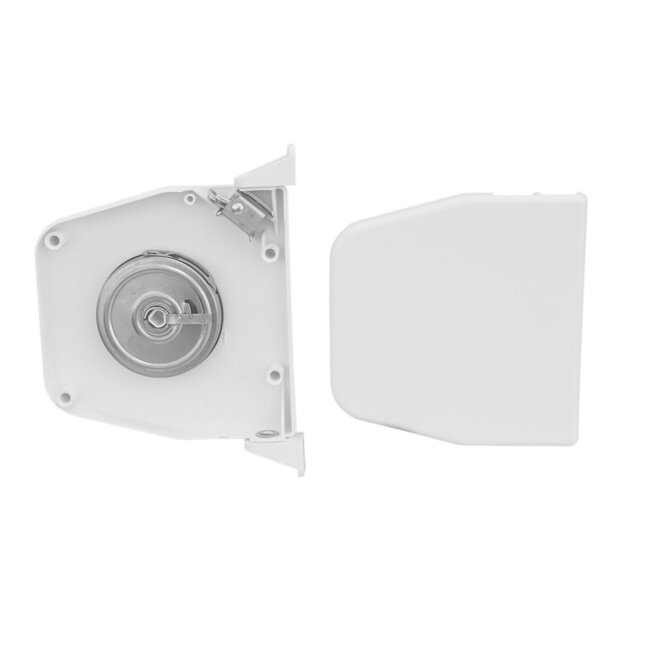

- housing is hinged
- the housing is 22 mm thick, 121 mm wide and 123 mm high
- centre-to-centre distance between mounting holes is 145 mm
- made with a plastic housing and metal interior
- suitable for ± 5 m straps (max 15 mm)
- theoretically suitable for roller shutters up to a height of ± 175 cm
- maximum roller shutter surface area 4 m2
- Strap length required is approximately shutter height x 2 + 1m
- For a roller shutter with a belt retarder, the required strap length is approximately 4x shutter height

Please keep in mind that a roller shutter is a custom-made product and the manufacturer of the roller shutter determines the exact specifications, so it is never possible to calculate 100% what length of Strap you need. To know the exact size of the Strap winder, you can measure the length of the strap that needs to be stored in the Strap winder. Take into account the age of the strap, an older strap may be fluffy/thicker, so it may be wise to choose a larger strap winder.

-- download here the assembly instructions for the Selve strap winder --
