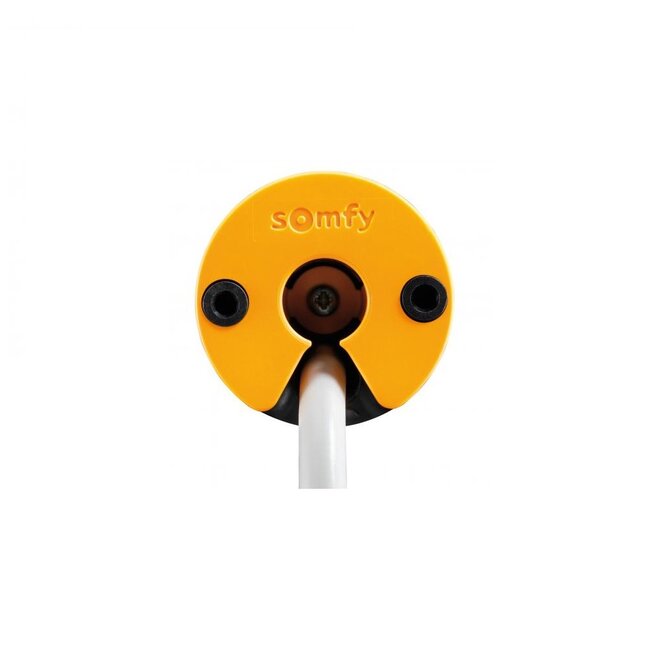

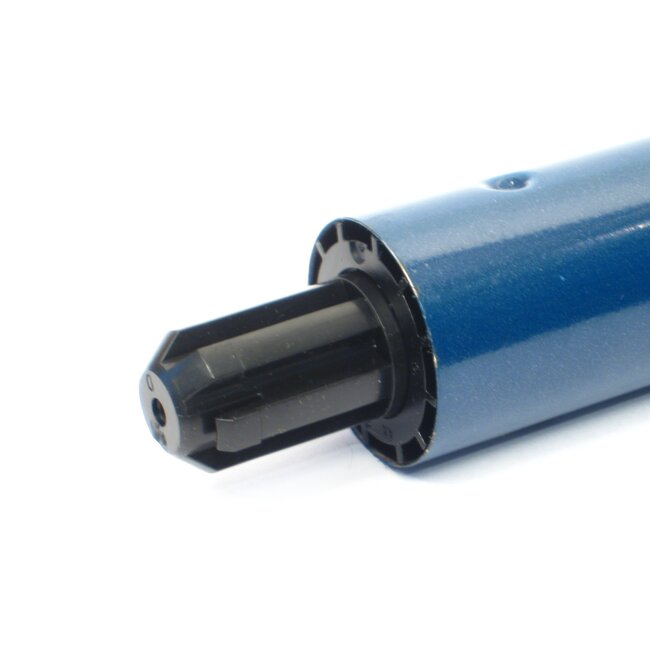

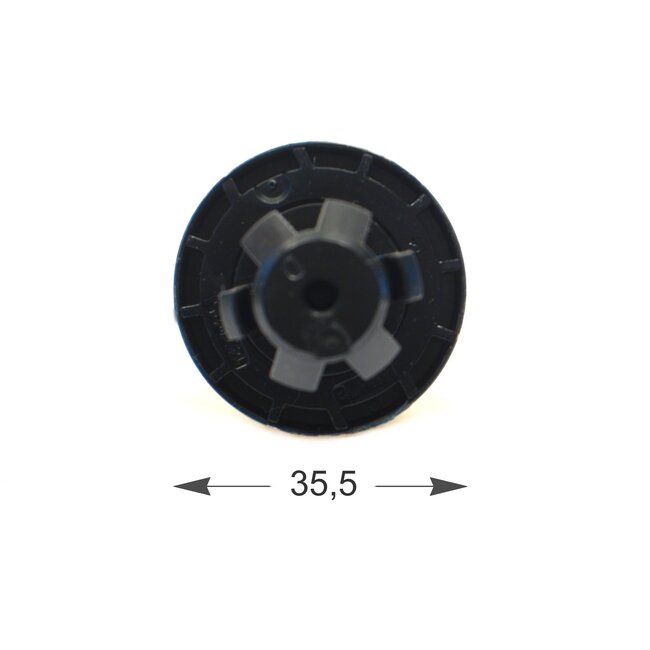

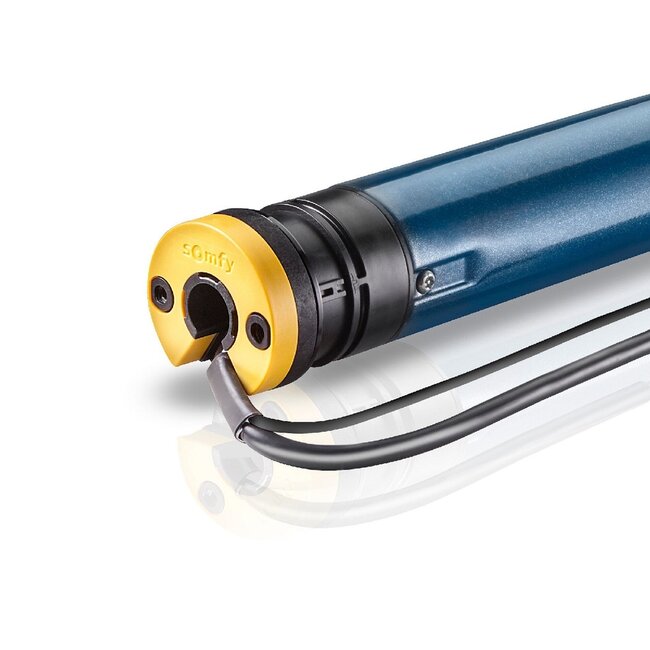

Somfy Sunea 40 Wirefree io, 12 VDC Solar screen motor

Somfy Sunea 40 Solar io motor is a tubular motor designed for operating screens, this motor is powered by means of a solar panel and a corresponding battery and is specifically intended for use in residential environments.

- Motor support and adapter set are not included.
- tube motor 12 Volt DC, with built-in high-frequency receiver
- available in the following models:
- Sunea 40 Wirefree io 6/18, force 8 Nm and speed 18 rpm
- Sunea 40 Wirefree io 10/12, force 10 Nm and speed 12 rpm
- with Y-cable, item 3626, a 2nd solar module can be connected
- with extension cable, item 3627, solar module can be mounted on e.g. overhang
- transmission range: 20 metres through 2 concrete walls
- simple wireless adjustment with Somfy io remote control
- compatible with all Somfy io controls
- setting of fixed upper and lower end position
- automatic intermediate position pre-programmed as standard to the daylight position
- integrated hindrance detection
- integrated soft-start and dust-stop function increases the lifetime of the tubular motor
- tubular motor can be put in sleep mode during transport
- one Sunea 40 WireFree II io tubular motor can be operated wirelessly with up to 12 transmitters
- cannot be used with relay boxes, standard switches and standard controllers
- not suitable for continuous use
- final adjustment capacity 200 revolutions, operating time limited to 4 min.
- for a complete autonomous system, you will need the following:
- Somfy Sunea 40 io WireFree screen motor
- Somfy adapter set to make the motor suitable for the right tube
- Somfy motor support for mounting the motor to the fixed part of the screen
- Somfy battery for Oximo 40 WireFree, article 3615
- Somfy solar panel for Oximo 40 WireFree, item 3616
- Somfy Handheld transmitter Somfy Situo io 1 or 5, item 4270 or 4275
- with a Tahoma Switch, article 4961 the Motor can be controlled via an app
- recommended wireless controllers
- Nina Timer io home control Remote control, item 2197
- Sunis WireFree II io autonomous sun sensor, item 2285
- Eolis WF (WireFree) io wireless wind sensor, item 4689

Adding a sun Sensor increases the number of cycles per day of the Motor, resulting in greater consumption of battery energy
