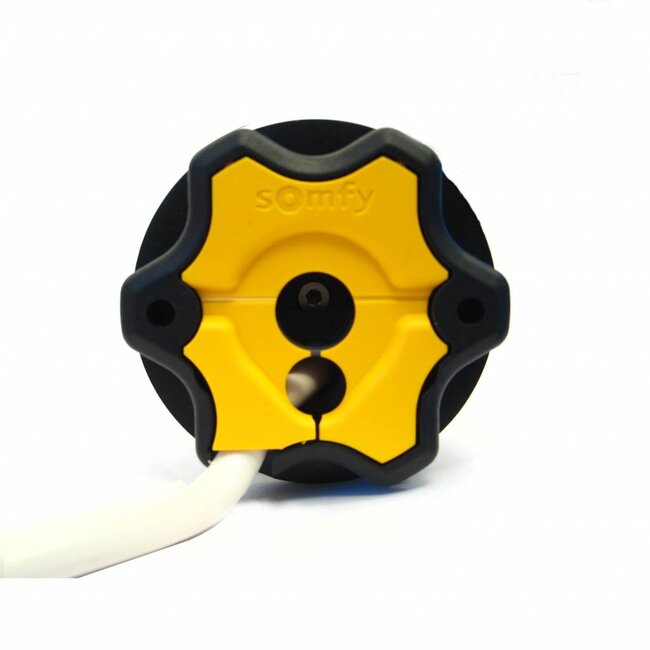

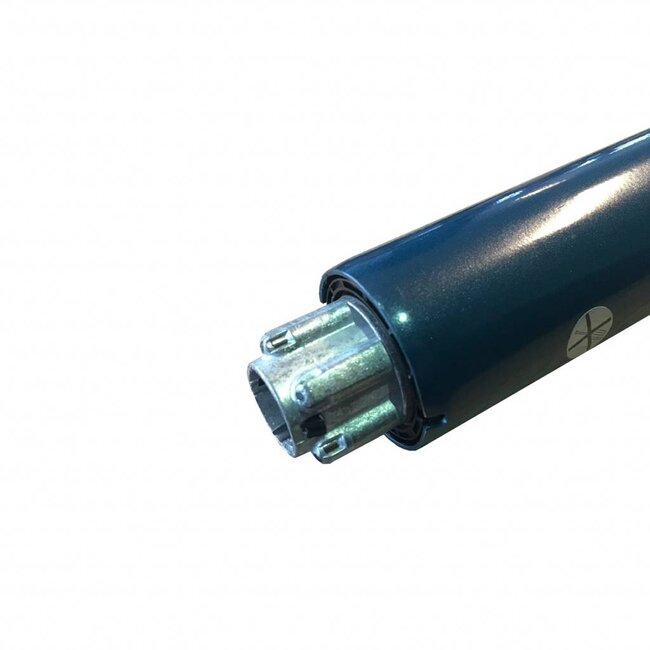

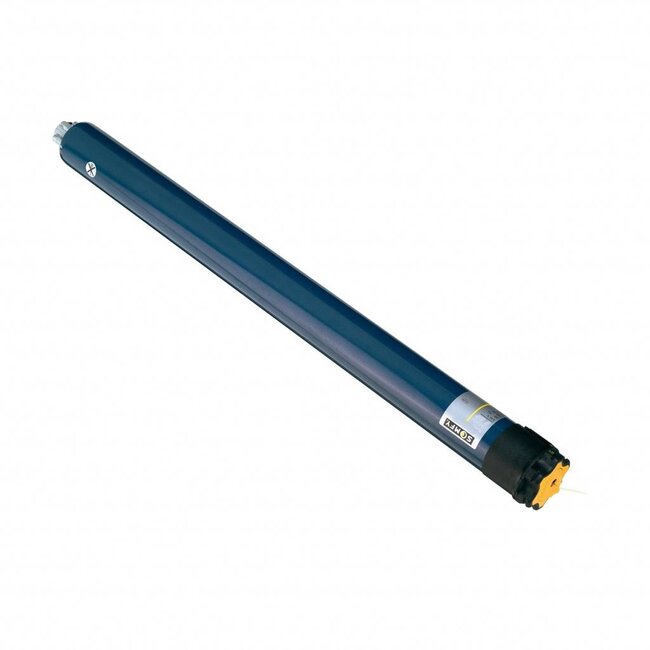

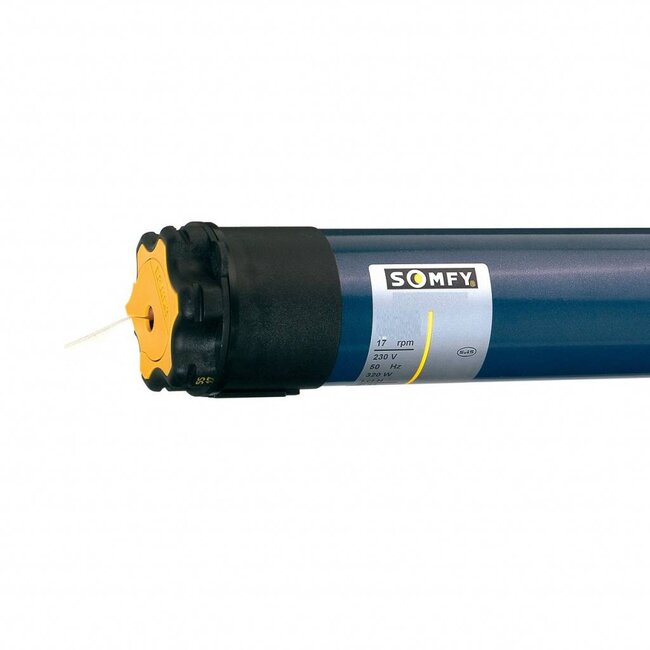

Somfy Sunea 60 io tubular motor for awnings
Somfy Sunea 60 io tube motor suitable for all different types of awnings, from standard Screen to cassette awnings and valances. If the upper end point is set automatically, this is corrected automatically. The motor's closing force can be set by the awning manufacturer.
- Supplied without motor support and adapter set
- Tubular motor 230 V/50 Hz with integrated receiver.
- Reception range: 20 metres through 2 concrete walls.
- Choice between automatic or manual adjustment of the upper end point.
- The tubular motor can be operated with up to 9 1-way remote control units.
- The tubular motor can be operated with an infinite number of 2-way remote controls.
- Perfect closure of the awning thanks to fabric stretch compensation.
- Simple wireless adjustment using 1-way remote control.
- Adjustable automatic intermediate position possible.
- Back impulse: re-tension the fabric after each lowering movement.
- Supplied as standard with a white 3-wire (VVF) cable, length 5 m.
- Not suitable for continuous use and in combination with free-running systems (ABS).
- Operating time limited to 3 min.
- Quick mounting due to unique clip system.
- Not applicable with relay boxes, standard switches and standard controllers.

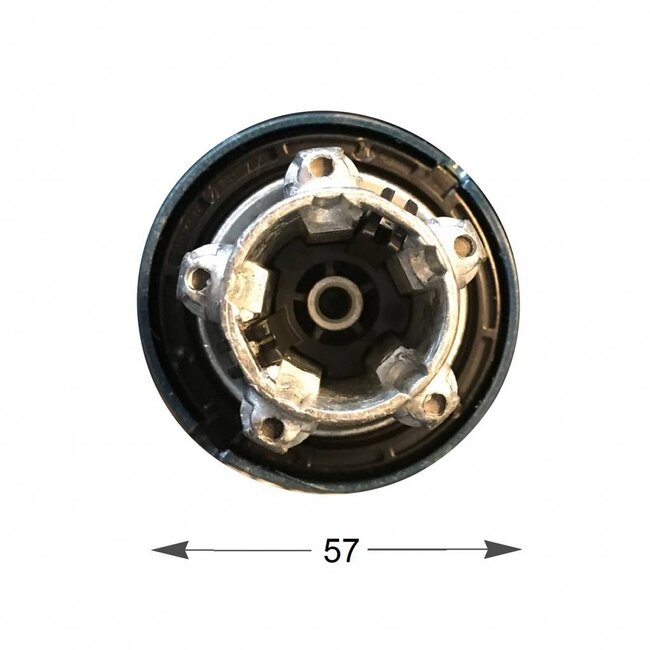

- Suitable for tube with a minimum diameter of Ø 60 mm.
- Available in strengths from 55 to 120 Nm.
- Available in 12 and 17 rpm, depending on type of tubular motor.
Somfy Sunea 60 io tube motor is available in the following models
- Sunea io 55/17 (55 Nm / 17 rpm)
- Sunea io 70/17 (70 Nm / 17 rpm)
- Sunea io 85/17 (85 Nm / 17 rpm)
- Sunea io 100/12 (100 Nm / 12 rpm)
- Sunea io 120/12 (120 Nm / 12 rpm)
io-homecontrol® - the intelligent solution for maximum home comfort
io-homecontrol® controls the whole house, i.e. not only Roller shutters, blinds and garage doors but also the front door, skylights, windows, heating, lighting and ventilation. The 2-way radio technology informs the user, is operationally reliable and becomes the new standard on the market.
Somfy io-homecontrol® tubular motors
These motors have all the advantages of existing RTS motors + the benefits offered by io-homecontrol. An extensive range of motors will be available in 2017. These motors can be controlled by any io-homecontrol® 1-way or 2-way control. We recommend programming a local control (1-way) per motor. On the 2-way remote controls or in the app, the consumer receives feedback on whether the requested command was executed or other information that makes it easy for him to understand the operation.
Frequency and safety
2-way io-homecontrol® products can communicate on 3 different frequencies between 868 and 870 MHz. If the frequency used is not free, it is automatically switched to another frequency. The 1-way products only communicate on the 868 MHz frequency. Power failure does not affect stored data.
Flexibility
The 1-way remote controls are designed to control one Motor. The 2-way controls are group or central controls where the consumer receives feedback via an LED, via pictograms, via text or via sound. Sun and wind sensors operate the products automatically. Automatic operation can be easily blocked using the Smoove 1 A/M io, a Situo 5 VAR A/M io or in the app.
