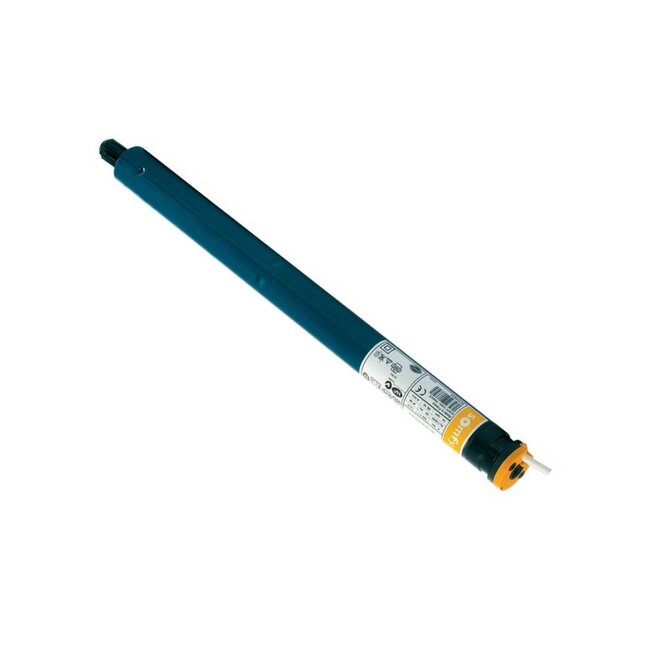

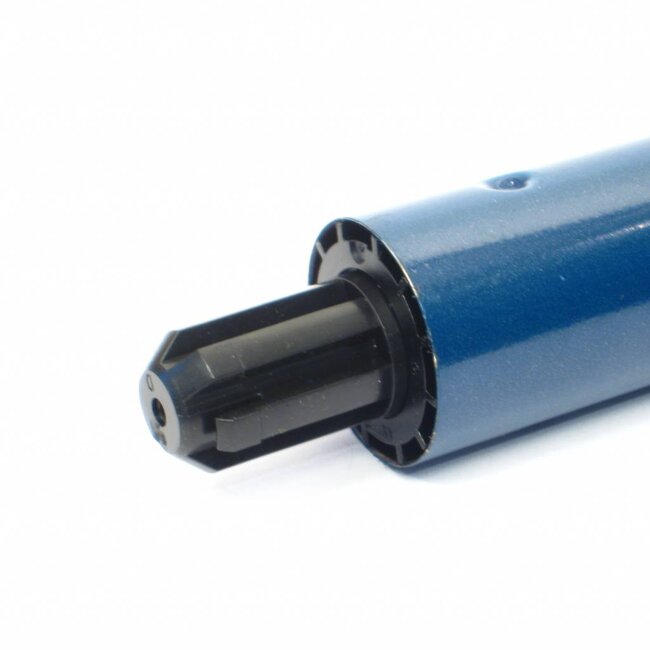

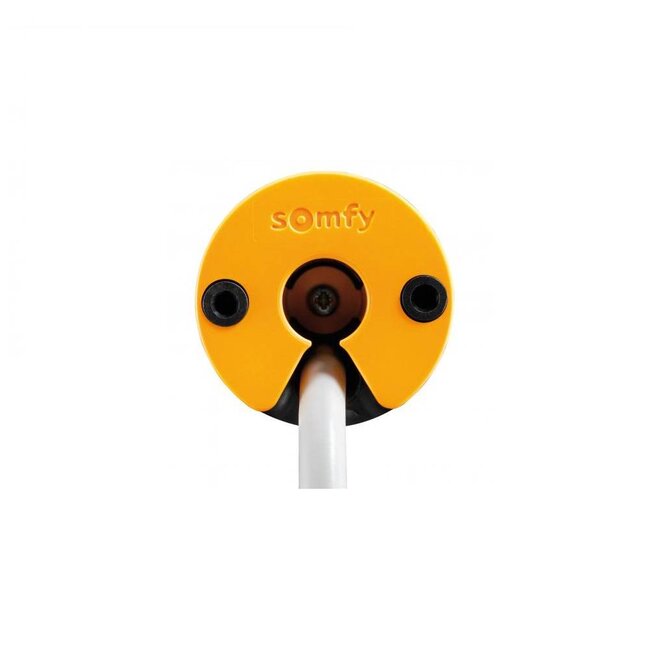

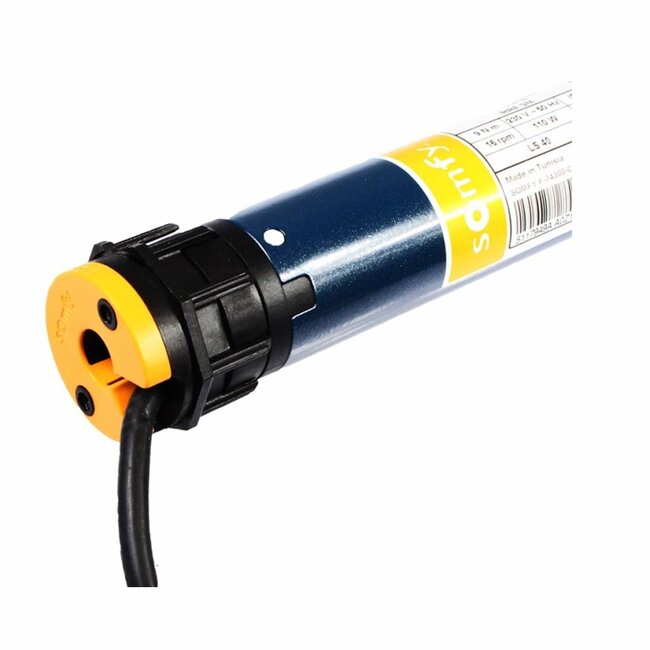

Somfy Sunea screen 40 io tubular motor
Somfy Sunea screen 40 io tubular motor suitable for all different types of awnings, from standard screens to cassette awnings and valances. If the upper end point is set automatically, this is corrected automatically. The closing force of the Motor can be set by the awning manufacturer.
- Supplied without motor support and adapter set
- Tubular motor 230 V/50 Hz with integrated receiver.
- Reception range: 20 metres through 2 concrete walls.
- Choice between automatic or manual adjustment of the upper end point.
- The tube motor can be operated with up to 9 1-way remote control units.
- The tubular motor can be operated with an infinite number of 2-way remote controls.
- Perfect closure of the awning thanks to fabric stretch compensation.
- Simple wireless adjustment using 1-way remote control.
- Adjustable automatic intermediate position possible.
- Back impulse: re-tension the fabric after each lowering movement.
- Supplied as standard with a white 3-wire (VVF) cable, length 5 m.
- Not suitable for continuous use and in combination with free-running systems (ABS).
- Operating time limited to 3 min.
- Quick mounting due to unique clip system.
- Not applicable with relay boxes, standard switches and standard controllers.
- Available in 3 to 13 Nm and 10 to 30 rpm, depending on type of tubular motor.

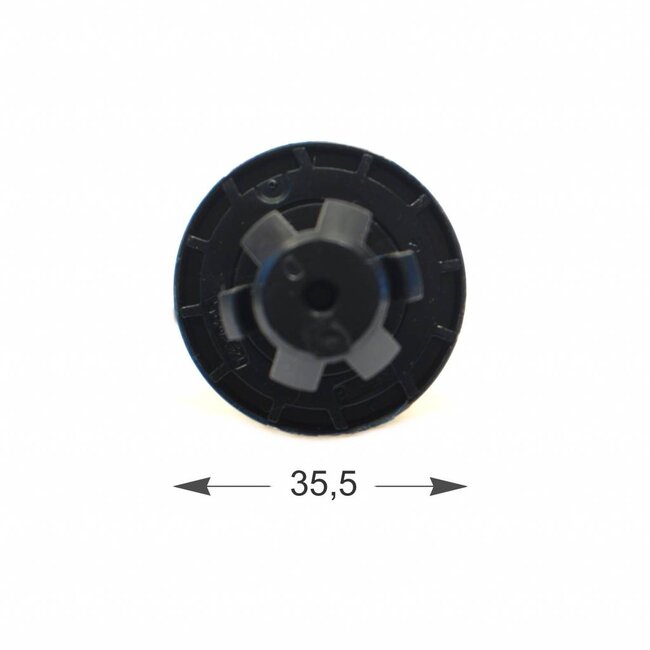

- Suitable for tube with a minimum diameter of Ø 40 mm.
Somfy Sunea 40 screen io is available in the following models
- Tube motor Sunea 40 screen io 3/30 (3 Nm / 30 rpm)
- Tube motor Sunea 40 screen io 4/16 (4 Nm / 16 rpm)
- Tubular motor Sunea 40 screen io 9/16 (9 Nm / 16 rpm)
- Tubular motor Sunea 40 screen io 13/10 (13 Nm / 10 rpm)
io-homecontrol® - the intelligent solution for maximum home comfort
io-homecontrol® controls the entire house, i.e. not only Roller shutters, blinds and garage doors but also the front door, skylights, windows, heating, lighting and ventilation. The 2-way radio technology informs the user, is operationally reliable and becomes the new standard on the market.
Somfy io-homecontrol® tubular motors
These motors have all the advantages of existing RTS motors + the benefits offered by io-homecontrol. An extensive range of motors will be available in 2017. These motors can be controlled by any io-homecontrol® 1-way or 2-way control. We recommend programming a local control (1-way) per motor. On the 2-way remote controls or in the app, the consumer receives feedback on whether the requested command was executed or other information that makes it easy for him to understand the operation.
Frequency and safety
2-way io-homecontrol® products can communicate on 3 different frequencies between 868 and 870 MHz. If the frequency used is not free, it is automatically switched to another frequency. The 1-way products only communicate on the 868 MHz frequency. Power failure does not affect stored data.
Flexibility
The 1-way remote controls are designed to control one Motor. The 2-way controls are group or central controls where the consumer receives feedback via an LED, via pictograms, via text or via sound. Sun and wind sensors operate the products automatically. Automatic operation can be easily blocked using the Smoove 1 A/M io, a Situo 5 VAR A/M io or in the app.
