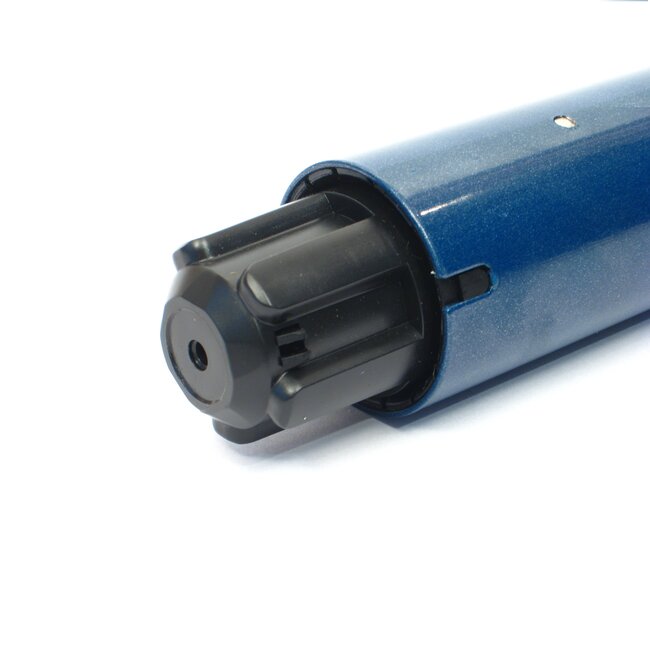

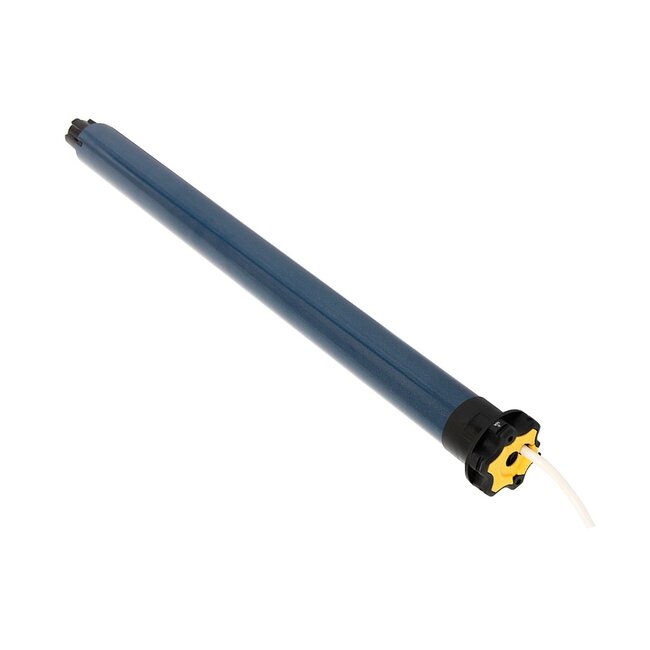

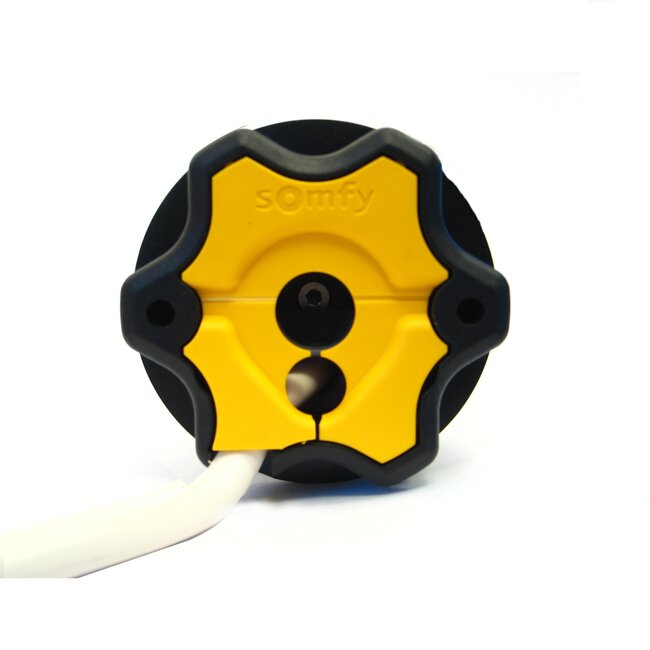

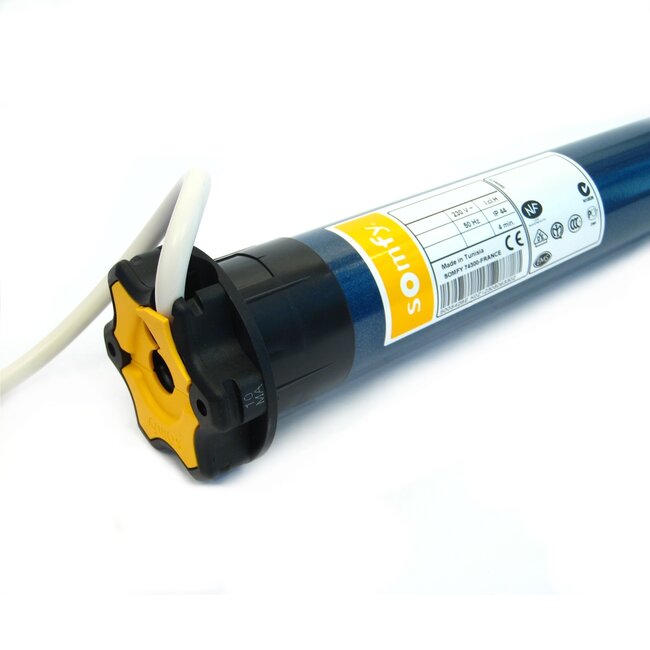

Somfy Sunilus (screen) 50 io for awnings
The Somfy Sunilus (screen) tubular motor for screens, drop-down screens and awnings where there is an enclosure with insufficient mechanical stop, the so-called open systems. The upper and lower end points are set manually by adjusting the tubular motor, automatic corrections are therefore not possible.
- Supplied without motor support and adapter set
- Tubular motor 230 V/50 Hz with integrated receiver.
- Reception range: 20 metres through 2 concrete walls.
- Choice between automatic or manual adjustment of the upper end point.
- The tubular motor can be operated with up to 9 1-way remote control units.
- The tubular motor can be operated with an infinite number of 2-way remote controls.
- Perfect closure of the awning thanks to fabric stretch compensation.
- Simple wireless adjustment using 1-way remote control.
- Adjustable automatic intermediate position possible.
- Back impulse: re-tension the fabric after each lowering movement.
- Supplied as standard with a white 3-wire (VVF) cable, length 5 m.
- Not suitable for continuous use and in combination with free-running systems (ABS).
- Operating time limited to 3 min.
- Quick mounting due to unique clip system.
- Not applicable with relay boxes, standard switches and standard controllers.
- Suitable for pipe with a minimum diameter of Ø 50 mm.
- Available in strengths from 20 to 50 Nm.
- Available in 12 and 17 rpm, depending on type of tubular motor.
Somfy Sunea 50 io tube motor is available in the following models
- Sunea io 20/17 (20 Nm / 17 rpm)
- Sunea io 25/17 (25 Nm / 17 rpm)
- Sunea io 30/17 (30 Nm / 17 rpm)
- Sunea io 35/17 (35 Nm / 17 rpm)
- Sunea io 40/17 (40 Nm / 17 rpm)
- Sunea io 50/12 (50 Nm / 12 rpm)
io-homecontrol® - the intelligent solution for maximum home comfort
io-homecontrol® controls the entire house, i.e. not only Roller shutters, blinds and garage doors but also the front door, skylights, windows, heating, lighting and ventilation. The 2-way radio technology informs the user, is operationally reliable and becomes the new standard on the market.
Somfy io-homecontrol® tubular motors
These motors have all the advantages of existing RTS motors + the benefits offered by io-homecontrol. An extensive range of motors will be available in 2017. These motors can be controlled by any io-homecontrol® 1-way or 2-way control. We recommend programming a local control (1-way) per motor. On the 2-way remote controls or in the app, the consumer receives feedback on whether the requested command was executed or other information that makes it easy for him to understand the operation.
Frequency and safety
2-way io-homecontrol® products can communicate on 3 different frequencies between 868 and 870 MHz. If the frequency used is not free, it is automatically switched to another frequency. The 1-way products only communicate on the 868 MHz frequency. Power failure does not affect stored data.
Flexibility
The 1-way remote controls are designed to control one Motor. The 2-way controls are group or central controls where the consumer receives feedback via an LED, via pictograms, via text or via sound. Sun and wind sensors operate the products automatically. Automatic operation can be easily blocked using the Smoove 1 A/M io, a Situo 5 VAR A/M io or in the app.
