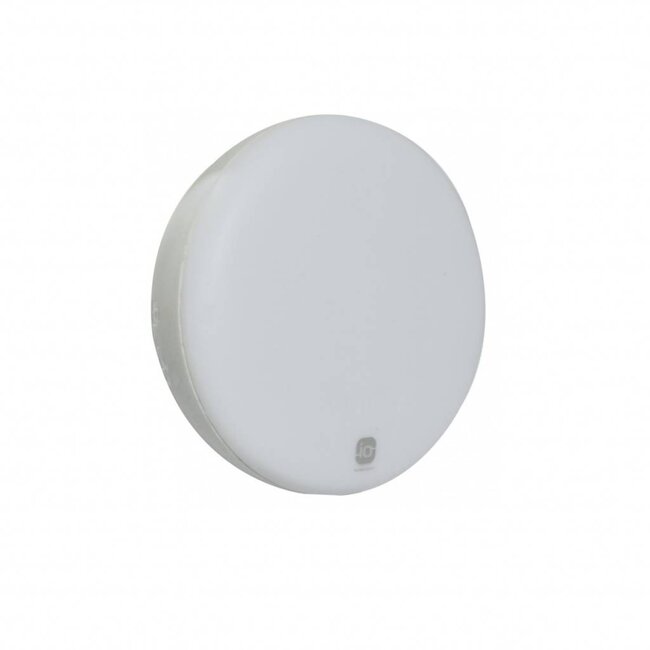

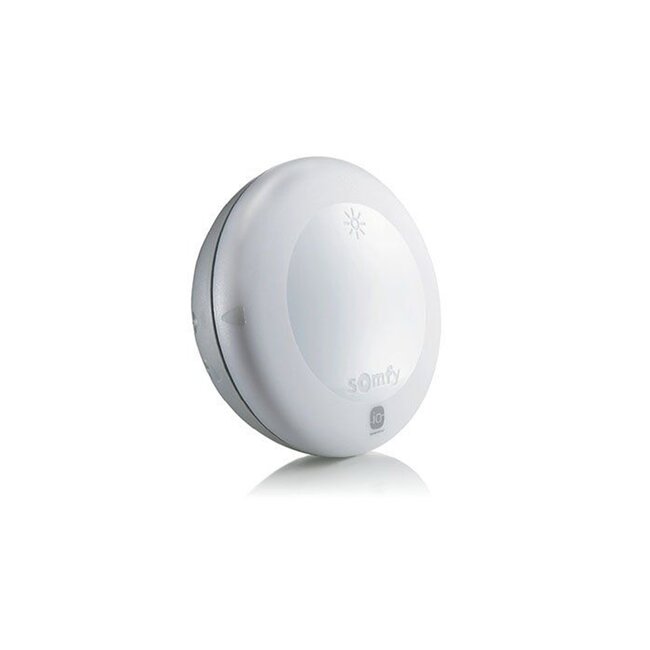

Somfy Sunis WireFree io sun sensor

The Somfy WireFree io Sun Sensor is a standalone sensor used to control io-homecontrol compatible devices. This Sensor can be combined with all tubular motors equipped with a built-in Somfy io receiver. It automatically controls the raising and lowering of Roller shutters or blinds based on the measured intensity of sunlight.

- suitable for all awnings and roller shutters equipped with io-homecontrol® technology
- compact housing design
- not compatible with the Easy Sun io transmitter
- power supply via 2 x AA batteries (included)
- expandable with the Eolis WireFree io
- size Ø 78 mm, thickness 37 mm
- frequency 868 MHz
- io-homecontrol technology
- protection rating IP34

Direct control of the Somfy io tubular motor
- the Sensor is then programmed directly on the Motor
- threshold setting is performed on the Sensor
- switching the sun sensor on and off is done via the Auto/Manu Switch
on the Smoove 1 A/M io or on the Situo 5 VAR A/M io
- choice to send the sun blind to the lower end point (default
setting) or to the intermediate position
- not suitable for use with Roller shutters in this configuration.
- no feedback of measured brightness

The Somfy WireFree io sun sensor in combination with the TaHoma Switch
- also suitable for previous Tahoma or Connexoon io
- control Somfy io tube motors and receivers via scenarios based on measured light intensity
