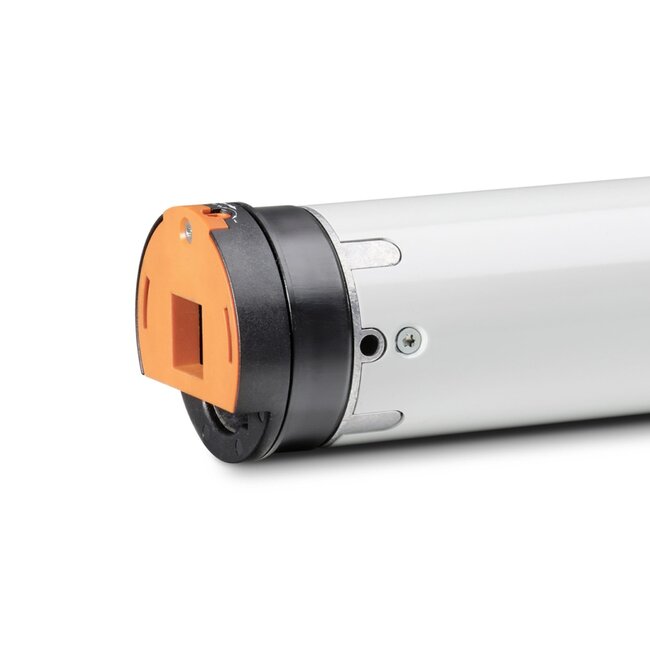

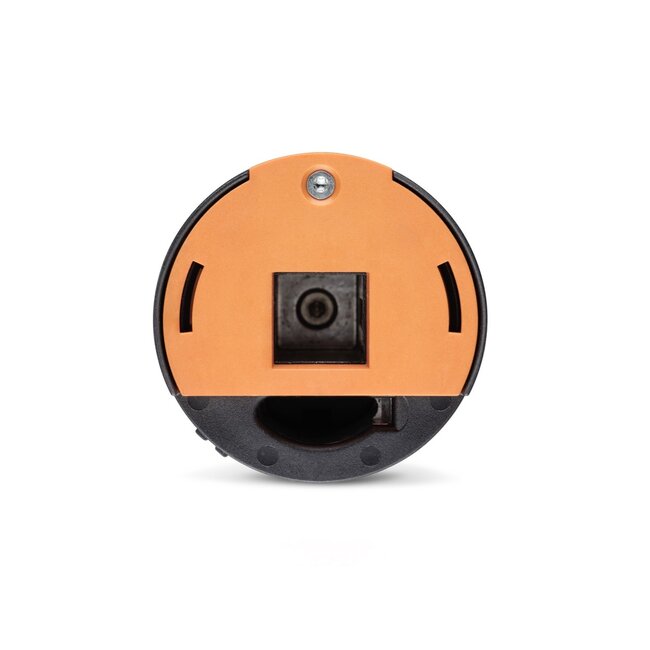

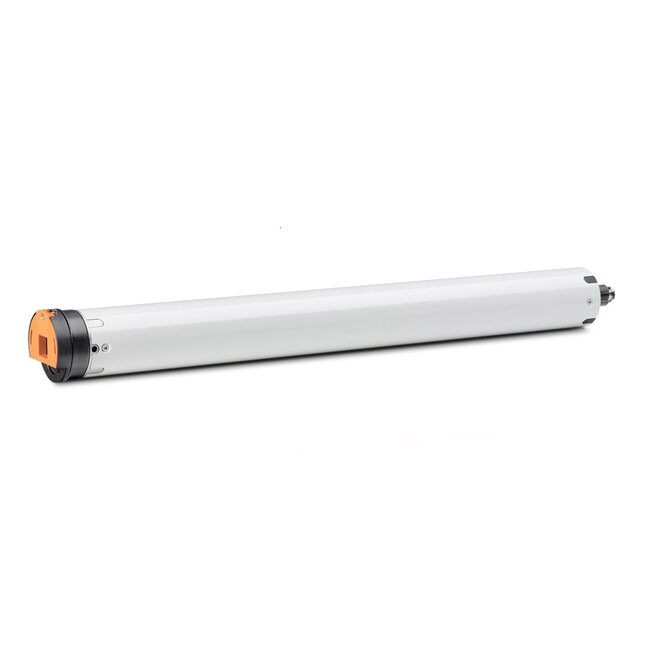

Elero VariEco L tubular motor

The tubular motor of the VariEco L series, with a diameter of 63 mm and a length from 563 mm, is suitable for roller shutters and sun blinds. These drives are available from 40 to 120 Nm, in 11 or 14 rpm. The tubular motor has a mechanical final adjustment.

- suitable for roller shutters and sun blinds
- Supplied excluding motor support and adaptation set
- tubular motor with a diameter of Ø 63
- mechanical final adjustment
- tubular motor 230 V/50 Hz
- speed depending on power in 11 or 14 rpm
- available in 40 to 120 Nm
- range of the limit switches 40 turns
- protection class IP44
- 4-core white cable with a length of 2 meters
- tubular motor fits in a tube with a minimum diameter of Ø 78 mm
- end positions can be set on the motor head
- parallel connection not possible
- not suitable for continuous use

- Elero VariEco L 40 - 40 Nm - 14 rpm - 333 Watt - length 563 mm
- Elero VariEco L 60 - 60 Nm - 14 rpm - 356 Watt - length 563 mm
- Elero VariEco L 80 - 80 Nm - 14 rpm - 415 Watt - length 593 mm
- Elero VariEco L 100 - 100 Nm - 11 rpm - 390 Watt - length 593 mm
- Elero VariEco L 120 - 120 Nm - 11 rpm - 460 Watt - length 593 mm
