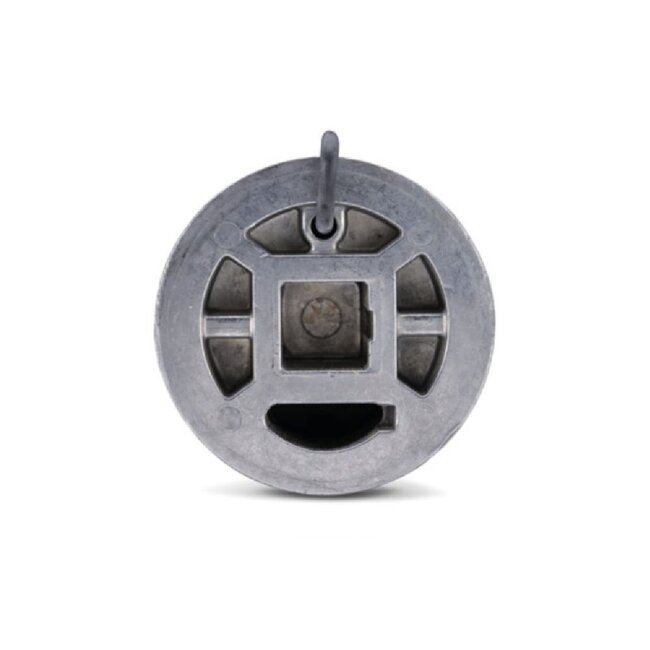

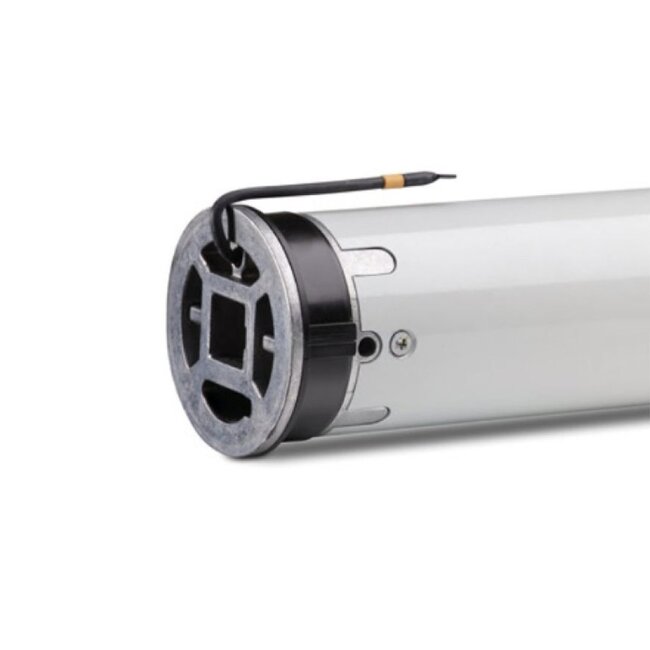

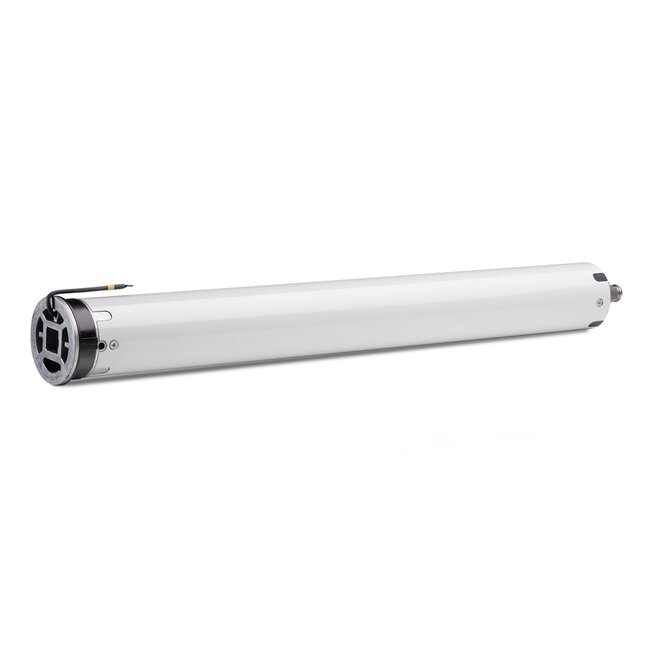

Elero SunTop L-868 RH tubular motor

With a diameter of 63 mm and a length from 563 mm, the SunTop L-series tubular motors are suitable for awnings. These drives are available from 40 to 120 Nm, in 11 or 14 rpm. The tubular motor is equipped with an integrated radio receiver. Drives have a soft brake, inelligent force measurement and are suitable for low-noise movement of the awning. All drives can be installed and adjusted in a time-saving and simple manner.

- suitable for blinds
- Supplied without motor support and adapter set

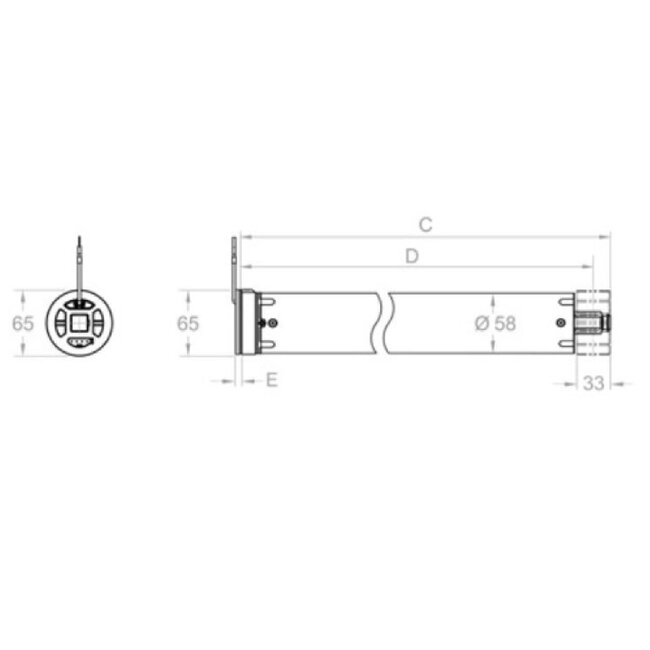

- tubular motor with a diameter of Ø 55 mm
- electronic final adjustment with soft-stop function
- integrated 868 MHz bi-directional radio receiver
- intelligent power measurement
- Tubular motor 230 V/50 Hz
- force-dependent speed in 11 or 14 rpm
- available in 40 to 120 Nm
- limit switch range 40 rpm
- protection class IP44
- 4-core white cable with a length of 2 metres
- tubular motor fits into tube with a minimum diameter of Ø 78 mm
- blocking detection up/down
- blocking detection in upward direction with repeat function
- blocking detection in downward direction with repeat function
- relief at end positions can be activated
- parallel switching possible
- Not suitable for continuous operation

- Elero SunTop L-868 40 SH - 40 Nm - 14 rpm - 333 Watt - length 563 mm
- Elero SunTop L-868 60 SH - 60 Nm - 14 rpm - 356 Watt - length 563 mm
- Elero SunTop L-868 80 SH - 80 Nm - 14 rpm - 415 Watt - length 593 mm
- Elero SunTop L-868 100 SH - 100 Nm - 11 rpm - 390 Watt - length 593 mm
- Elero SunTop L-868 120 SH - 120 Nm - 11 rpm - 460 Watt - length 593 mm
