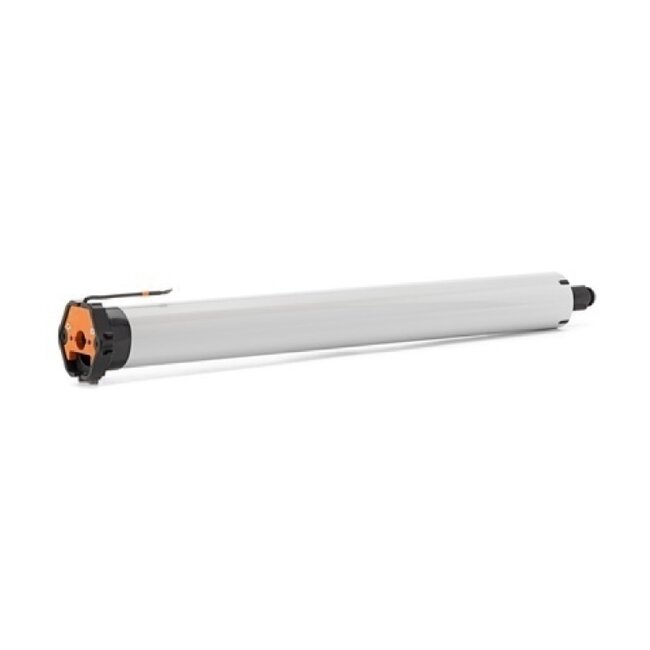

Elero SunTop M-868 tubular motor

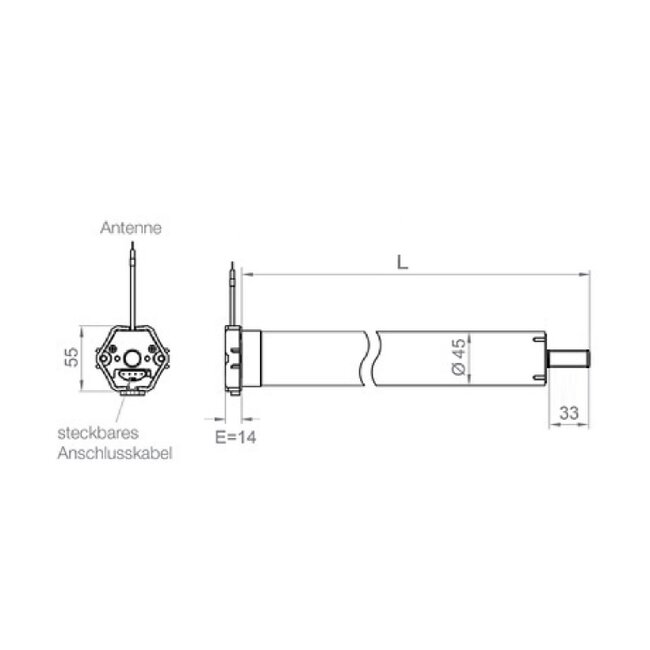

With a diameter of 45 mm and a length starting at 449 mm, the SunTop M-series tubular motors are suitable for awnings, screens and roller blinds. These drives are available from 7 to 50 Nm and, depending on the force, in 14 or 23 rpm. The tubular motor is equipped with an integrated radio receiver. Drives of up to 20 Nm have a soft brake and are suitable for low-noise blinds movement. All drives can be installed and adjusted in a time-saving and simple manner using the Handheld transmitter. With adapter plate, you can reuse the already installed motor support of an old Elero T9.

- tubular motor specifically for sun blinds
- Supplied without motor support and adapter set
- tubular motor with a diameter of Ø 45
- electronic final adjustment with soft-stop function
- integrated 868 MHz bi-directional radio receiver
- intelligent power measurement
- tubular motor 230 V/50 Hz
- speed depending on force 14 or 23 rpm
- available in 7 to 50 Nm
- limit switch range 40 rpm
- protection class IP44
- 4-core white cable with a length of 2 metres
- tubular motor fits into tube with a minimum diameter of Ø 50 mm
- blocking detection up/down
- blocking detection in upward direction with repeat function
- blocking detection in downward direction with repeat function
- relief at end positions can be activated
- parallel switching possible
- not suitable for continuous operation

Elero SunTop M-868 is available in the following versions
- Elero SunTop M-868 7 - 7 Nm - 23 rpm - 140 Watt - length 449 mm
- Elero SunTop M-868 10 - 10 Nm - 14 rpm - 140 Watt - length 449 mm
- Elero SunTop M-868 12 - 12 Nm - 23 rpm - 200 Watt - length 509 mm
- Elero SunTop M-868 20 - 20 Nm - 14 rpm - 200 Watt - length 509 mm
- Elero SunTop M-868 30 - 30 Nm - 14 rpm - 200 Watt - length 499 mm
- Elero SunTop M-868 40 - 40 Nm - 14 rpm - 270 Watt - length 529 mm
- Elero SunTop M-868 50 - 50 Nm - 14 rpm - 300 Watt - length 529 mm
