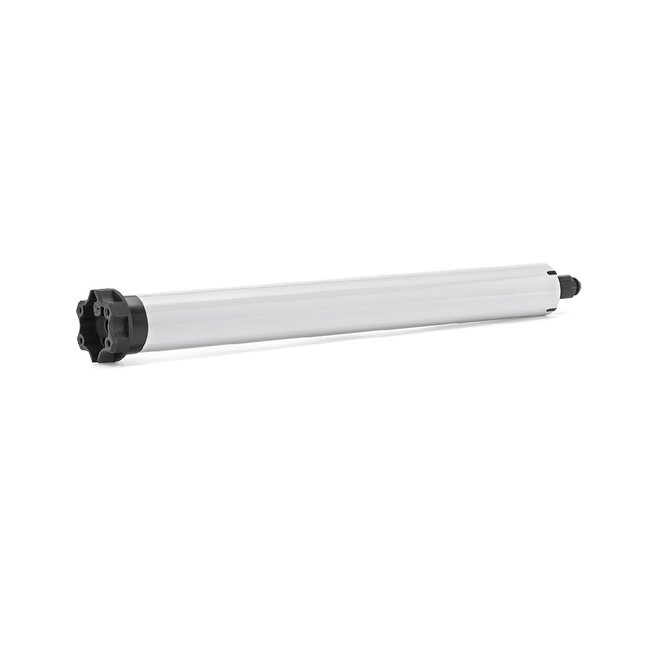

Elero SunTop M tubular motor

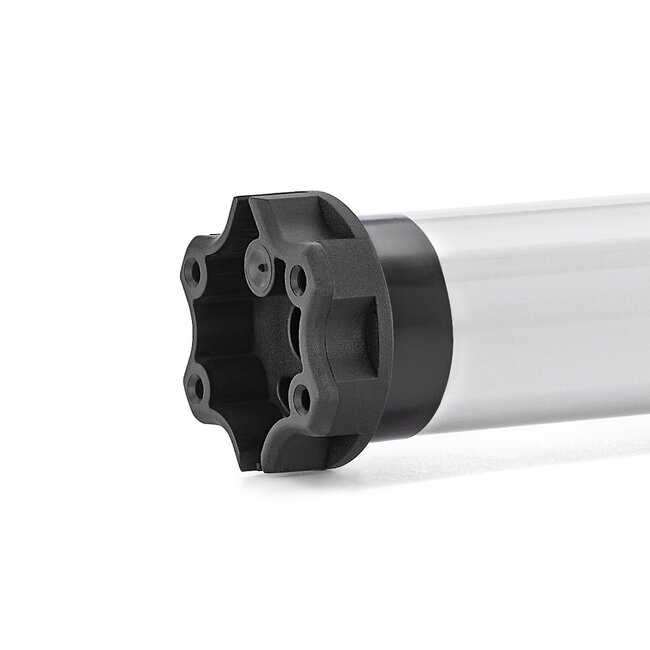

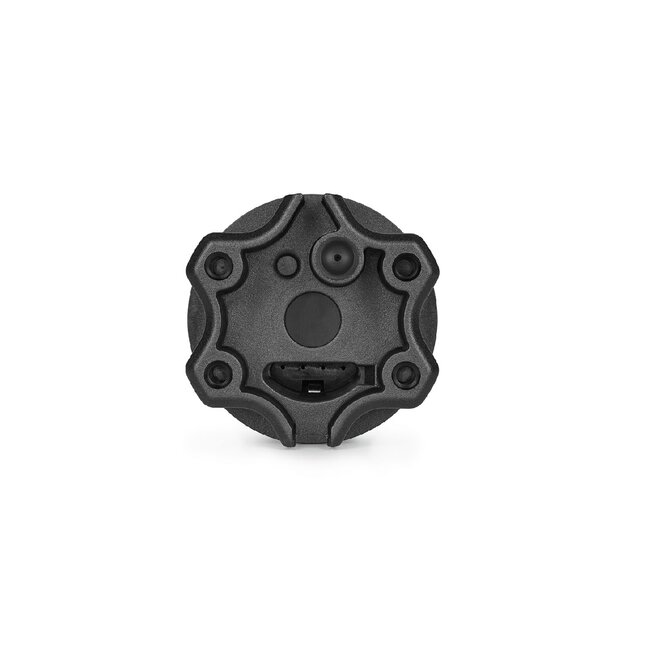

With a diameter of 45 mm and a length from 449 mm, the tube motor of the SunTop M series is suitable for awnings, screens and roller blinds. These drives are available from 10 to 50 Nm and 14 rpm. Drives up to 20 Nm have a soft brake and are suitable for low-noise movement of the awning. All drives can be installed and adjusted in a time-saving and simple manner. These SH series tubular motors (motor bearing with star-shaped head) fit motor bearings from various other manufacturers, among others.

- suitable for blinds and roller shutters
- supplied without motor support and adapter set
- tubular motor with a diameter of Ø 45
- electronic final adjustment with soft-stop function
- intelligent force measurement
- tubular motor 230 V/50 Hz
- speed 14 rpm
- available in 10 to 50 Nm
- limit switch range 40 rpm
- protection class IP44
- 4-core white cable with a length of 2 metres
- tubular motor fits into pipe with a minimum diameter of Ø 50 mm
- blocking detection up/down
- blocking detection in upward direction with repeat function
- blocking detection in downward direction with repeat function
- relief at end positions can be activated
- end positions can be set via mounting cable
- parallel switching possible
- Not suitable for continuous operation

- Elero SunTop M 10 SH - 10 Nm - 14 rpm - 140 Watt - length 449 mm
- Elero SunTop M 20 SH - 20 Nm - 14 rpm - 200 Watt - length 509 mm
- Elero SunTop M 30 SH - 30 Nm - 14 rpm - 200 Watt - length 499 mm
- Elero SunTop M 40 SH - 40 Nm - 14 rpm - 270 Watt - length 529 mm
- Elero SunTop M 50 SH - 50 Nm - 14 rpm - 300 Watt - length 529 mm
