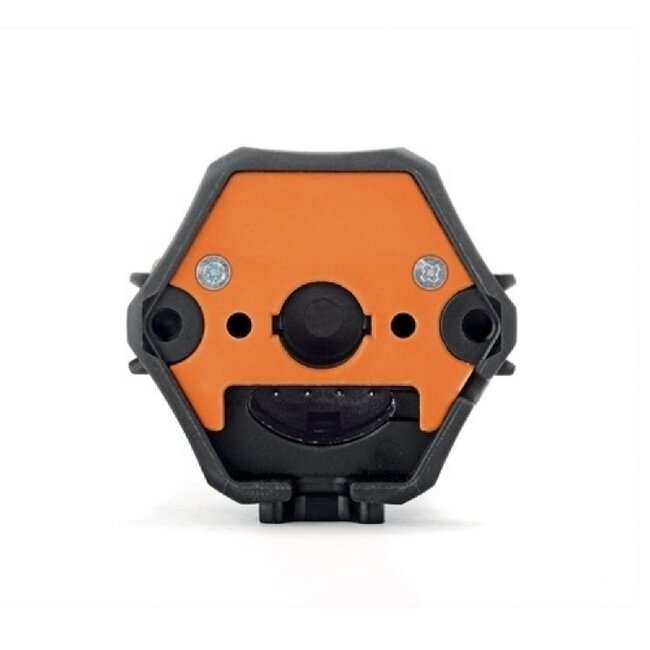

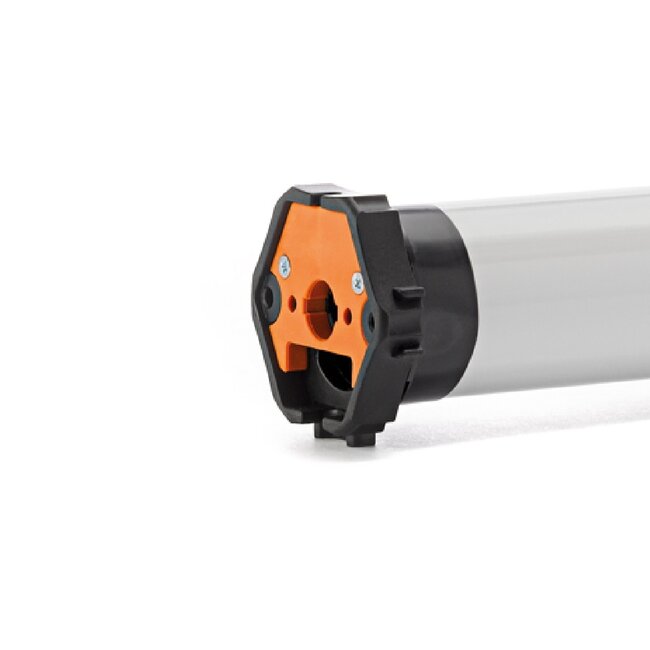

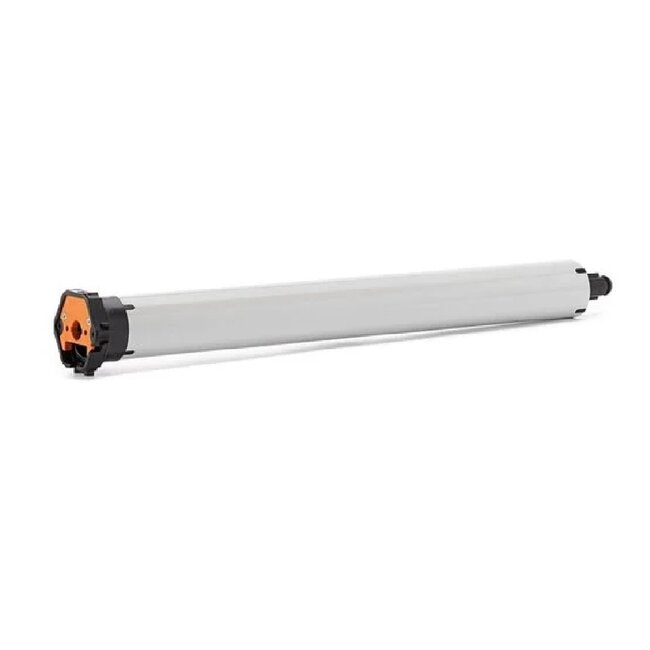

Elero SunTop M tubular motor

With a diameter of 45 mm and a length from 449 mm, the SunTop M series tubular motors are suitable for awnings, screens and roller blinds. These drives are available from 7 to 50 Nm and, depending on the force, 14 or 23 rpm. Drives up to 20 Nm have a soft brake and are suitable for low-noise movement of the awning. The adjustment of the end positions is done with an adjustment cable, available separately, so that the motor is easy to adjust even when the awning is completely closed. With adapter plate, you can reuse the already installed motor support of an old Elero T9.

- tubular motor specifically for blinds
- Supplied without motor support and adapter set
- tubular motor with a diameter of Ø 45
- electronic end position adjustment with soft-stop function
- end positions must be set via mounting cable (available separately)
- intelligent force measurement
- tubular motor 230 V/50 Hz
- speed depending on force 14 or 23 rpm
- available in 7 to 50 Nm
- limit switch range 40 rpm
- protection class IP44
- 4-core white cable with a length of 2 metres
- tubular motor fits in tube with a minimum diameter of Ø 50 mm
- blocking detection up/down
- blocking detection in upward direction with repeat function
- blocking detection in downward direction with repeat function
- relief at end positions can be activated
- parallel switching possible
- Not suitable for continuous operation

- Elero SunTop M 7 SH - 7 Nm - 23 rpm - 140 Watt - length 449 mm
- Elero SunTop M 10 SH - 10 Nm - 14 rpm - 140 Watt - length 449 mm
- Elero SunTop M 12 SH - 12 Nm - 23 rpm - 200 Watt - length 509 mm
- Elero SunTop M 20 SH - 20 Nm - 14 rpm - 200 Watt - length 509 mm
- Elero SunTop M 30 SH - 30 Nm - 14 rpm - 200 Watt - length 499 mm
- Elero SunTop M 40 SH - 40 Nm - 14 rpm - 270 Watt - length 529 mm
- Elero SunTop M 50 SH - 50 Nm - 14 rpm - 300 Watt - length 529 mm
