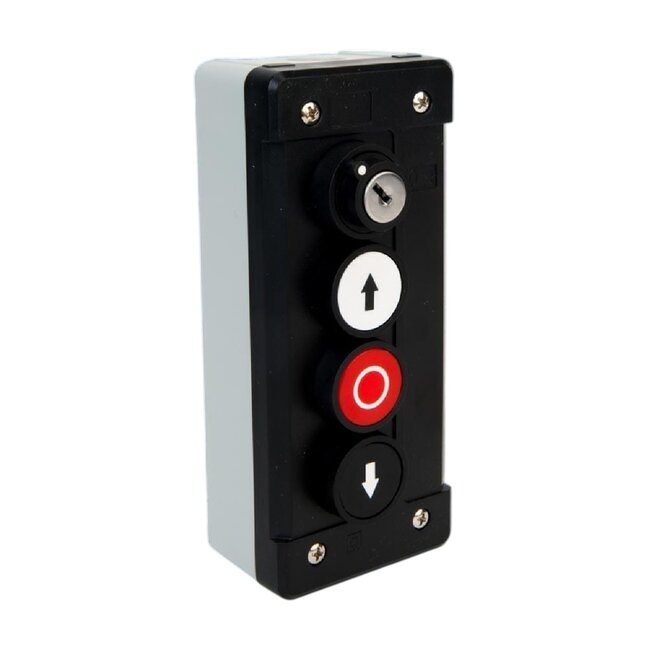

Pushbutton switch KDT 4N

- surface-mounted pushbutton switch
- suitable for awnings, screens, roller shutters or overhead doors
- splash-proof, IP65
- up-stop-down control
- red mushroom stop button
- lockable with key

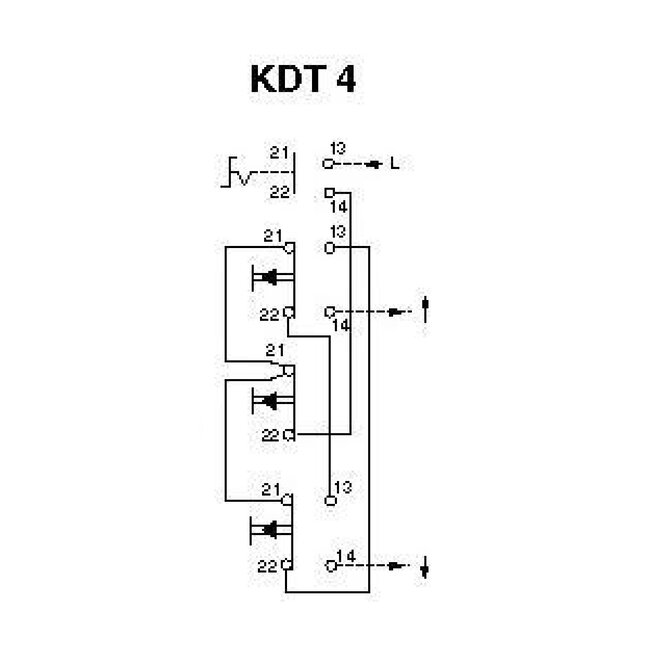

- with 3x NC and 2x NO contact
- Ue = 240 V AC (operating voltage)
- Ie = 5 Ampere (rated current)
- impact-proof plastic
- colour grey

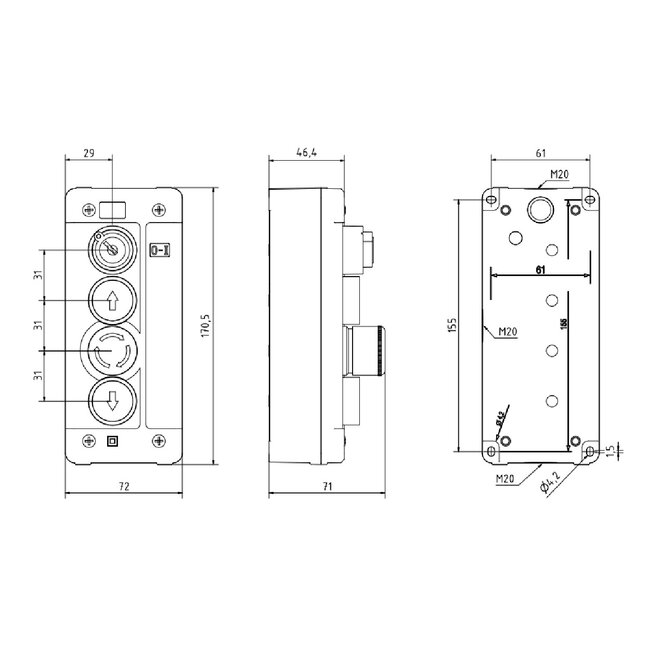

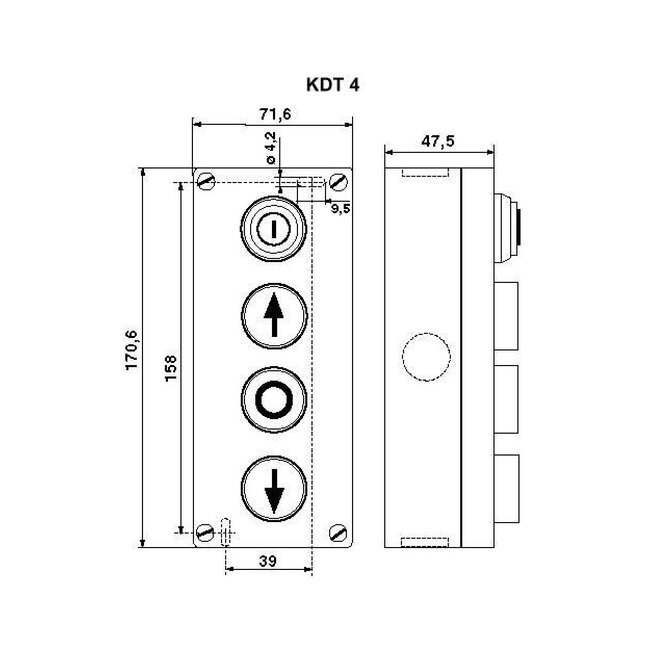

- Dimensions 72 x 171 x 48 mm (wxhxd)
