T3.5 Hz 02 tubular motor for screens and roller shutters
169,95 Incl. tax
Add to cart
T3.5 Hz 02 tubular motor for screens and roller shutters
Simu

T3.5 Hz 02 tubular motor for screens and roller shutters

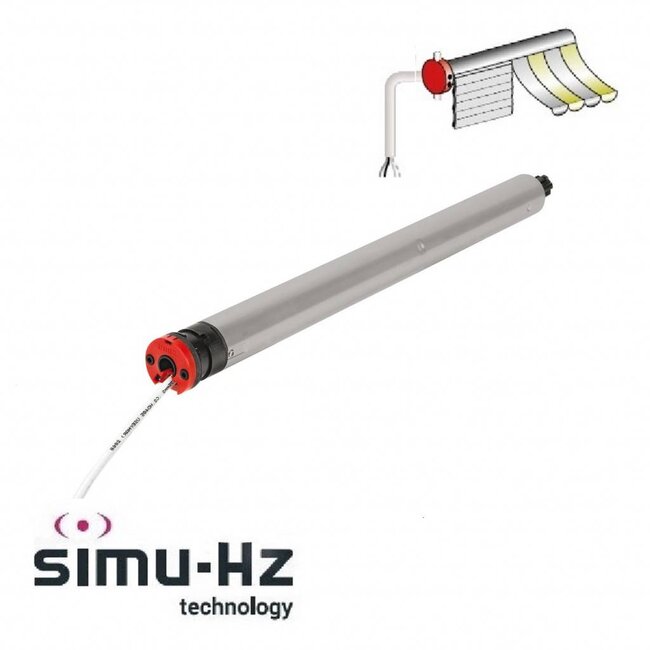

The Simu T3.5 Hz 02 tubular motor with integrated receiver that can be operated with a Simu Hz transmitter. Motor has a speed of 10 to 30 rpm. Can be used for blinds and roller shutters. The adjustment is electronically adjustable. In strengths from 3 to Read more.

169,95 Incl. tax
In stock
Je hebt nog 00:00:00 uur om je bestelling af te ronden.
  • Affiliated to Home shopping guarantee
  • Fast delivery Delivery within 2 working days
  • Free shipping when spending €100 (in NL)

Product description

Tubular motor with integrated receiver for sun blinds and roller shutters

- Supplied without motor support and adapter set
- integrated receiver
- power supply 230 V/50 Hz
- speed 30 rpm at 3 Nm, 16 rpm at 4 & 9 Nm, 10 rpm at 13 Nm
- electronic final adjustment via handheld transmitter
- favourite intermediate position adjustable
- motor is not equipped with obstacle detection

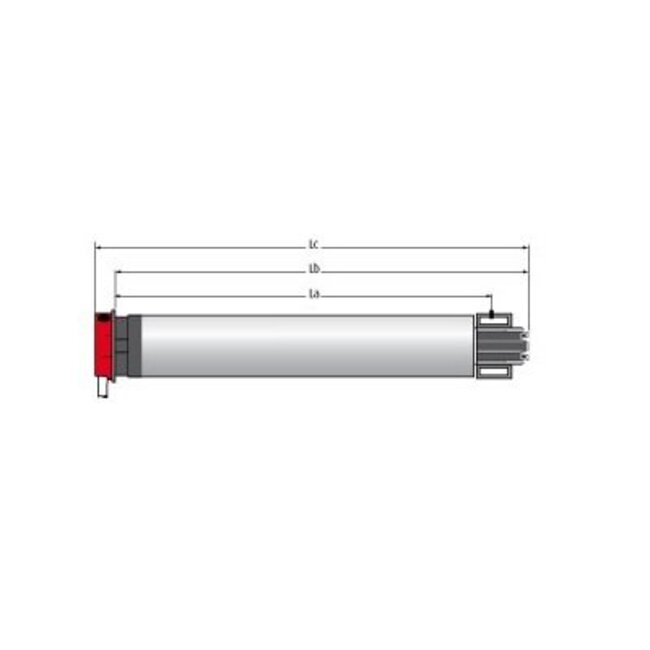

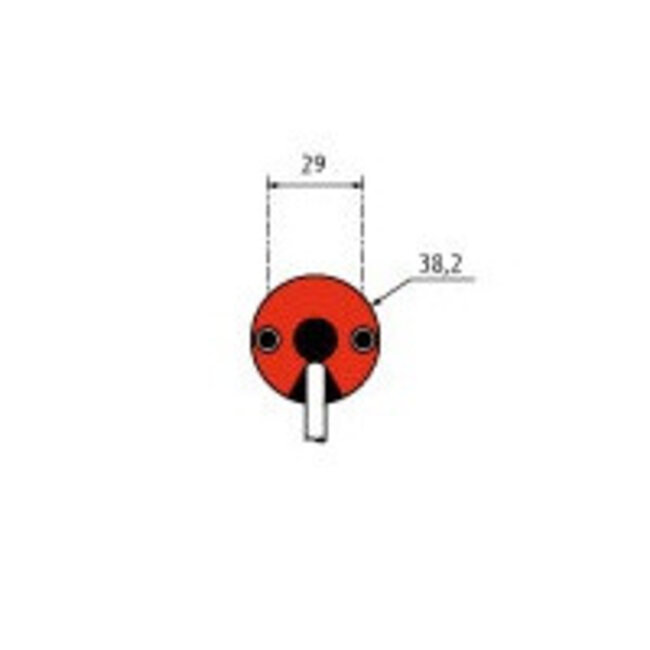

- tubular motor fits in a tube with a minimum inner diameter of Ø 40 mm.
- supplied as standard with a 2-core white cable, length 3 m.
- Accessories Somfy LT40 tubular motors or Simu T3.5
- Not suitable for continuous use.

Specifications

Article number
3153
EAN Code
7432257381381
SKU
2008657
Motor series
Simu T3.5
Cable
2.5 metres, white, 0.75 mm2
Supply voltage
230 V - 50 Hz
Maximum duration
10 cycles per day
Protection class
IP44
Ambient temperature
-10 °C to 40 °C and exceptionally -20 °C to 60 °C
Thermal protection
4 minutes
Revolutions
10, 16 & 30 rpm
Capacity final adjustment
40 revolutions
Emergency manual
