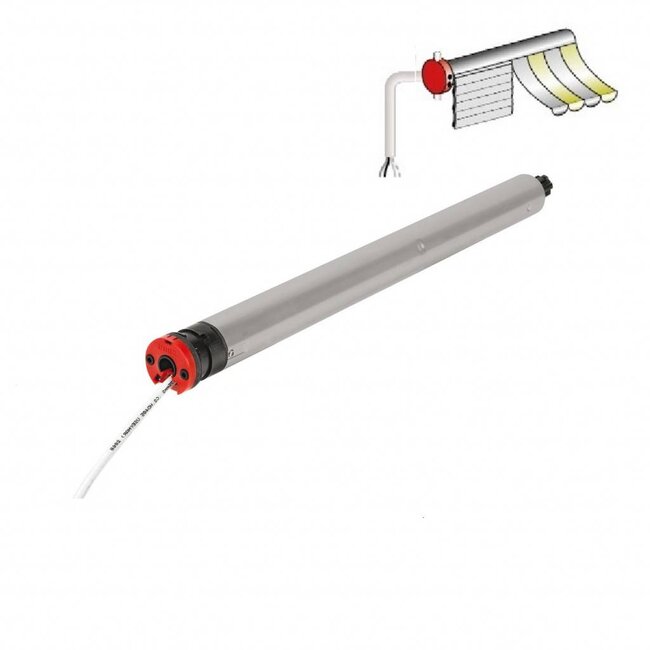

Tubular motor for screens and roller shutters

- Supplied without motor support and adapter set
- Power supply 230 V/50 Hz
- Speed 30 rpm at 3 Nm, 16 rpm at 4, 6 & 9 Nm, 10 rpm at 13 Nm
- Adjustment by means of countersunk pins.
- Applicable with relay boxes, standard switches and standard controllers.

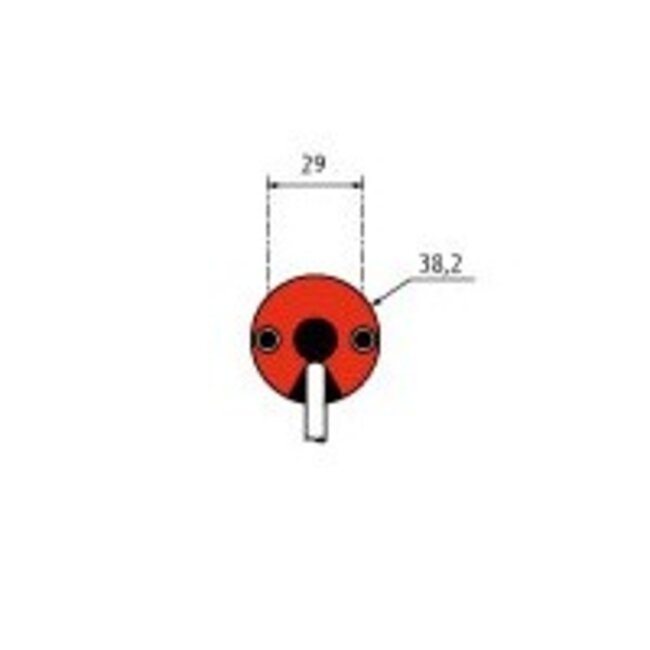

- Shutter motor fits into a tube with a minimum inner diameter of Ø 40 mm.
- Final adjustment capacity: 40 revolutions (± 8°).
- Shutter motor supplied as standard with a 4-core white cord, length 2.5 m.
- Accessories Somfy LT40 tubular motors or Simu T3.5
- Not suitable for continuous use.
