T5 12 or 24 Volt DC tubular motor

Name: Simu T5 12 or 24 Volt DC tubular motor
Brand: Simu
SKU: 2004492
Price: 163.95 EUR
Availability: InStock

Simu T5 roller shutter motor with a supply voltage of 12 VDC or 24 VDC. Suitable for hoods, drop-down screens, screens, and Roller shutters. Available in strengths from 15 to 35 Nm. Read more.

163,95 Incl. tax

In stock

Make a choice:

Je hebt nog 00:00:00 uur om je bestelling af te ronden.

Affiliated to Home shopping guarantee
Fast delivery Delivery within 2 working days
Free shipping when spending €100 (in NL)

Product description

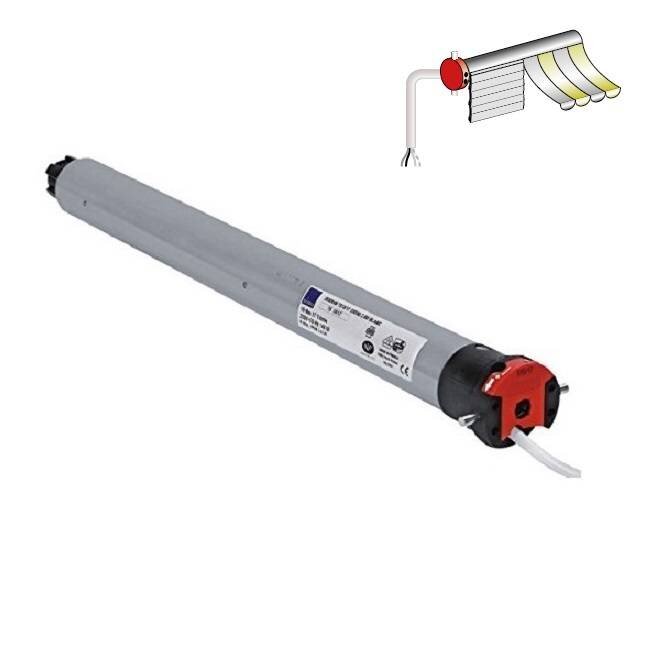

Simu DC tubular motor for sun blinds and roller shutters

The Simu T5 roller shutter motor is suitable for hoods, roller shutters, drop-down screens and screens. The strength of the tubular motor ranges from 15 Nm to 35 Nm.

- Supplied without motor support and adapter set

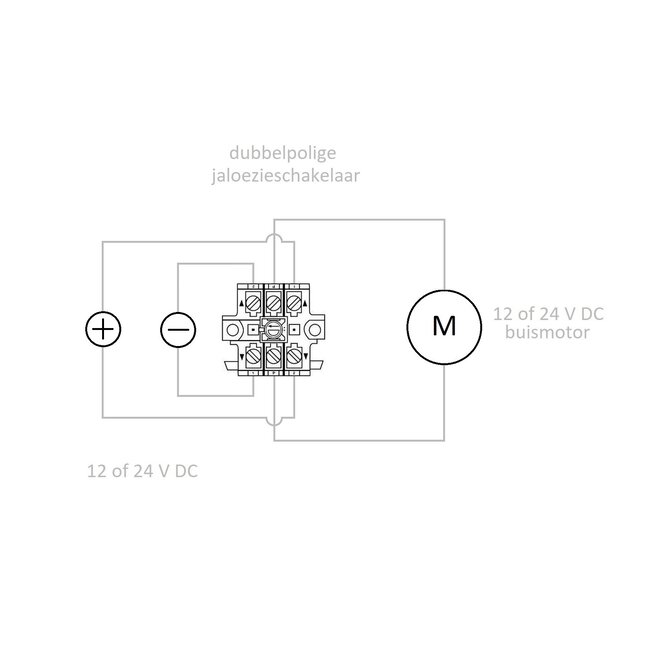

- Power supply 12 Volt DC or 24 Volt DC
- Roller shutter motor strength 15 to 35 Nm
- Speed 7 to 14 revolutions per minute

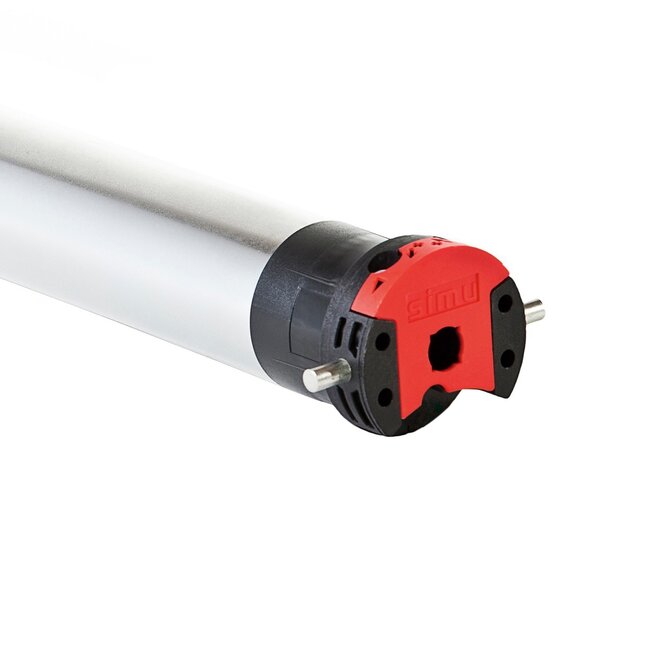

- Adjustment of roller shutter motor using countersunk rotary pins.

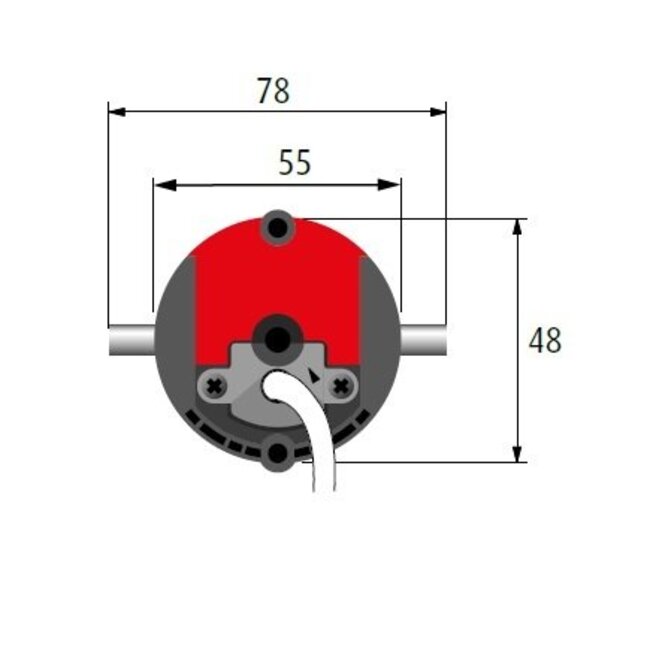

- Fits into a tube with a minimum inner diameter of Ø 47 mm.
- Final adjustment capacity: 28 revolutions (± 8°).
- Supplied as standard with a 2-core white cord, length 2.5 m.
- Accessories Somfy LT50 tubular motors or Simu T5
- Not suitable for continuous use.

-- download here the assembly instructions for the T5 roller shutter motor / tubular motor --
