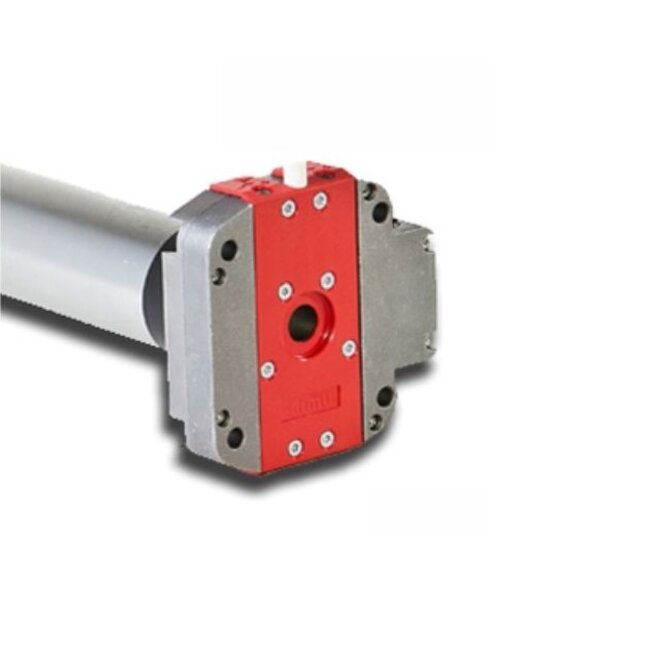

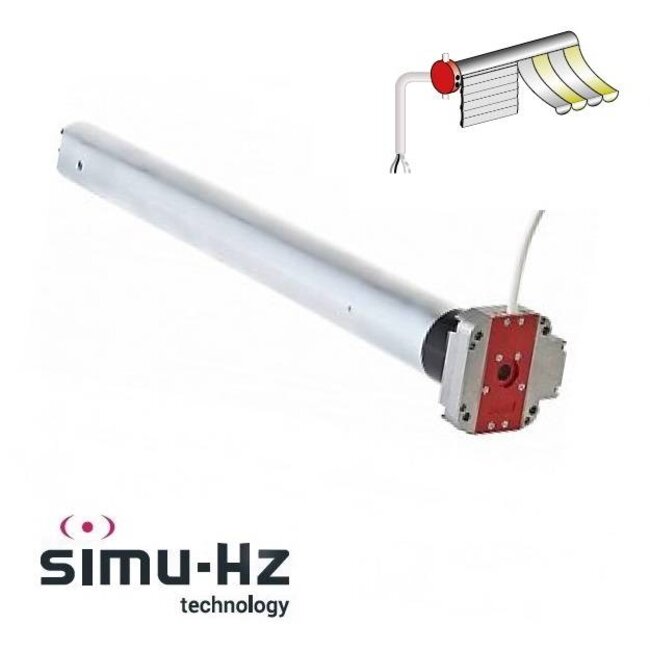

Simu tubular motor T5 DMI Hz (with emergency hand control)

- supplied without motor support and adapter set
- tubular motor with integrated emergency hand control
- proportional limit switch setting accessible from 2 sides
- simple fixing of drive flange with click system
- low noise level
- limit switch setting capacity: 30 revolutions
- Control by hand or wall transmitter
- available in strengths from 10 to 35 Nm
- power supply 230 V/50 Hz
- speed 17 rpm for 10 to 35 Nm and speed 12 rpm for 50 Nm
- fits into a pipe with a minimum inner diameter of Ø 47 mm.
- supplied as standard with a 3-core white cable, length 2.5 m.
- accessories Somfy LT50 tubular motors or Simu T5
- adjustment on motor head
- emergency hand control on both sides: 27/1
