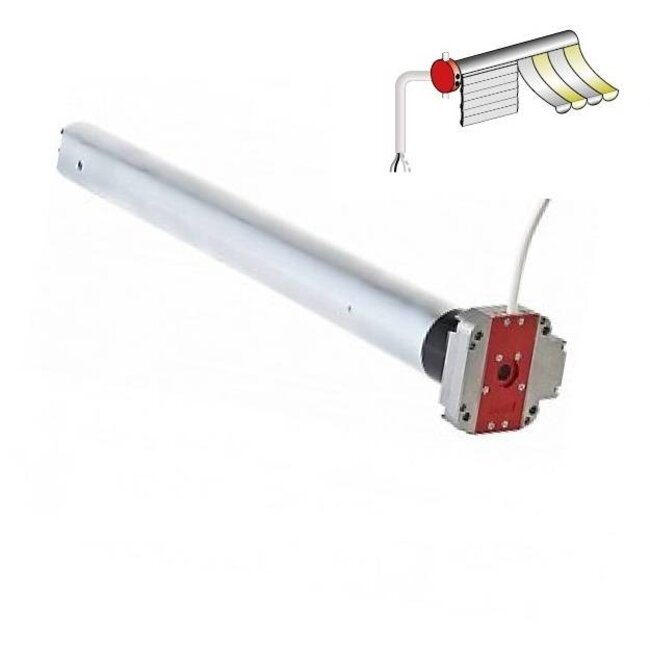

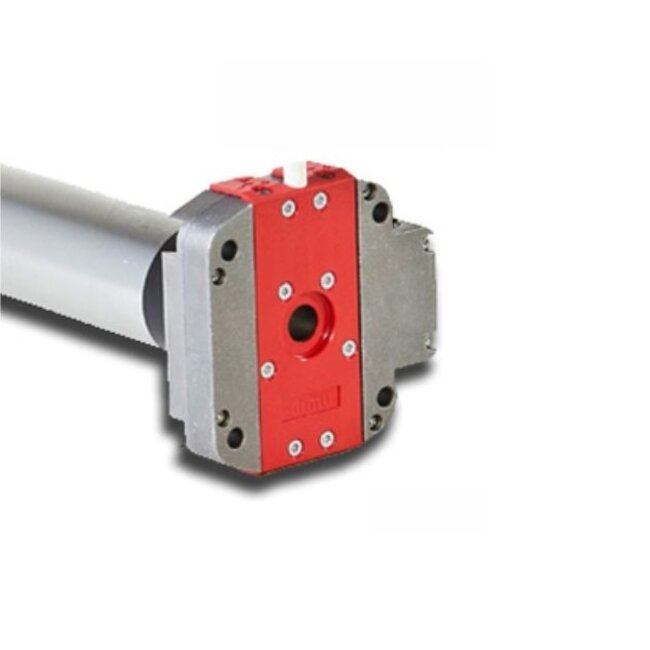

Standard tubular motor with emergency manual operation for blinds and roller shutters

- Motor support and adapter set not included in delivery
- power supply 230 V/50 Hz.
- Speed 17 rpm, except 40 and 50 Nm, which have 12 rpm.
- adjustment with countersunk pins.
- Applicable with relay boxes, standard switches and standard controllers.
- fits a tube with a minimum inner diameter of Ø 47 mm.
- final adjustment capacity: 28 revolutions (± 8°).
- supplied as standard with a 4-core white cable, length 2.5 m.
- accessories Somfy LT50 tubular motors or Simu T5
- aluminium eye with Axle/Shaft 6 side 7 mm pin necessary to use emergency hand control
- not suitable for continuous use

Simu T5 DMI is available in the following versions
- Simu T5 DMI - 8/17 - 8 Nm - 17 rpm - 100 Watt - length 617 mm
- Simu T5 DMI - 10/17 - 10 Nm - 17 rpm - 120 Watt - length 617 mm
- Simu T5 DMI - 15/17 - 15 Nm - 17 rpm - 140 Watt - length 617 mm
- Simu T5 DMI - 20/17 - 20 Nm - 17 rpm - 160 Watt - length 617 mm
- Simu T5 DMI - 25/17 - 25 Nm - 17 rpm - 170 Watt - length 617 mm
- Simu T5 DMI - 30/17 - 30 Nm - 17 rpm - 240 Watt - length 617 mm
- Simu T5 DMI - 35/17 - 35 Nm - 17 rpm - 240 Watt - length 617 mm
- Simu T5 DMI - 40/12 - 40 Nm - 12 rpm - 240 Watt - length 617 mm
- Simu T5 DMI - 50/12 - 50 Nm - 12 rpm - 240 Watt - length 617 mm
