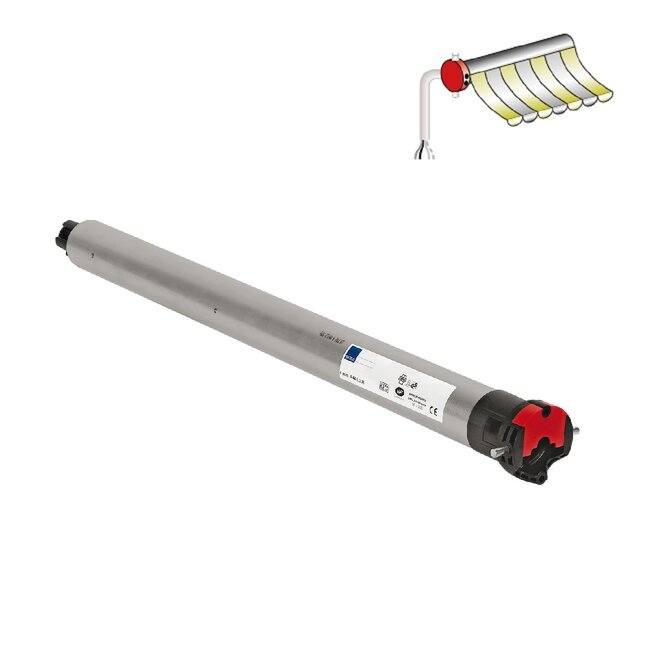

Simu T5 E SP awning motor with automatic adjustment and fabric correction

- Supplied without motor support and adapter set
- corded tubular motor for cassette awnings with sufficient mechanical stops
- cassette always closes properly thanks to intelligent automatic correction function
- available in strengths from 10 to 50 Nm
- power supply 230 V/50 Hz
- speed 17 rpm for 10 to 35 Nm and speed 12 rpm for 50 Nm

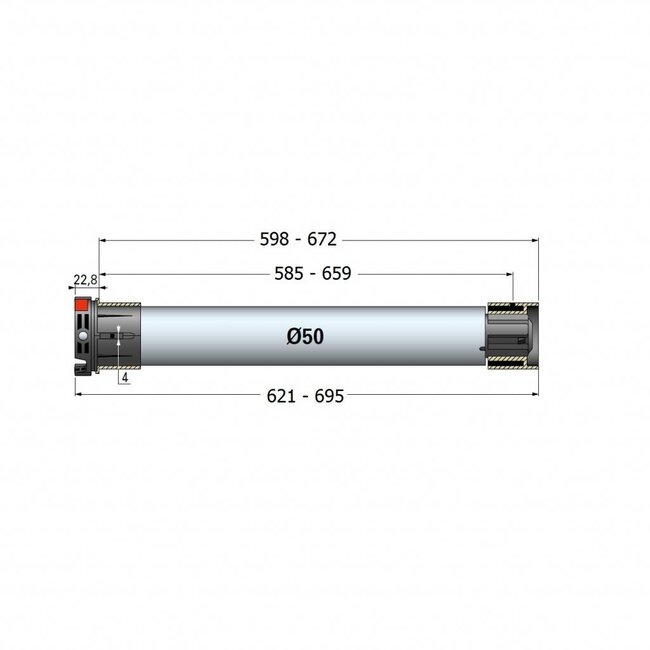

- fits into a tube with a minimum inner diameter of Ø 47 mm.
- supplied as standard with a 4-core white cable, length 5 m.
- accessories Somfy LT50 tubular motors or Simu T5
- automatic fabric stretch compensation
- simple and quick adjustment with the adjustment switch T5E / T5 ESP, article 3717
- electronic adjustment without access to the motor head
- applicable with all SIMU wired controllers
- final adjustment capacity: 3 minutes
- removable cable
- 3 Motors can be connected in parallel
