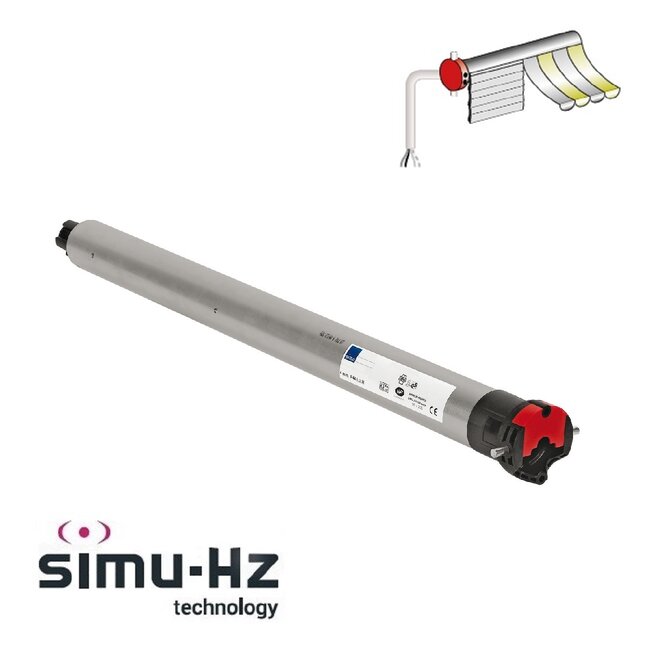

Simu HZ 02 tubular motor for sun blinds and roller shutters with integrated receiver

- Supplied without motor support and adapter set
- power supply 230 V/50 Hz
- speed 17 rpm.
- easy adjustment with HZ hand or wall transmitter.
- Control with HZ hand or wall transmitter.
- fits into a pipe with a minimum inner diameter of Ø 47 mm.
- capacity of final adjustment: 29 revolutions (± 8°).
- supplied as standard with a 3-wire white cable, length 2.5 m.
- accessories Somfy LT50 tubular motors or Simu T5
- not suitable for continuous use.

-- download here the assembly instructions for the T5 Hz tubular motor --
