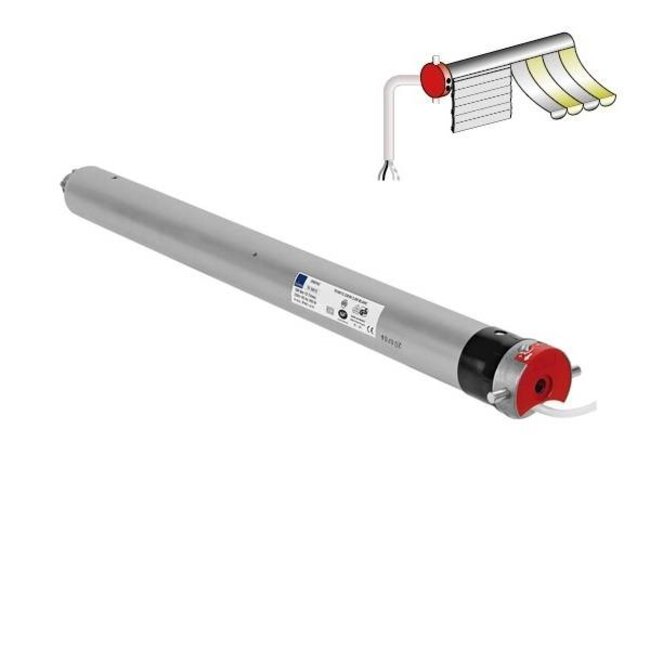

Simu T6 - standard tubular motor for sun blinds and roller shutters

- Motor support and adapter set not included in delivery
- power supply 230 V/50 Hz
- available in strengths from 40 to 120 Nm
- speed 12 rpm (60, 80, 100 & 120 Nm)
- speed 17 rpm (40, 55, 70 & 85 Nm)
- supplied with a 4-core VVF x 0.75 mm2 white cable, length 2.5 m

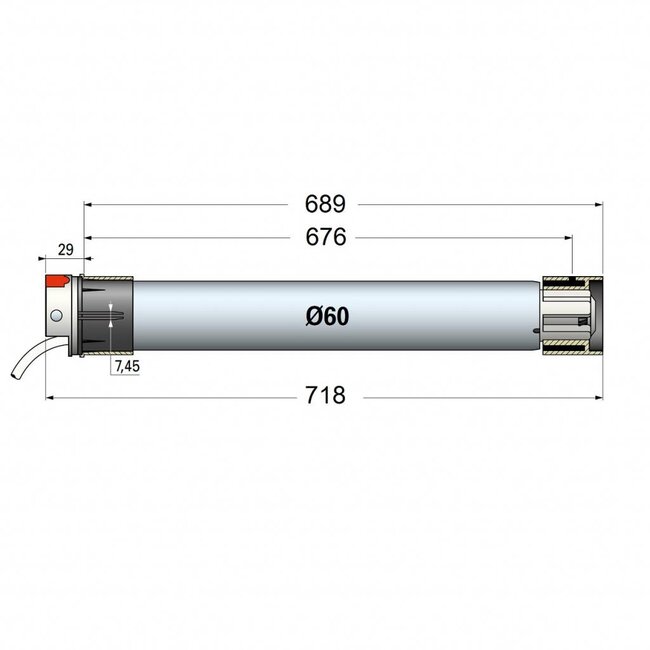

- minimum tube diameter: 63 mm x 1.5 mm
- adjustment on motor head
- supplied with fixed cable
- applicable with relay boxes, standard switches and standard controllers
- fits into a tube with a minimum inside diameter of Ø 63 mm
- final adjustment capacity: 23 revolutions
- accessories Somfy LT60 tubular motors or Simu T6
- not suitable for continuous use

-- download here the assembly instructions for the T6 tubular motor --
