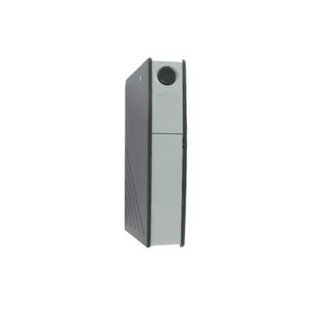

Tedsen SKX1 1-channel 433 MHz handheld transmitter

- applicable with a product equipped with Tedsen receiver with a coding switch
- frequency 433.92 MHz
- yellow LED during control
- coding dipswitches have 3 positions
- easy to program
- pulse operation (one button press)
- colour grey/black
- dimensions 85x60x20 mm
- fitted with sturdy plastic housing
- Supplied with 9 V block battery as standard

Nowadays often replaced by the Adolf Tedsen SKX1MD handheld transmitter.
This Tedsen Teletaster SKX1-MD is supplied as standard by the following Roller Shutter suppliers.

Brinkman - Doorfix - Euroll - Floor - GNS Brinkman - Kartech - Nederlandse Rolluiken Fabriek (NRF) - Protector - Rolluikenfabriek - Rolvatec - Rycol - Slaets - Stackdoor - Teletaster - Vermij - Wessels - Westend

Setting Tedsen handheld transmitter coding with dipswitches.

Tedsen handheld transmitters are very easy to set up. Only the coding of the new handheld transmitter must be set to match the coding of an already functioning handheld transmitter.
Under the battery cover is a strip with 9 dip switches, where the coding of the Handheld transmitter can be set.

Depending on the frequency of the Handheld transmitter, the dip switches have 2 or 3 positions:
- 9 dip switches with 2 positions - ON (top) - OFF (bottom)
Handheld transmitters with 27 MHz
SM and SM-MD series
- 9 dip switches with 3 positions - ON (top) - 0 (middle) - OFF (bottom)
433 MHz and 868 MHz handheld transmitters
SKX, SFX, SKX-MD, SFX-MD, SKX-LC, SKX-WD, SFX-WD and SKX-HD series transmitters

Please note this transmitter may have a long delivery time, as it is produced to customer order
