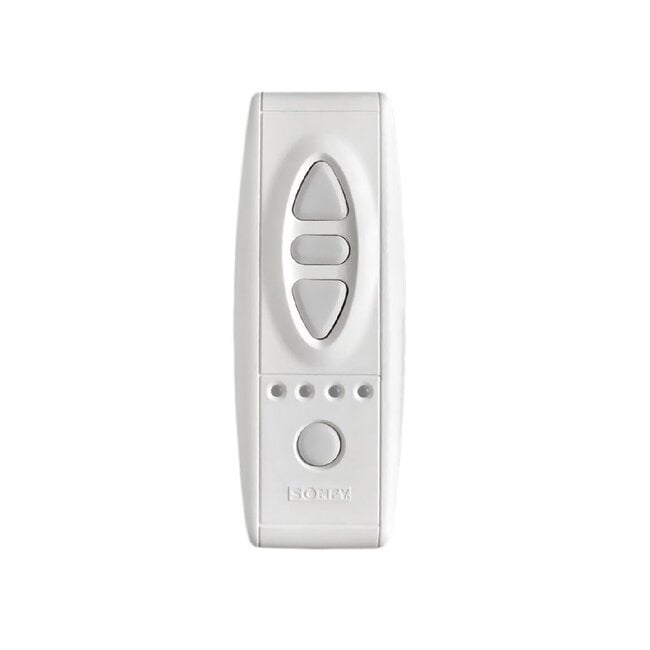

Remote control Somfy Telis 4 RTS

This Handheld transmitter is no longer available, see the Somfy Situo 5 RTS as a replacement

- applicable with a product equipped with RTS receiver
- 4-channel transmitter with RTS technology
- wireless operation.
- easy to program.
- pulse operation (one button press).
- colour white
- wall mounting with wall bracket
- battery and wall bracket supplied as standard

Setting an extra Somfy RTS transmitter using an already functioning transmitter
1. take an already programmed Somfy RTS transmitter
2. set this transmitter to the correct channel
3. press the rear programming button until the Roller shutter responds with a short movement.
4. Take the new Somfy RTS transmitter.
5. set this transmitter to the right channel
6. briefly press the programming button on the back until the roller shutter responds with a short movement.
7. repeat these steps with each channel
8. the new Somfy Situo 5 RTS Pure II transmitter is set up

Replacing a lost Somfy RTS transmitter
only one motor should be powered
1. set the Somfy Situo 5 RTS Transmitter to the correct channel
2. switch off the power supply for 2 seconds
3. switch on the power supply for 8 seconds
4. switch off the power supply again for 2 seconds
5. switch the power supply on again
6. the Motor responds by running up and down a bit
7. briefly press the transmitter programming button
8. the Motor responds again and the Transmitter's first channel is set
9. repeat steps 2 to 8 for each channel
