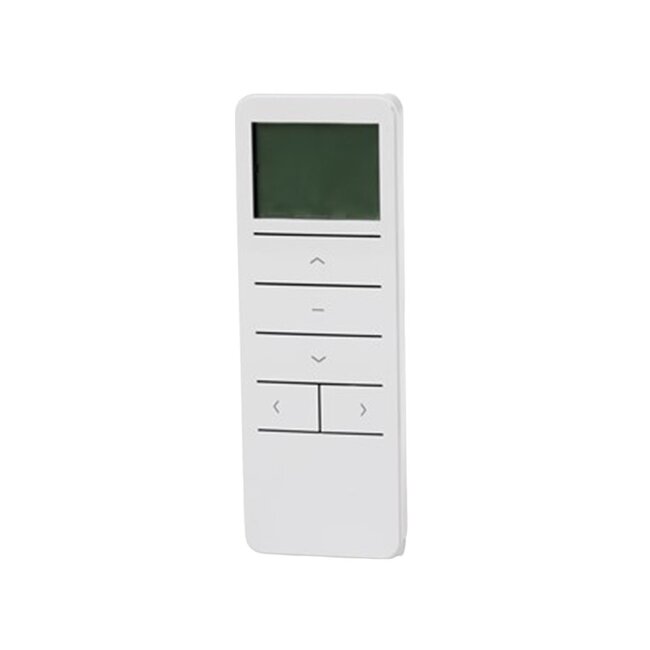

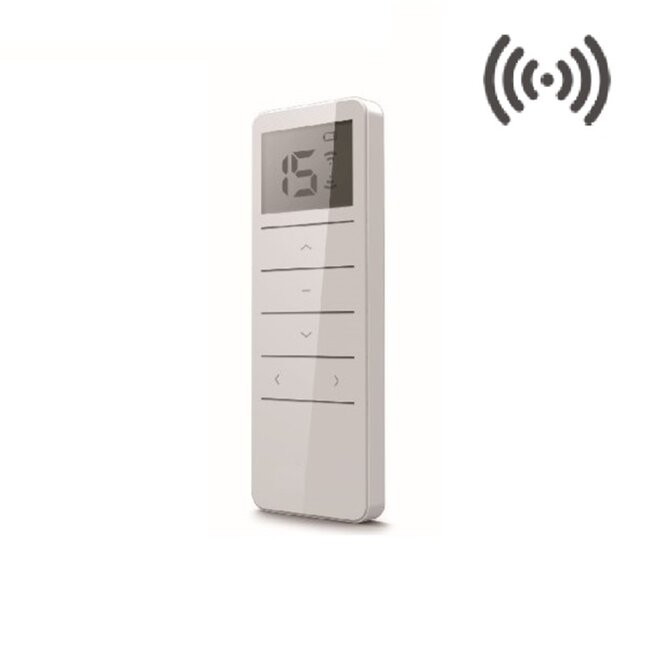

Handheld transmitter THW2015 15-channel handheld transmitter

- formerly DD2702
- Handheld transmitter can be set mono or bi-directional
- suitable for Brel and Faher tubular motors with integrated receiver
- frequency 433 MHz
- 15 channels
- colour white on magnesium
- battery type CR2450
- battery supplied as standard

Please note, when this transmitter is used as a replacement for the DC2702, it will have to be set mono-directional.

Handheld transmitter switch from mono-directional to bi-directional
- remove the battery from the Transmitter
- hold P2 while pushing in the battery

- the Handheld transmitter is in mono directional mode when it displays as below
- for the DD2702, the 1 flashes twice and then remains.
- at the DD2700 the LED flashes once

- the Handheld transmitter is in bi-directional mode when it displays the following
- at the DD2702 the 2 flashes twice and then a 1 remains.
- at the DD2700 the LED flashes 2x

If the Motor does not react, try the other mode
