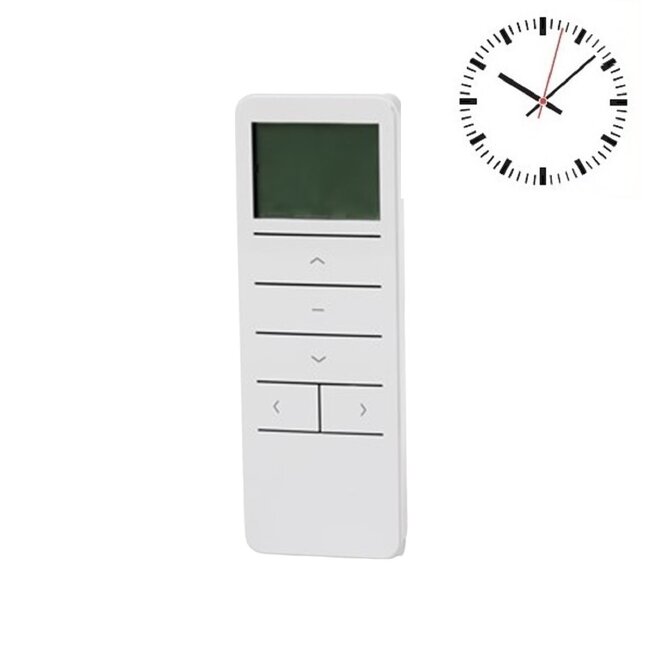

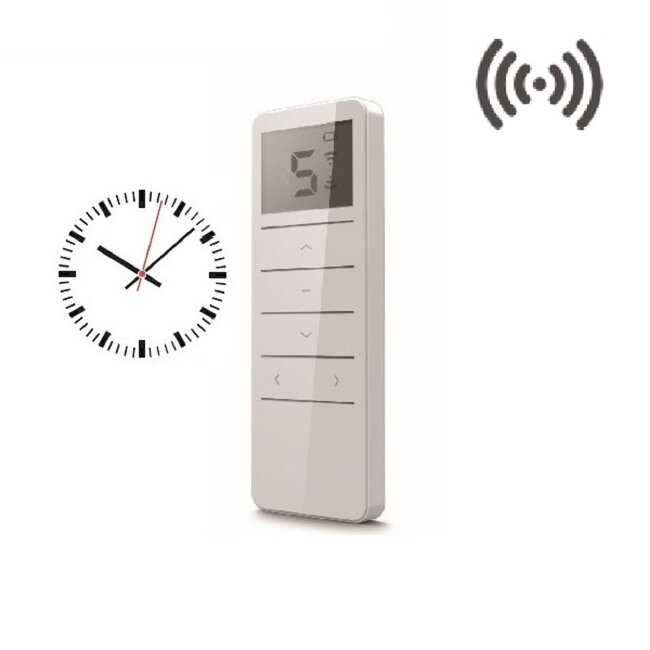

Handheld transmitter THW2305 5-channel with timer

- previously THW2305
- Handheld transmitter can be set mono or bi-directional
- suitable for Brel and Faher tubular motors with integrated receiver
- frequency 433 MHz
- 5 channels
- integrated timer
- colour white on magnesium
- battery type CR2450
- battery supplied as standard

Please note, when this transmitter is used as a replacement for the DC2705, it will have to be set mono-directional.

Handheld transmitter change from mono-directional to bi-directional
- remove the battery from the Transmitter
- press and hold P2 while inserting the battery

- the Handheld transmitter is in mono directional mode when it displays as below
- for the DD2702, the 1 flashes twice and then remains.
- at the DD2700 the LED flashes once

- the Handheld transmitter is in bi-directional mode when it displays the following
- at the DD2702 the 2 flashes twice and then a 1 remains.
- at the DD2700 the LED flashes 2x

If the Motor does not react, try the other mode
