Selve timer Selvetimer Plus

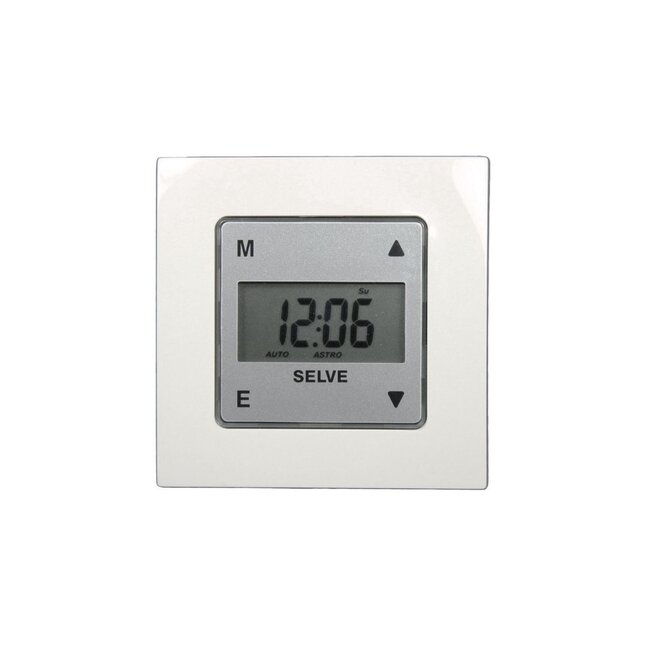

The Selvetimer Plus time clock manufactured and developed in Germany impresses with its flat silver control panel and modern and neutral design. Thanks to its DIN dimensions of 50 x 50 mm and very flat control panel with display of 20x40 mm, the Selvetimer can be integrated into all common switchgear series and, thanks to its silver colour, can be easily combined with all colours of switchgear
Day/week/Astro programme, random control and the connection options for a sun and twilight sensor make the Selvetimer a comprehensive controller, yet easy to use.
The new Selvetimer Plus should not be missing in any home. with a small investment, you can not only operate your Roller shutters comfortably and safely, but also save energy by closing the shutters automatically in a timely manner.
As an example, you can have the Roller shutters close early automatically after preset times or depending on sunset ("Astro evening programme"), the result being that in winter the heat stays in the house longer and in summer your house stays pleasantly cool for longer.
- power supply 230 V
- switching current 5 Ampere
- battery type CR2032
- protection class IP20
- permissible ambient temperature 0 to +55°C
- suitable for wall box Ø 58 mm x 40 mm
- long power reserve in case of power failure of at least 10,000 hours
- mounting does not have fixing claws

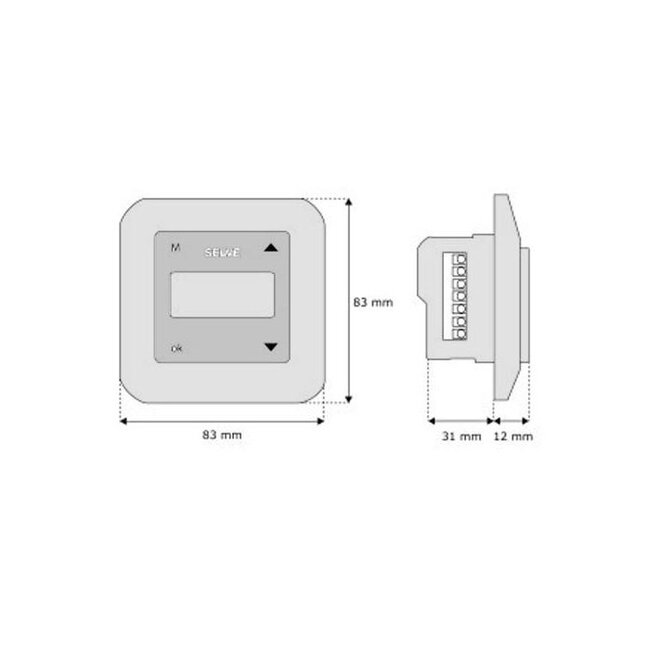

- control panel dimensions 50x50x11 mm (wxhxd)
- window dimensions 83x83 mm (wxh)
- dimensions power supply section Ø 54 mm x 30.8 mm
- can be switched from manual to automatic mode at a single touch
- simple setting of individual switching times
- switching times are executed in the 24-hour cycle
- with astro function for adjustment of switching times by the calendrical sunset
- automatic summer/winter time changeover
- twilight function (via optionally available) light sensor
- sun function (via optionally available) sun threshold control
- random function, switching times shifted at random every day
- intermediate position, any intermediate position adjustable
- time switch is supplied with single cover frame, battery and operating instructions
