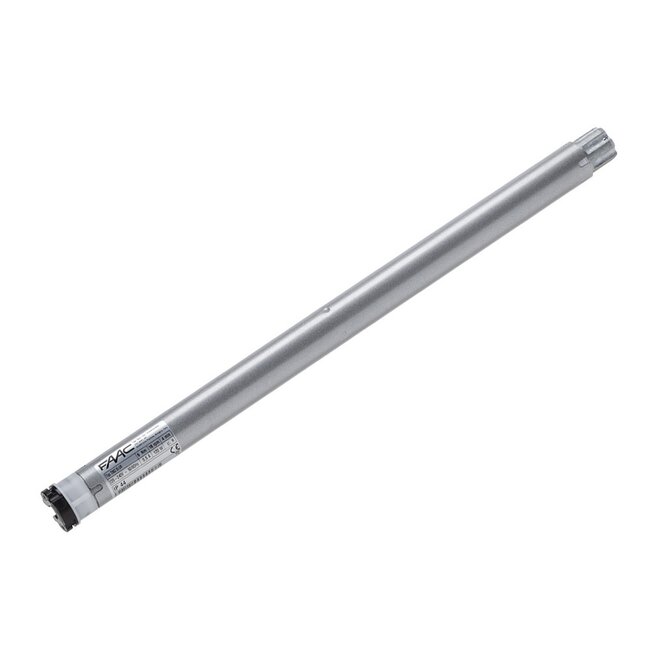

Faac TM2 35 ERX tubular motor

Tubular motor with electronic final adjustment and integrated receiver. Easy programming via the Handheld transmitter, without having to open the roller shutter or blinds. Motor is suitable for tubes with a diameter of 40 mm or larger. Available as a high-speed motor with a speed of 30 rpm with a torque of 5 Nm and in a speed of 16 rpm with a torque of 9 Nm.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- available with a speed of 16 and 30 rpm
- available in 5 and 9 Nm

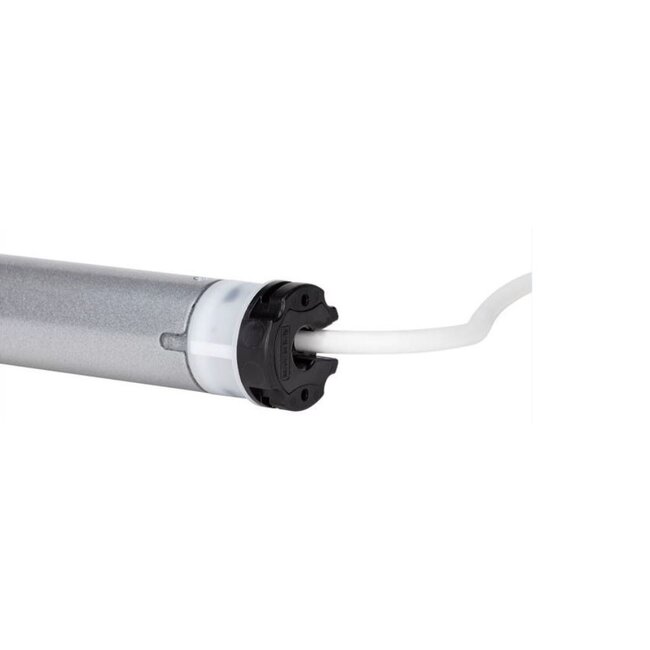

- motor head with adapter set to fit the most popular motor supports on the market

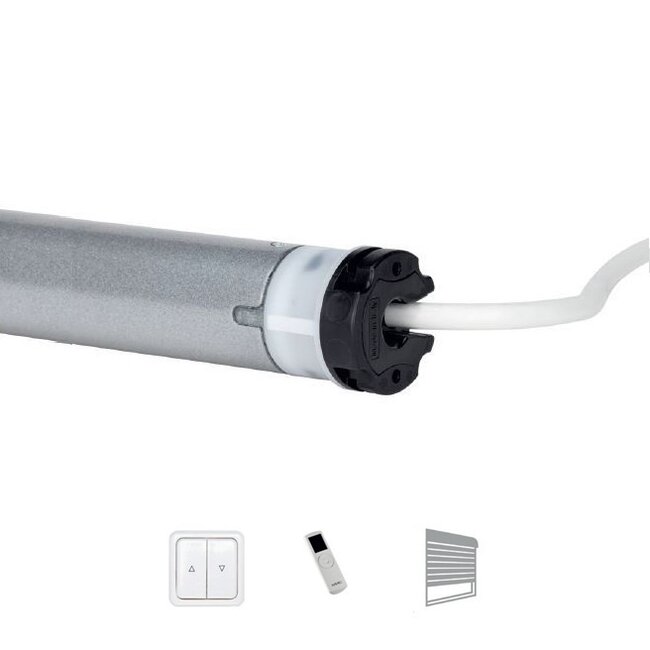

- suitable for roller shutters, awnings and screens
- easily programmable handheld transmitter
- end positions can be fixed with standard suspension springs
- end positions can be set semi-automatically, with rigid connections
- motors can be connected in parallel
- Faac TM2 35 fits in tubes with a minimum inner diameter of 40 mm
- final adjustment capacity 35 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Faac TM2 35 tubular motors
- Faac TM2 35 5/30 ERX - 5 Nm - 30 rpm - length 547 mm
- Faac TM2 35 9/16 ERX - 9 Nm - 16 rpm - length 547 mm

Important notes
If you are replacing this motor with a defective Altron Black or Altron RadioBlack tubular motor, you must also order the correct adapter set and motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
The old Faac TM and Altron handheld transmitters are also not compatible with the new Faac TM2 remote controls.
