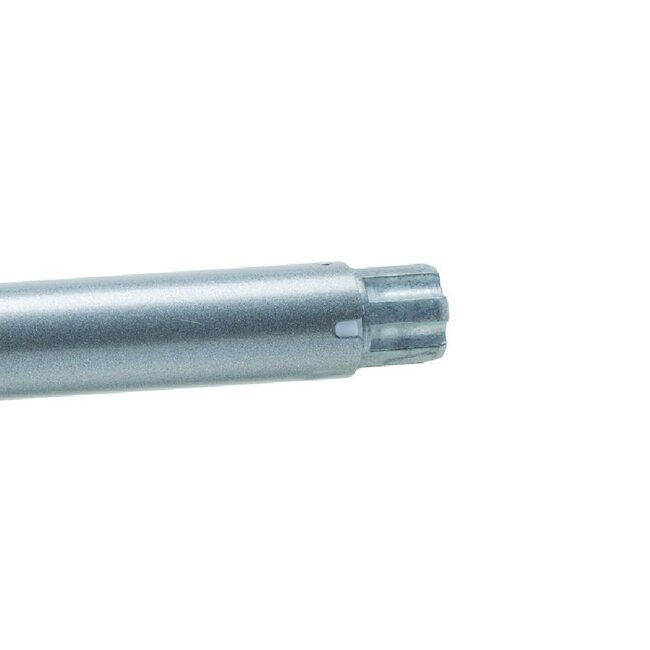

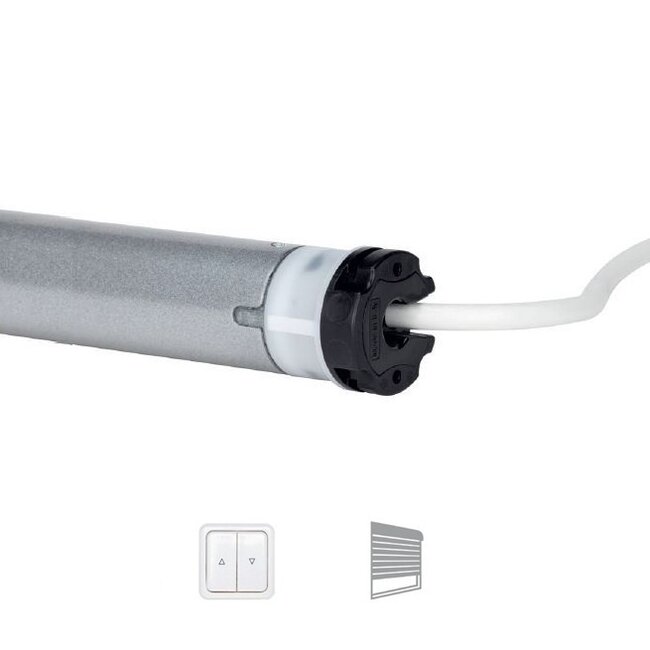

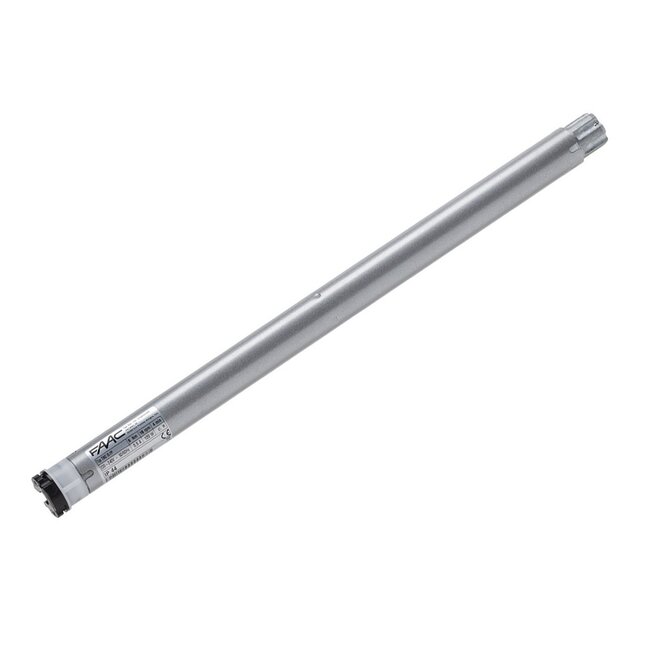

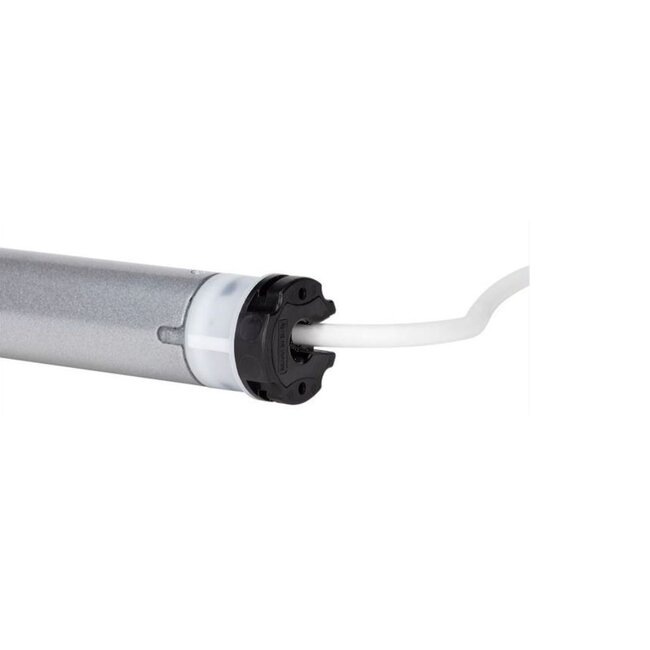

Faac TM2 35 PP (Plug & Play) tubular motor

Tubular motor with fully automatic end position setting. Available with a force of 9 Nm and a speed of 16 rpm. This smart motor requires no learning or resetting procedure and has obstacle detection in both directions! Also, this motor is equipped with freeze protection as standard. Parallel connection is possible. In addition, this Motor can also be used with standard steel suspension springs in combination with fixed endpoints.

- Motor support and adapter set not included.
- tubular motor 230 V/50 Hz
- force 9 Nm
- speed 16 rpm
- hindrance detection in both directions
- freeze protection
- motor head with adapter fits into the most popular motor supports on the market
- tubular motor only suitable for Roller shutters
- simple and precise adjustment of the end positions
- can also be used with standard suspension springs in combination with fixed end positions
- parallel connection of these shutter motors is possible
- Faac TM2 35 fits into pipe with a minimum inner diameter of 40 mm
- final adjustment capacity 35 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Important notes
If you are replacing this motor with a defective Altron Black or Altron RadioBlack tube motor, you must also order the correct adapter set and motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
Faac's Plug & Play tubular motors require rigid connections and a fixed top and bottom stroke.
