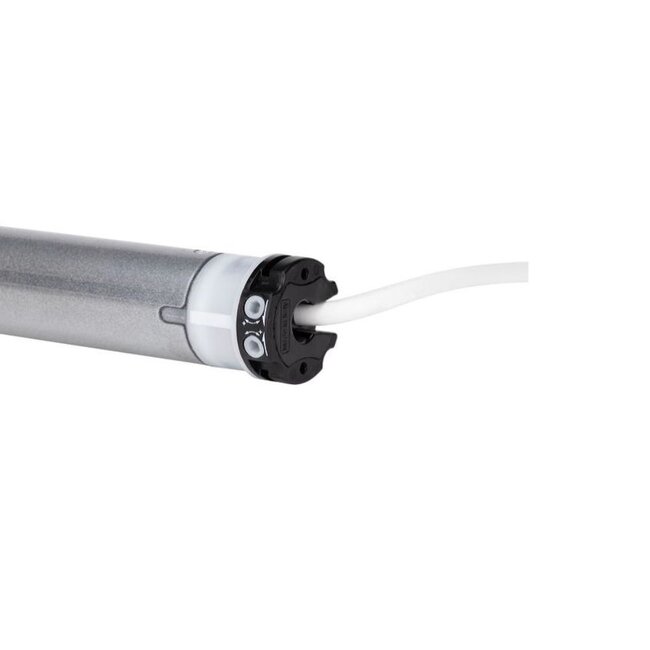

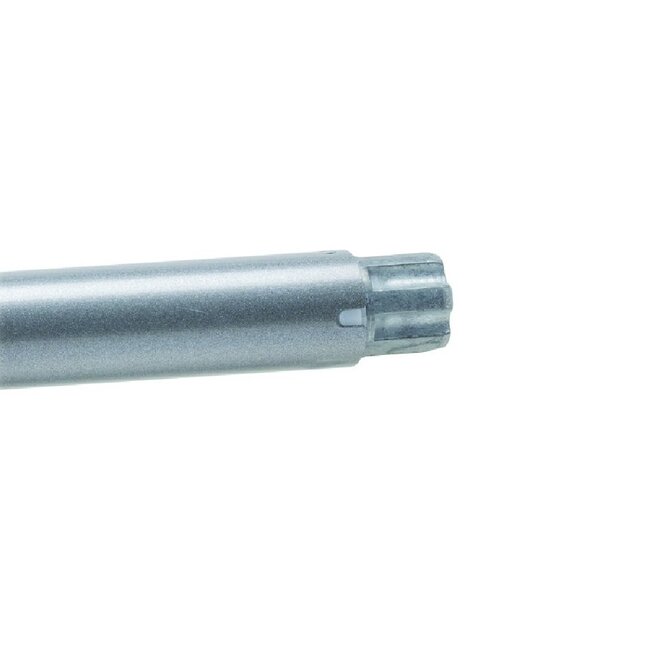

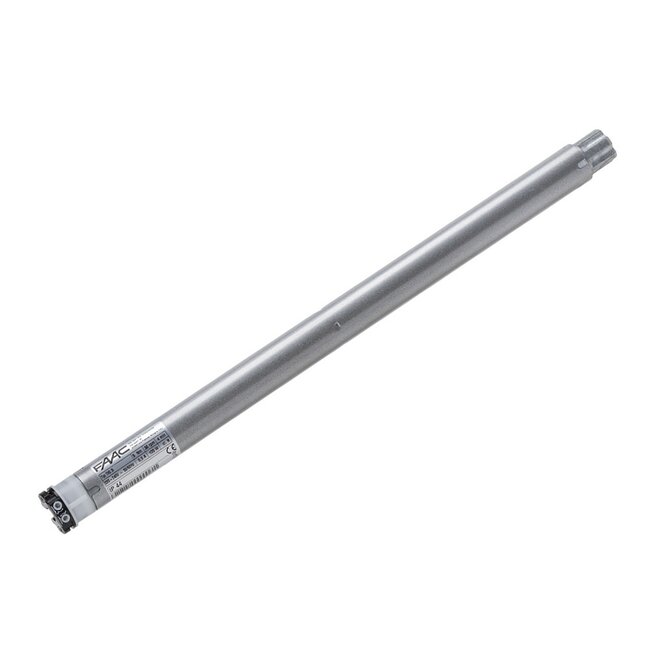

Faac TM2 35 tubular motor

Tubular motor with mechanical end adjustment, suitable for shaft diameters from 40 mm. Simple and reliable final adjustments, adjustable by adjustment screws on the motor head. Available as high-speed at 30 rpm with a force of 5 Nm,ideal for screens. And a more powerful version with 9 Nm at 16 rpm for small roller shutters and screens. Without a relay, the motors cannot be switched in parallel. Maximum running time 35 rpm. The tubular motor has no obstacle detection.

- Supplied without motor support and adapter set.
- tubular motor 230 V/50 Hz
- available with a speed of 16 and 30 rpm
- available in 5 and 9 Nm
- motor head with adapter set to fit the most popular motor supports on the market
- suitable for roller shutters, awnings and screens
- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- Faac TM2 35 fits into tube with a minimum inner diameter of 40 mm
- final adjustment capacity 35 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Faac TM2 35 tubular motors
- Faac TM2 35 5/30 - 5 Nm - 30 rpm - length 477 mm
- Faac TM2 35 9/16 - 9 Nm - 16 rpm - length 477 mm

Important notes
If you are replacing this motor with a defective Altron Black or Altron RadioBlack tubular motor, you must also order the correct adapter set and motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
