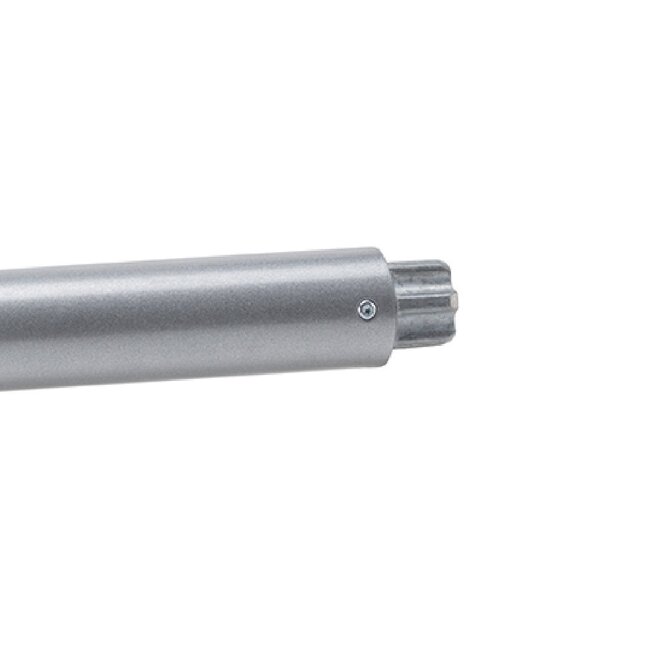

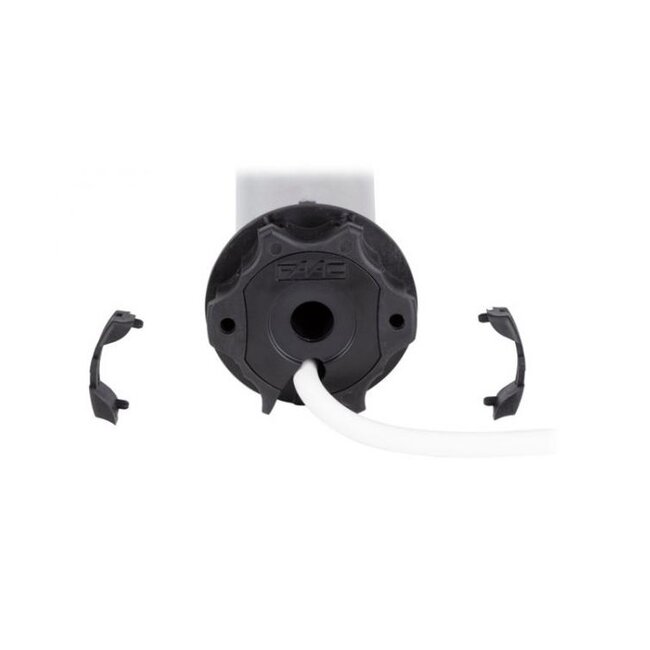

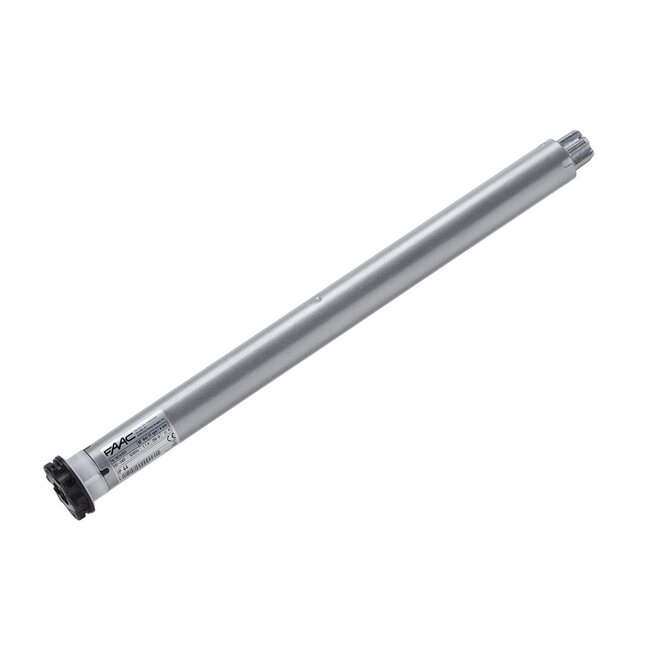

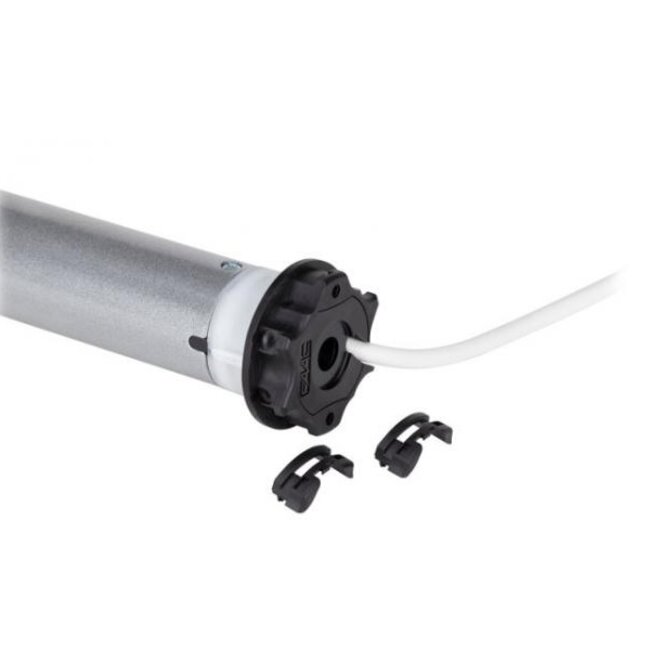

Faac TM2 45 ERX tubular motor

Tubular motor with electronic final adjustment and integrated receiver. Easy to program via the Handheld transmitter, without having to open the Roller shutter or blinds. Motor is suitable for tubes with a diameter of 50 mm or larger. Available in forces from 10 to 32 Nm at 17 rpm and the force 45 Nm at 12 rpm.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- available with a speed of 12 and 17 rpm
- available in 10 to 45 Nm
- motor head fits the most popular motor supports on the market
- suitable for roller shutters, awnings and screens
- easily programmable handheld transmitter
- automatic or manual setting procedures for roller shutters
- automatic determination of the direction of rotation
- adjustable preferred intermediate position possible
- end positions can be fixed, with standard suspension springs
- end positions can be set semi-automatically, with rigid connections
- motors can be connected in parallel
- Faac TM2 45 fits into pipe with a minimum inner diameter of 50 mm
- final adjustment capacity 35 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Faac TM2 45 tubular motors
- Faac TM2 45 10/17 ERX - 10 Nm - 17 rpm - length 546 mm
- Faac TM2 45 15/17 ERX - 15 Nm - 17 rpm - length 546 mm
- Faac TM2 45 25/17 ERX - 25 Nm - 17 rpm - length 586 mm
- Faac TM2 45 32/17 ERX - 32 Nm - 17 rpm - length 586 mm
- Faac TM2 45 45/12 ERX - 45 Nm - 12 rpm - length 586 mm

Important notes
If you are using this motor to replace a defective Altron Black or Altron RadioBlack tubular motor, you should also order the correct adapter set and motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
The old Faac TM and Altron handheld transmitters are also not compatible with the new Faac TM2 remote controls.
