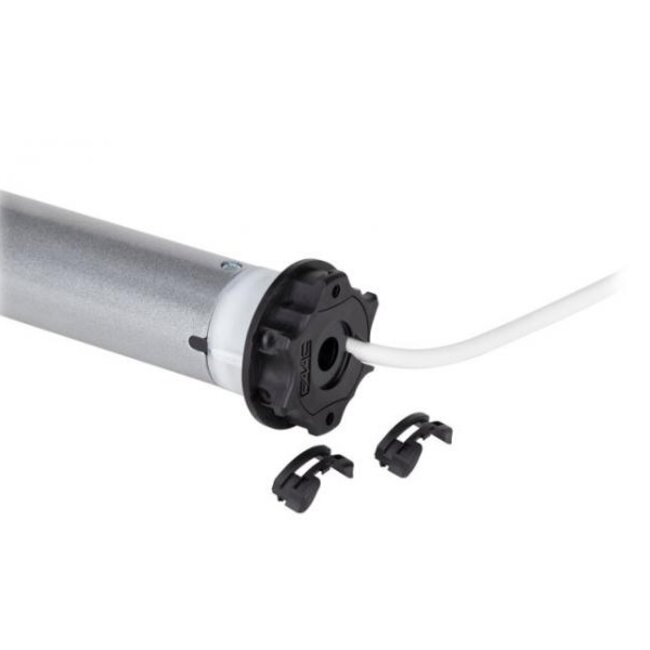

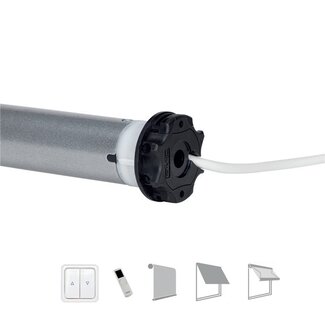

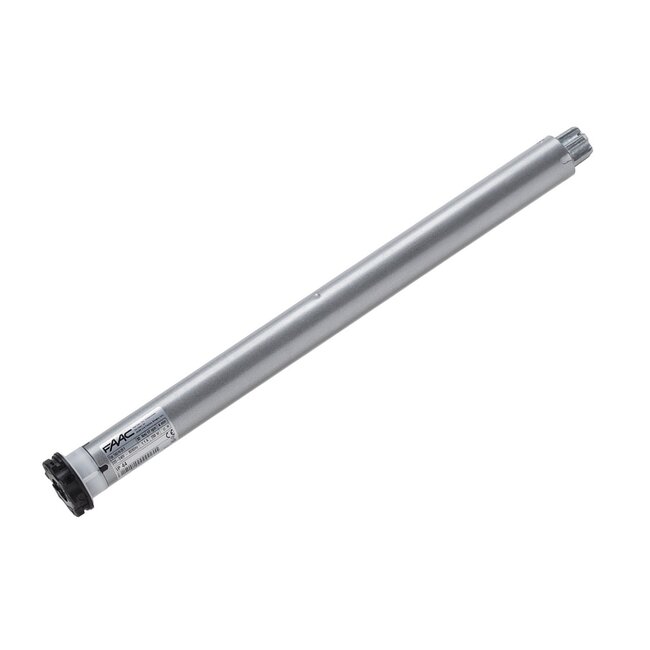

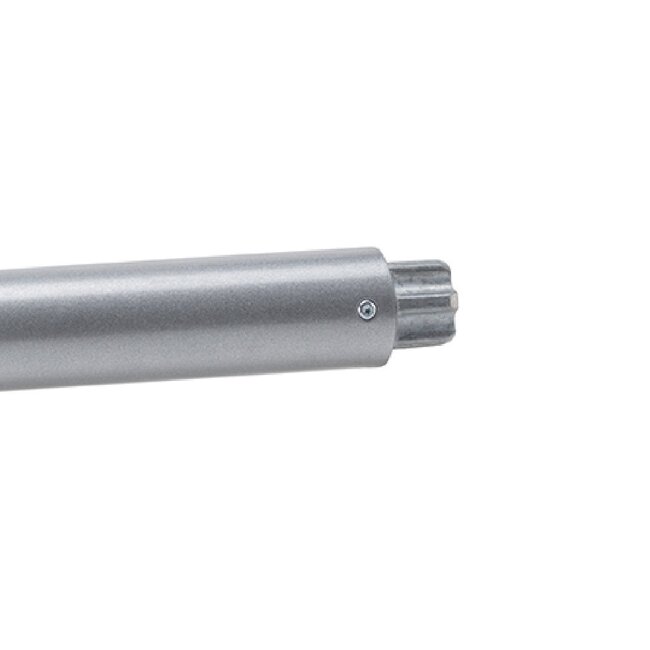

Faac TM2 45 ERY tubular motor

Tubular motor with electronic final adjustment and receiver. Easy programming via the Handheld transmitter, without opening the Roller shutter or blinds. Motor for screens and blinds. Available in power from 15 to 40 Nm at 17 rpm and 50Nm at 12 rpm. For cassette awnings, the upper end position can be set automatically, this also compensates for the stretch in the fabric at the same time.

- Supplied without motor support and adapter set
- Tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- available with a speed of 12 and 17 rpm
- available in 15 to 50 Nm
- motor head fits the most popular motor supports on the market
- suitable for blinds and screens
- simple adjustment of the end positions via the Handheld transmitter
- Motor offers "hypersensitivity" function (up to 25 Nm)
- motor head fits into the most popular motor supports on the market
- with integrated 433 MHz radio receiver
- automatic or manual adjustment procedures for screens and blinds
- adjustable top and bottom positions for awnings
- fabric stretch compensation for cassette awnings
- Motor can be switched in parallel
- adjustable favourite intermediate position possible
- white cable, length 2.5 metres, supplied as standard
- not suitable for continuous use

Type Faac TM2 45 ERY tubular motors
- Faac TM2 45 15/17 ERY - 15 Nm - 17 rpm - length 546 mm
- Faac TM2 45 32/17 ERY - 32 Nm - 17 rpm - length 586 mm
- Faac TM2 45 40/17 ERX - 40 Nm - 17 rpm - length 586 mm
- Faac TM2 45 45/12 ERY - 45 Nm - 12 rpm - length 586 mm

Important notes
If you are using this motor to replace a defective Altron Black or Altron RadioBlack tubular motor, you should also order the correct adapter set and motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
The old Faac TM and Altron handheld transmitters are also not compatible with the new Faac TM2 remote controls.
