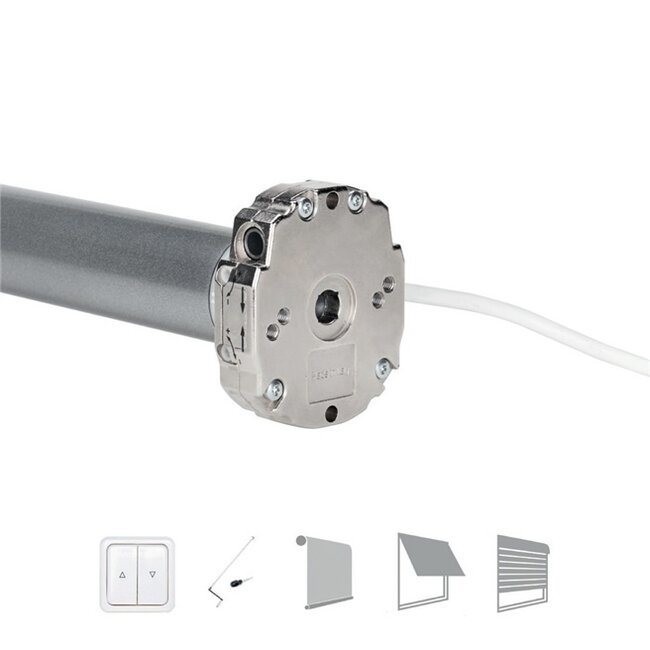

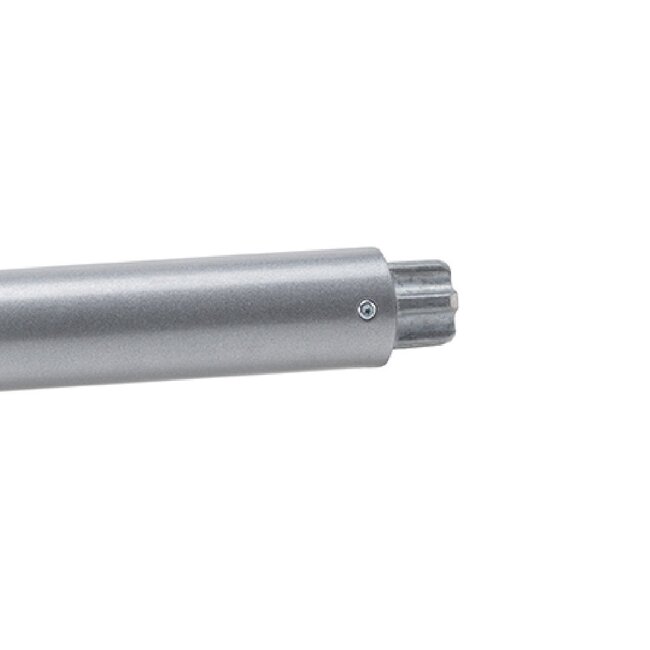

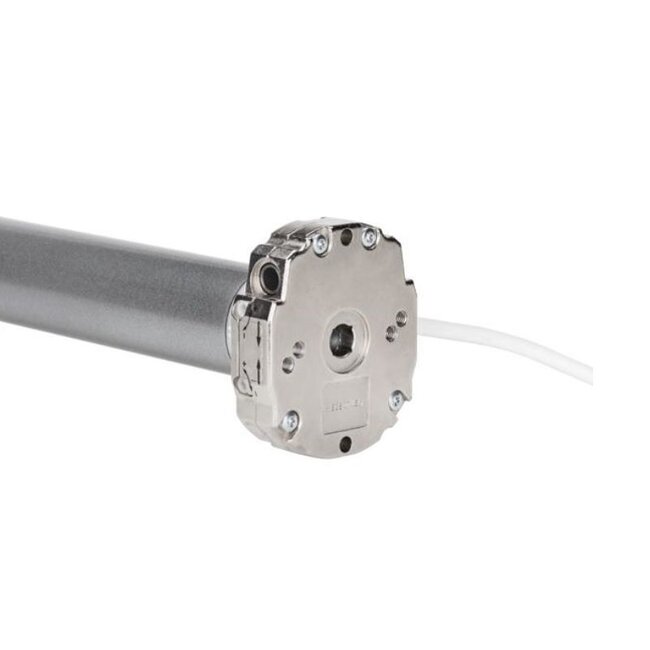

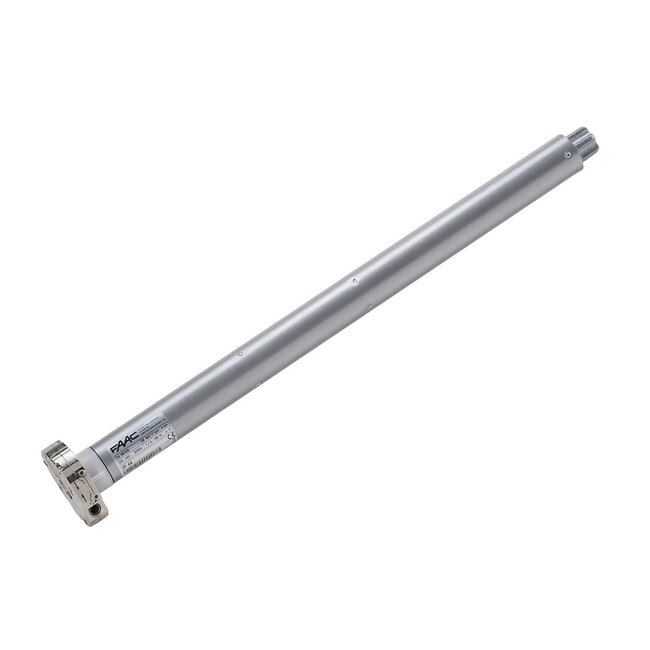

Faac TM2 45 M tubular motor with emergency hand control
Motor with mechanical end adjustment and emergency hand control. Suitable for shaft diameters from 50 mm. Available with forces from 15 to 40 Nm at 17 rpm and 50 Nm at 12 rpm. Maximum number of revolutions of the Motor is 32. The Motor is equipped with a mechanical end position and an integrated emergency hand control. The Motor does not lose its end positions when the manual control is used. Without relay, the Motor cannot be switched in parallel. No obstacle detection. Ideal for roller shutters, awnings and roller gates.
- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available with a speed of 12 and 17 rpm
- available in 15 to 50 Nm
- direct mounting of the metal motor head possible, without special motor support
- suitable for roller shutters, roller gates and awnings
- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- suitable for emergency hand lever square 6 mm or hexagon 7 mm
- adjustment screws mechanically adjustable from both sides
- gear ratio emergency hand lever 1:24
- Faac TM2 45 fits into pipe with a minimum inside diameter of 50 mm
- final adjustment capacity 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use
Type Faac TM2 45 M tube motors
- Faac TM2 45 15/17 M - 15 Nm - 17 rpm - length 646 mm
- Faac TM2 45 32/17 M - 32 Nm - 17 rpm - length 646 mm
- Faac TM2 45 40/17 M - 40 Nm - 17 rpm - length 646 mm
- Faac TM2 45 50/12 M - 50 Nm - 12 rpm - length 646 mm
Important notes
If you are using this motor to replace a defective Altron Black or Altron RadioBlack tubular motor, you should also order the correct adapter set and motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
