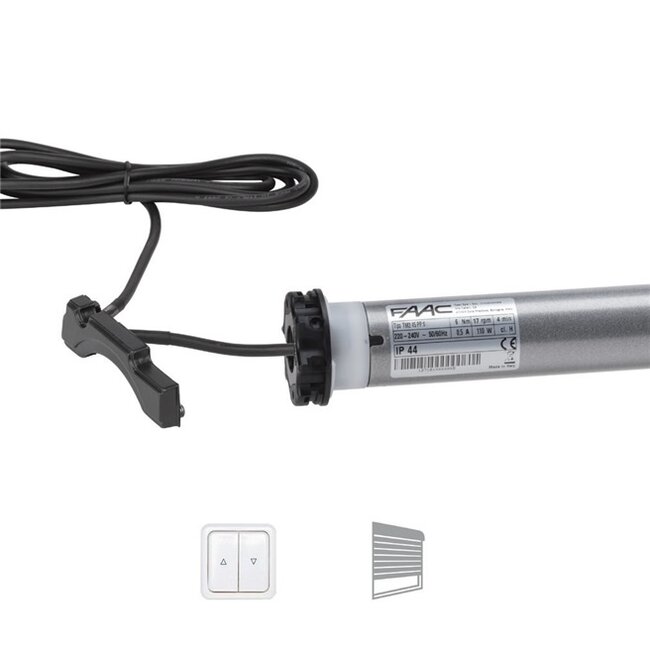

Faac TM2 45 PP Short Plug & Play tubular motor with fully automatic final adjustment

Plug & Play Short tubular motor with fully automatic final adjustment. Only available in 10 Nm with 17 rpm. Motor has no teach-in, set-up or reset procedure. Motor is always sensitive and permanently monitors its movement. They have anti-freezing and blocking recognition in both directions. The detection and setting of the end positions is performed automatically by the upper and lower end positions. Plug & Play motors require rigid connections and a fixed upper and lower stop. In the end position, the Motor briefly turns in the opposite direction to remove tension on the material. It is possible to switch the motors in parallel. Control via a one-way switch is possible. The small motor length of 360 mm makes this motor ideal for small Roller shutters. All this makes this motor a versatile solution!

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- force 10 Nm
- speed 17 rpm
- length 360 mm
- with external electronics

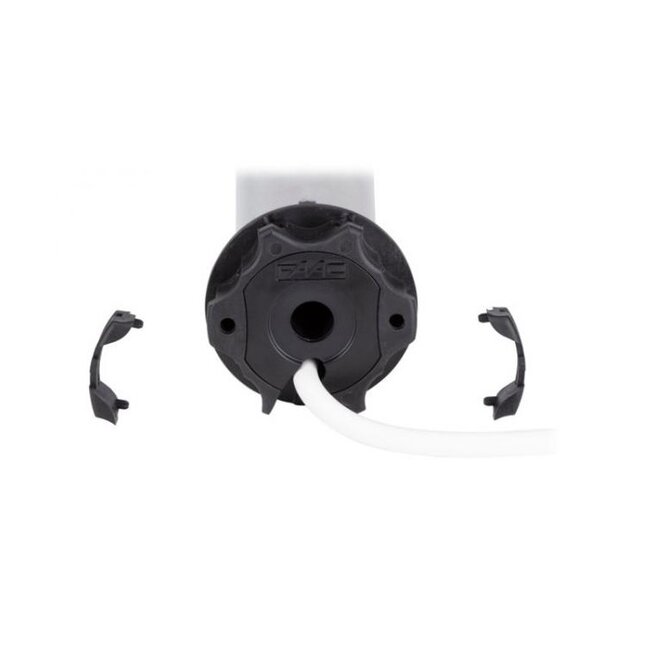

- motor head fits into the most popular motor supports on the market
- suitable for Roller shutters only
- no teach-in or reset procedure necessary
- hindrance detection in both directions
- freeze protection
- lift protection through use of rigid connections
- motors can be connected in parallel
- Faac TM2 45 fits into pipe with a minimum inner diameter of 50 mm
- final adjustment capacity 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Important notes
If you are using this motor to replace a defective Altron Black or Altron RadioBlack tube motor, you should also order the correct adapter set and Motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
Faac's Plug & Play tubular motors require rigid connections and a fixed top and bottom stroke.
