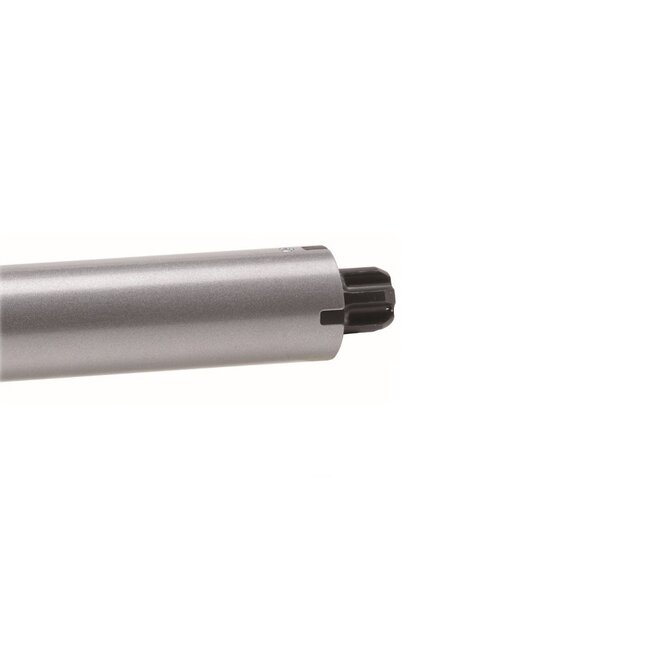

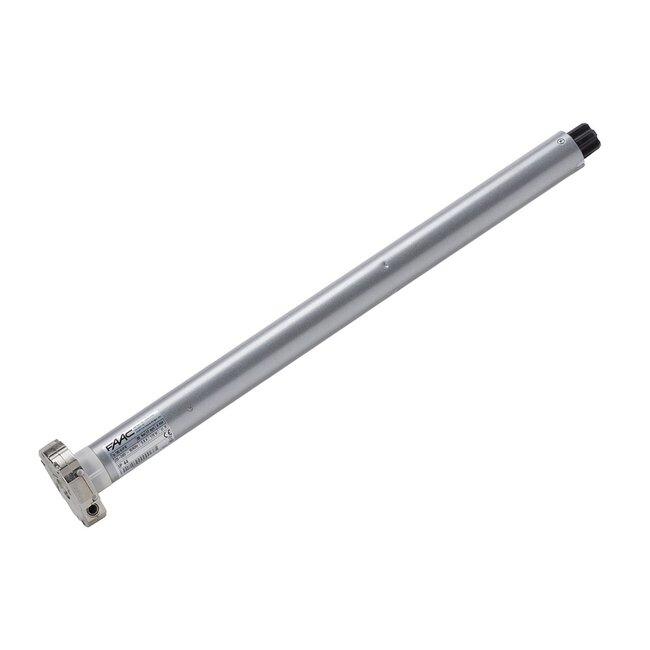

Faac TM2 45 PPM Plug & Play tubular motor with emergency hand control

Plug & Play tubular motor with fully automatic final adjustment and emergency hand control in case of power failure. Available in 10 to 32 Nm with 17 rpm. Motor has no teach-in, set-up or reset procedure. The motors are always sensitive and permanently monitor their travel. They have anti-freeze and obstacle detection in both directions. The detection and setting of the end positions is performed automatically by the upper and lower ends. !

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available in 10 to 32 Nm
- speed 17 rpm

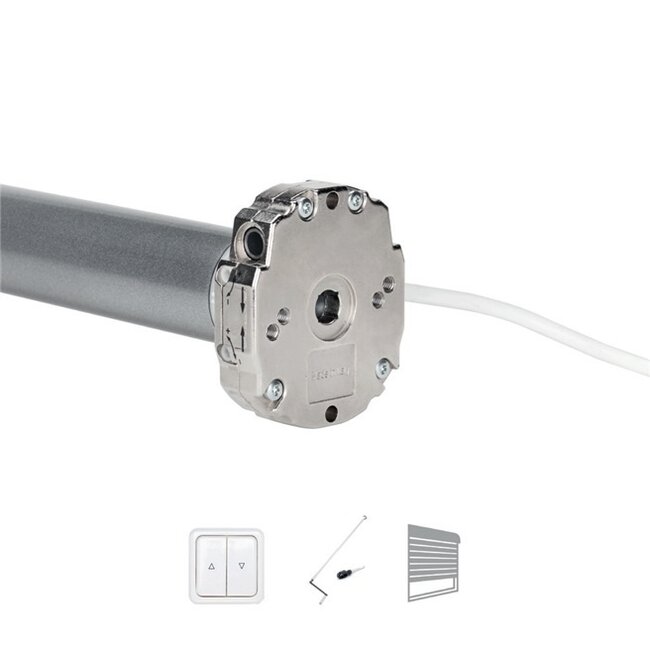

- direct mounting of the metal motor head possible, without special motor support
- suitable for emergency hand lever square 6 mm or hexagon 7 mm
- gear ratio emergency hand lever 1:18
- suitable for Roller shutters only
- no teach-in or reset procedure necessary
- hindrance detection in both directions
- freeze protection
- lift protection through use of rigid connections
- motors can be connected in parallel
- Faac TM2 45 fits into pipe with a minimum inner diameter of 50 mm
- final adjustment capacity 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Faac TM2 45 PPM tube motors
- Faac TM2 45 10/17 PPM - 10 Nm - 17 rpm - length 646 mm
- Faac TM2 45 20/17 PPM - 20 Nm - 17 rpm - length 646 mm
- Faac TM2 45 32/17 PPM - 32 Nm - 17 rpm - length 646 mm

Important notes
If you are using this motor to replace a defective Altron Black or Altron RadioBlack tubular motor, you should also order the correct adapter set and motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
Faac's Plug & Play tubular motors require rigid connections and a fixed top and bottom stroke.
