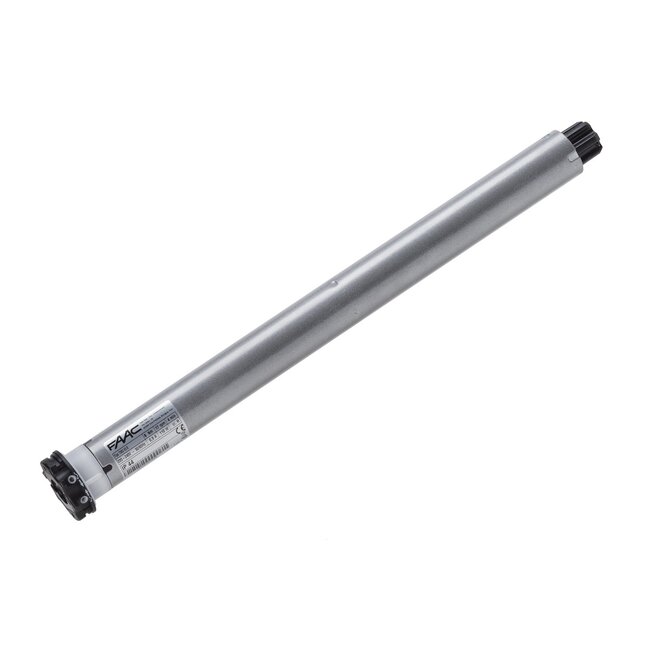

Faac TM2 45 R tubular motor
Tubular motor with mechanical final adjustment and integrated receiver. Suitable for shaft diameters from 50 mm. Available in forces from 10 to 40 Nm with a speed of 17 RPM and in the force 50 Nm with 12 RPM. Parallel switching without relays is possible. Simple and reliable final adjustments, adjustable by adjustment screws on the motor head. Maximum number of revolutions of the Motor is 25. No obstacle detection. Control via remote control or pulse switch. Ideal for roller shutters, awnings and screens. The simple installation procedure and the comfort of remote control make this motor also suitable for installers with little experience.
- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- available with a speed of 12 and 17 rpm
- available in 10 to 50 Nm
- motor head fits the most popular motor supports on the market
- suitable for roller shutters, screens and (vertical) blinds
- Handheld transmitter is easy to program

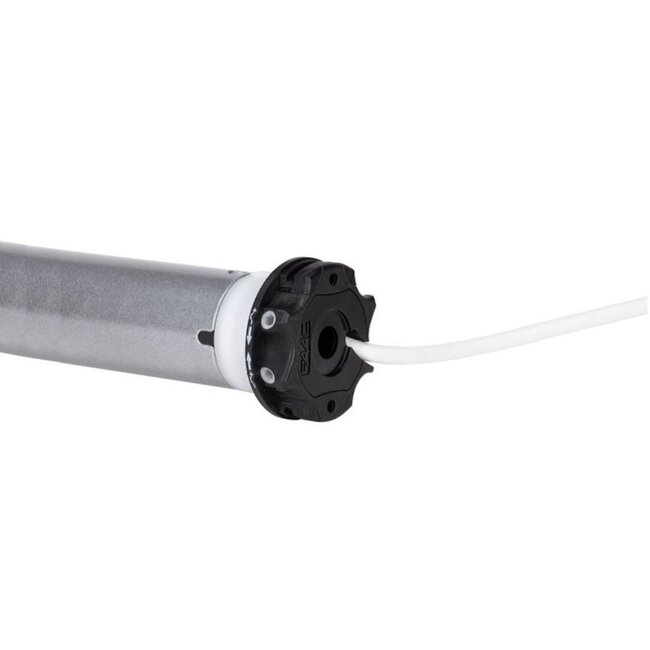

- simple and precise adjustment of the mechanical end positions
- motors can be connected in parallel
- Faac TM2 45 fits into pipe with a minimum inner diameter of 50 mm
- final adjustment capacity 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use
Type Faac TM2 45 R tubular motors
- Faac TM2 45 10/17 R - 10 Nm - 17 rpm - length 646 mm
- Faac TM2 45 15/17 R - 15 Nm - 17 rpm - length 646 mm
- Faac TM2 45 25/17 R - 25 Nm - 17 rpm - length 646 mm
- Faac TM2 45 32/17 R - 32 Nm - 17 rpm - length 646 mm
- Faac TM2 45 40/17 R - 40 Nm - 17 rpm - length 646 mm
- Faac TM2 45 50/12 R - 50 Nm - 12 rpm - length 646 mm
Important notes
If you are using this motor to replace a defective Altron Black or Altron RadioBlack tubular motor, you should also order the correct adapter set and motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
Faac's Plug & Play tubular motors require rigid connections and a fixed top and bottom stroke.
The old Faac TM and Altron handheld transmitters are also not compatible with the new Faac TM2 remote controls.
