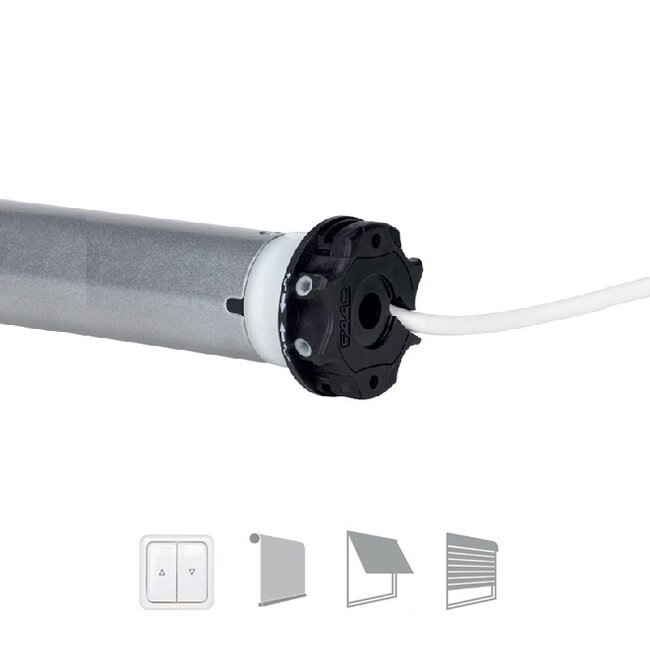

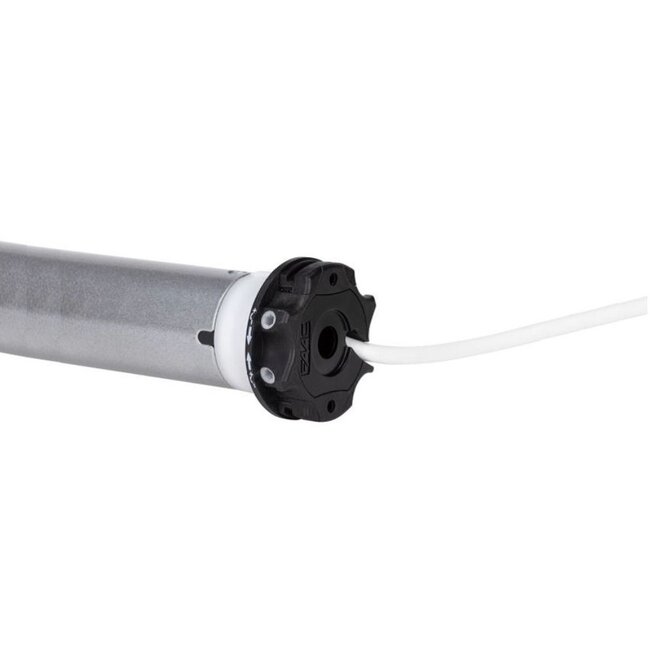

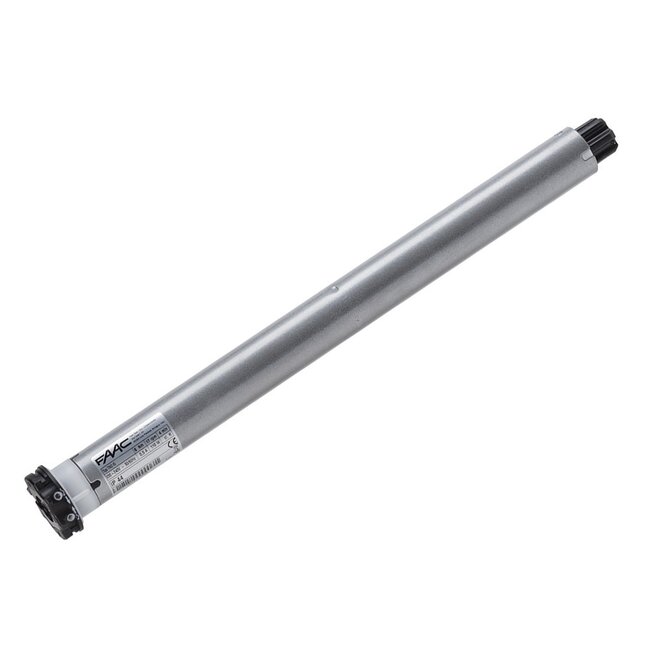

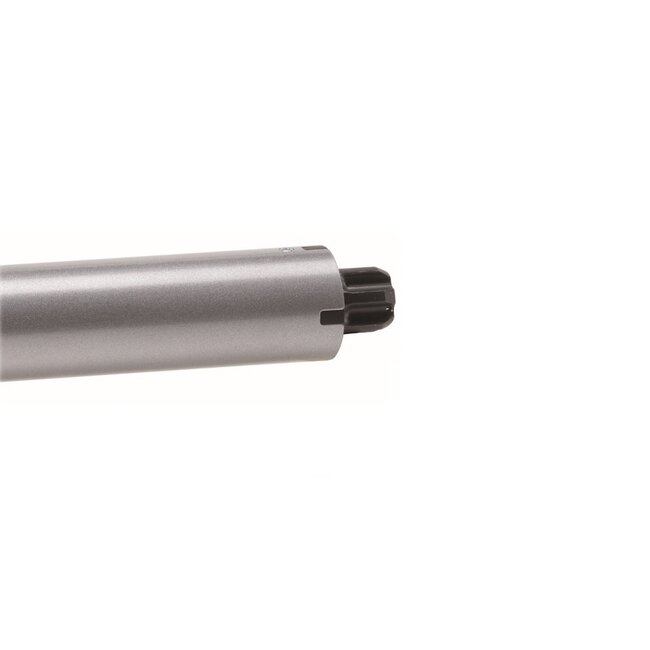

Faac TM2 45 tube motor
As of early 2024, Faac has stopped supplying motors for residential roller shutters and blinds. These products will now be continued by Cherubini, the company that has always manufactured the motors for Faac. We are currently phasing out Faac motors, so you may already receive a Cherubini motor with the same specifications.
Motor with mechanical final adjustment, suitable for shaft diameters from 50 mm. Available in forces from 6 to 40 Nm at 17 rpm and in the force 50 Nm at 12 rpm. Without relays, the motors cannot be switched in parallel. Simple and reliable final adjustments, adjustable by adjustment screws on the motor head. No obstacle detection. Ideal for roller shutters, awnings and screens.
- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available with a speed of 12 and 17 rpm
- available in 6 to 50 Nm
- motor head fits the most popular motor supports on the market
- suitable for roller shutters, awnings and screens
- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- Faac TM2 45 fits into pipe with a minimum inner diameter of 50 mm
- final adjustment capacity 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use
Type Faac TM2 45 tubular motors
- Faac TM2 45 6/17 - 6 Nm - 17 rpm - length 476 mm
- Faac TM2 45 10/17 - 10 Nm - 17 rpm - length 496 mm
- Faac TM2 45 15/17 - 15 Nm - 17 rpm - length 546 mm
- Faac TM2 45 25/17 - 25 Nm - 17 rpm - length 546 mm
- Faac TM2 45 30/17 - 30 Nm - 17 rpm - length 546 mm
- Faac TM2 45 40/17 - 40 Nm - 17 rpm - length 546 mm
- Faac TM2 45 50/12 - 50 Nm - 12 rpm - length 546 mm
Download here the manual of the Faac TM2 45 tubular motor
Important notes
If you are using this motor to replace a defective Altron Black or Altron RadioBlack tubular motor, you should also order the correct adapter set and Motor support with it. The motor support and adapter set of Altron and Faac TM2 tubular motors are not compatible with each other.
