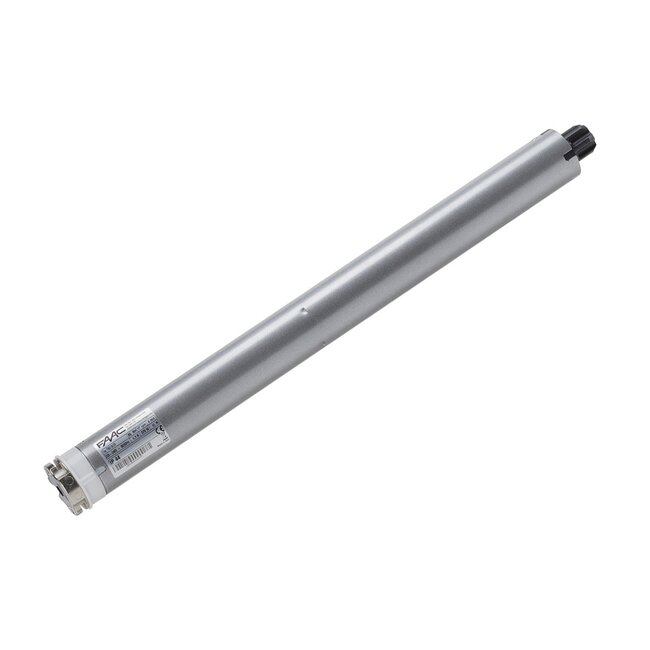

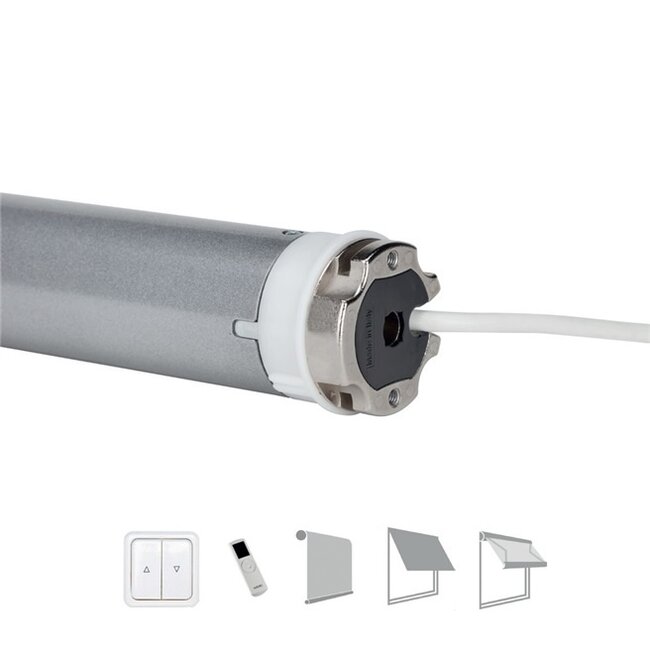

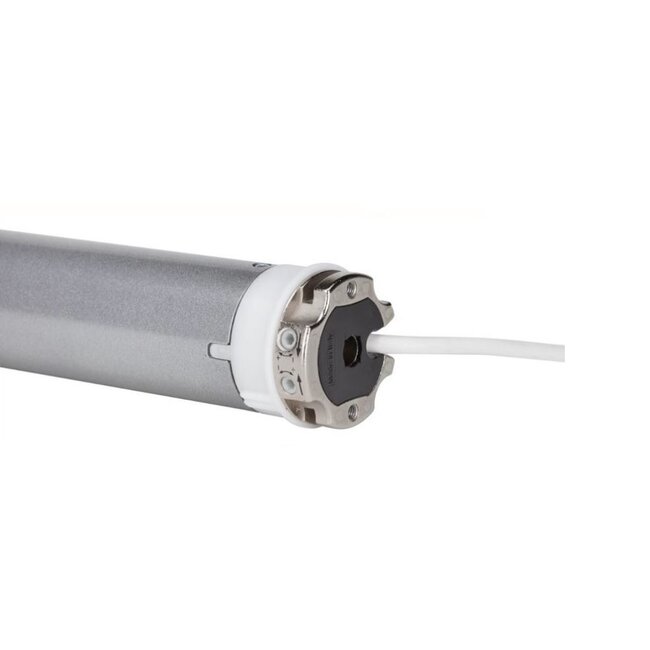

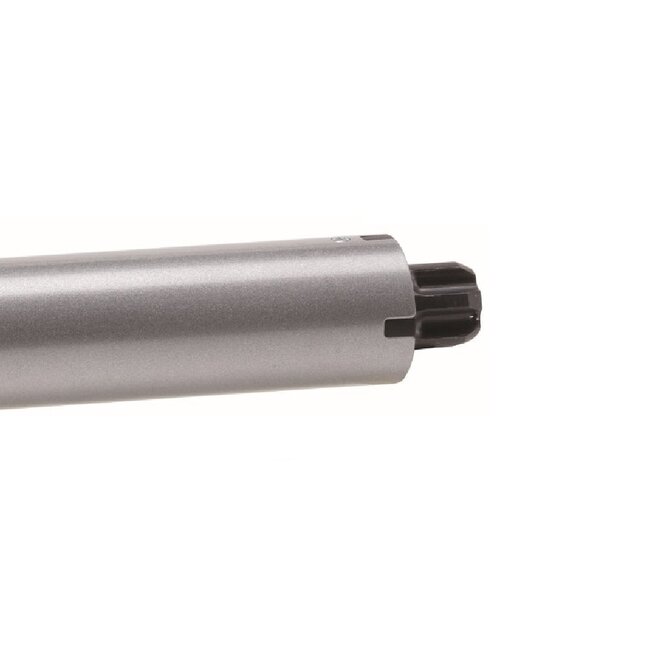

Faac TM2 58 ERY tubular motor

Tubular motor with electronic final adjustment and integrated receiver, suitable for shaft diameters from 70 mm. Available in 85 Nm force at 17 rpm and 100 and 120 Nm force at 11 rpm. Parallel connection of these tubular motors is possible without additional control/relay. Simple adjustment of the end positions via the Handheld transmitter. Maximum number of Motor revolutions is 25.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- with integrated receiver 433 MHz
- simple adjustment of the end positions via the handheld transmitter
- available with a speed of 11 and 17 rpm
- available in 85, 100 and 120 Nm
- motor head fits into the most popular motor supports on the market
- automatic or manual roller shutter adjustment procedures
- adjustable top and bottom positions for awnings
- fabric stretch compensation for cassette awnings
- sun/wind sensor can be programmed via radio
- Motor is equipped with anti-freeze protection
- overload switching in both directions
- automatic rotation command during the setting procedure
- parallel switching possible without additional control
- Control is possible by remote control
- ideal for many applications
- Adjustable favourite intermediate position possible
- Faac TM2 58 ERY fits pipes with a minimum inside diameter of 70 mm
- final adjustment capacity 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Faac TM2 58 ERY tubular motors

- Faac TM2 58 ERY 85/17 - 6 Nm - 17 rpm - length 646 mm
- Faac TM2 58 ERY 100/11 - 10 Nm - 11 rpm - length 646 mm
- Faac TM2 58 ERY 120/11 - 15 Nm - 11 rpm - length 646 mm
