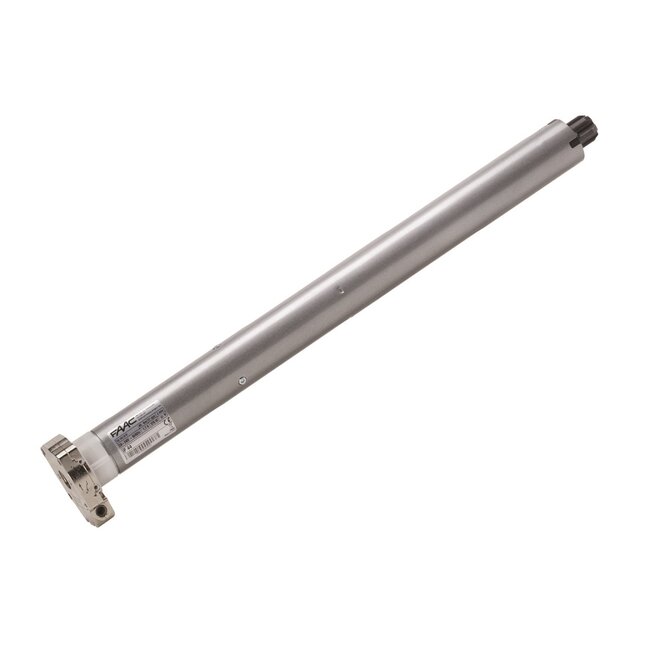

Faac TM2 58 M tubular motor

Faac discontinued tubular motors at the end of 2023, this tubular motor has been replaced by the Cherubini Ocean Ø 58 tubular motor with emergency hand control Cherubini is a renowned Italian manufacturer and has been the producer of these items from Faac for many years.

Tubular motor with mechanical end adjustment and emergency hand control. Suitable for shaft diameters from 70 mm. Available with a force of 85 Nm at 17 rpm, and 100 and 120 Nm at 11 rpm. Simple and reliable final adjustments, adjustable by adjustment screws on the motor head. Maximum number of revolutions of the motor is 25. The motor is equipped with a mechanical end position and an integrated emergency hand control. The Motor does not lose its end positions when manual control is used. The Motor offers various mounting possibilities, as the cranks can be mounted on both sides using control shafts. Motor cannot be switched in parallel, without relay. No obstacle detection. Ideal for roller shutters, roller gates and (cassette) blinds.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- emergency hand control
- fixing eye 6 mm square or 7 mm hexagonal
- available with a speed of 11 and 17 rpm
- available in 85, 100 and 120 Nm

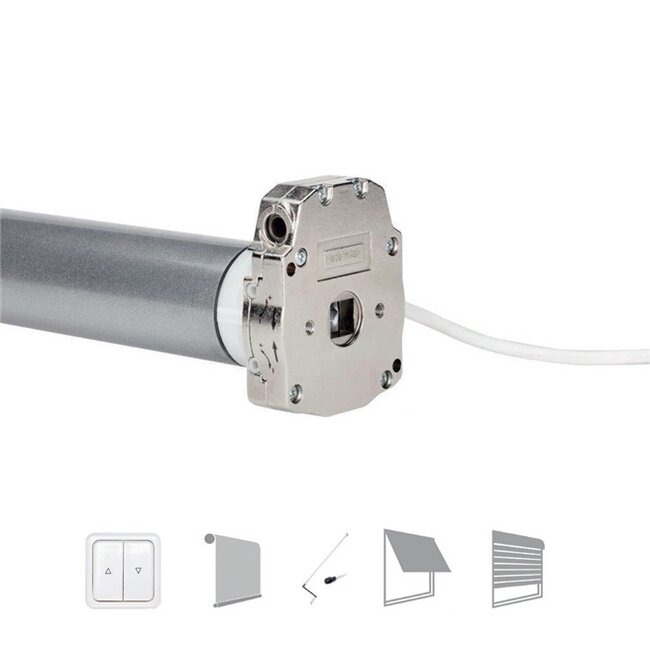

- direct fixing of the metal motor head possible, without special motor support
- suitable for roller shutters and (cassette) blinds
- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- Faac TM2 58 fits in tubes with a minimum inner diameter of 70 mm
- capacity of the final adjustment 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Faac TM2 58 M tubular motors
- Faac TM2 58 M 85/17 - 85 Nm - 17 rpm - length 646 mm
- Faac TM2 58 M 100/11 - 100 Nm - 11 rpm - length 646 mm
- Faac TM2 58 M 120/11 - 120 Nm - 11 rpm - length 646 mm
