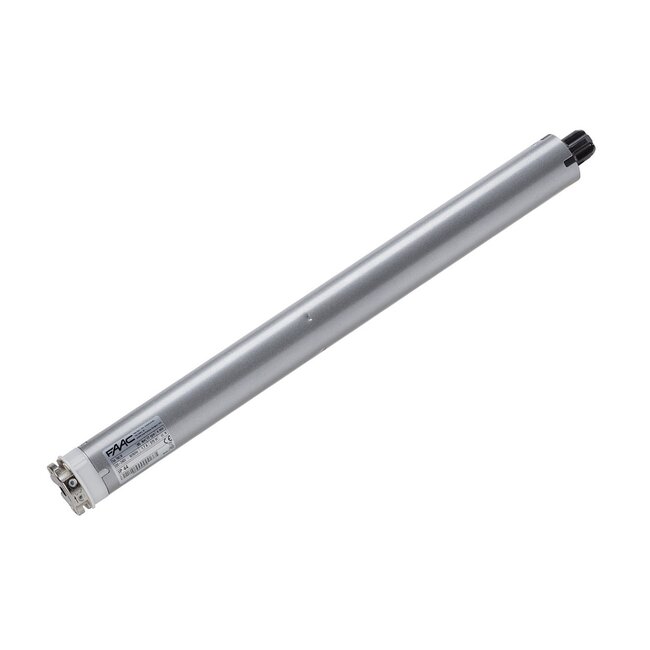

Faac TM2 58 tubular motor

Faac discontinued tubular motors at the end of 2023, this tubular motor has been replaced by the Cherubini Garda Ø 58 tubular motor with metal motor head Cherubini is a renowned Italian manufacturer and has been the producer of these items from Faac for many years.

Tubular motor with mechanical final adjustment, suitable for shaft diameters from 70 mm. Available in force 85 Nm at 17 rpm and in force 100 and 120 Nm at 11 rpm. Without relays, the motors cannot be switched in parallel. Simple and reliable final adjustments, adjustable by adjustment screws on the motor head. Maximum number of revolutions of the Motor is 25. No obstacle detection. Ideal for roller shutters, roller gates and awnings.

- Supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- available with a speed of 11 and 17 rpm
- available in 85, 100 and 120 Nm

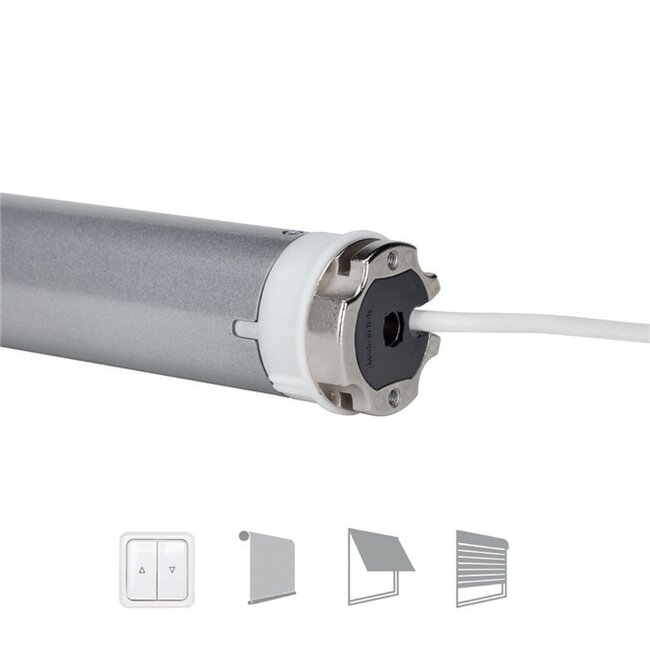

- motor head fits the most popular motor supports on the market
- suitable for roller shutters, awnings and screens

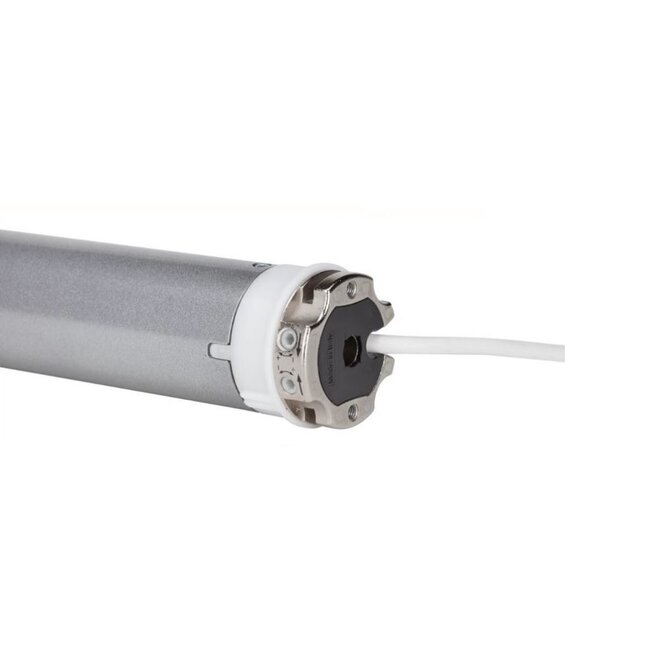

- simple and precise adjustment of the end positions
- motors cannot be connected in parallel
- Faac TM2 58 fits into tube with a minimum inner diameter of 70 mm
- end position adjustment capacity 25 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Faac TM2 58 tubular motors
- Faac TM2 58 85/17 - 6 Nm - 17 rpm - length 646 mm
- Faac TM2 58 100/11 - 10 Nm - 11 rpm - length 646 mm
- Faac TM2 58 120/11 - 15 Nm - 11 rpm - length 646 mm
