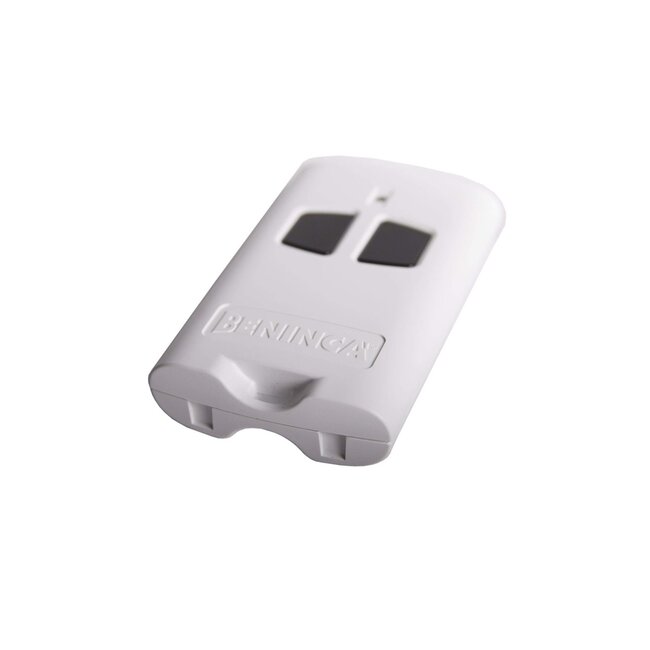

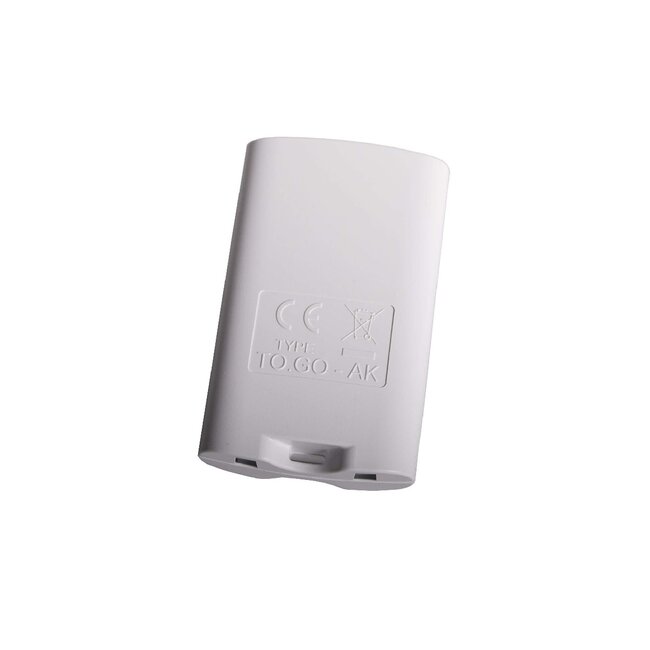

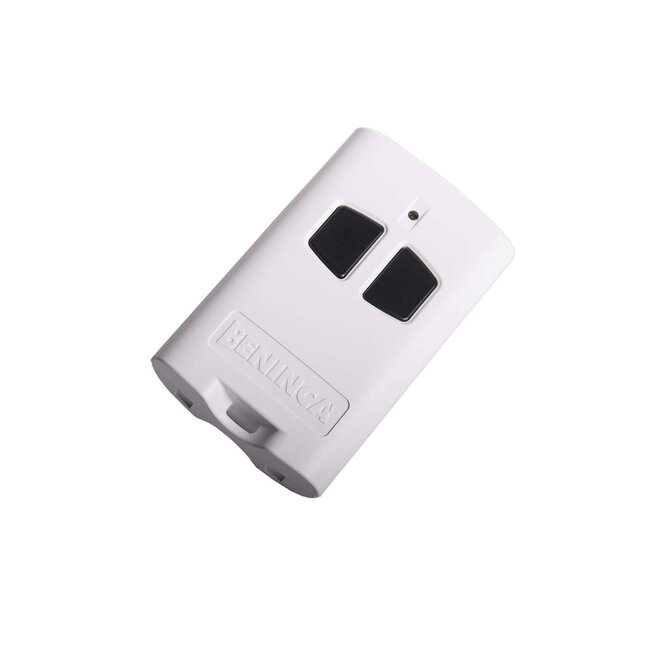

Beninca TO.GO2AK handheld transmitter

This replacement Beninca transmitter is specially designed to replace all old Beninca handheld transmitters at 433.92 Mhz. Programming the remote is easy and it takes over the code of the existing old remote. With this transmitter, you can effortlessly upgrade your system and benefit from improved functionality.

In addition, this transmitter can also be used as a replacement or additional transmitter for several other Beninca transmitters at 433.92 Mhz with dipswitches. The TO.GO4AK is compatible with the following models, among others: T4WK, LO.T2WMS, TO.GO4WP, TO.GO4WK. This offers flexibility and allows the transmitter to be used with various systems.

We recommend cloning an original 2-channel transmitter with the TO.GO2AK for optimal performance. Please refer to the manual in the attached PDF file for detailed instructions. For more product information, please refer to the available documentation.

Choose this replacement transmitter and upgrade your system effortlessly. Benefit from easy programming and compatibility with multiple brands and models at 433.92 Mhz. For full instructions and specifications, please refer to the PDF file attached.

- frequency 433 MHz
- 2-channel transmitter
- colour white with grey buttons
- replacement of the old type TO.GO2WK
- transmitter is easy to clone

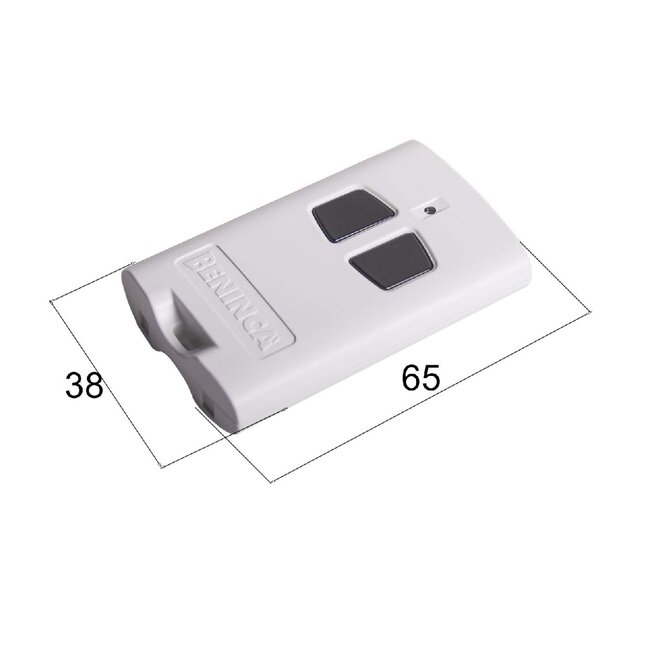

- dimensions 65 x 40 x 14 mm
- comes with 12 Volt battery 23AE

Procedure for cloning the Beninca to GO 2 AK handheld transmitter

FAST CLONING
Quick cloning gives you a handheld transmitter that exactly copies every channel (button) of the original transmitter into the new TO.GOAK transmitter. We recommend cloning a TO.GO2AK with an original 2-channel Transmitter.

Proceed as follows: (place the Handheld transmitters side by side)

1. Hold down button T1 of the new TO.GOAK transmitter. When pressing the T1 button, the LED will light continuously, after 5 seconds it will start blinking rapidly and after 15 seconds it will start blinking slowly.

2. Continue to hold the T1 button of the new Handheld transmitter and press a button of the original(old) Handheld transmitter.

3. When the procedure is successful, the LED of the new (TO.GOAK) will go out. Release all pressed buttons. All channels of the original handheld transmitter have been copied to the new handheld transmitter. Use charged batteries for both Handheld transmitters.

If after 15 seconds the red LED on the new handheld transmitter is not off, copying has not been successful. Release all buttons.
After 1 minute, try again from step 1. Be careful to place the transmitters next to each other.

ADVANCED CLONING
In advanced cloning, you can choose which channel (button) of the original Handheld transmitter you want to copy to the TO.GOAK.
For example, you can copy channel 3 of an old Handheld transmitter to channel 1 of the TO.GOAK, this cannot be done with quick cloning.

Proceed as follows: (place the handheld transmitters side by side)

1. Hold the button of the TO.GOAK to which you want to copy the function of the original(old) transmitter. When you press the button, the LED will light continuously, after 5 seconds it will start blinking rapidly.

2. After 5 seconds, hold the original TO.GO Handheld transmitter against the new Handheld transmitter as shown and continue to hold the button of the new Handheld transmitter and press the appropriate button of the original(old) Handheld transmitter from which you want to copy the code.

3. When the procedure is successful, the LED of the new (TO.GOAK) will turn off. Release all pressed buttons. The selected channel of the original handheld transmitter has now been copied to the new TO.GOAK transmitter. Use charged batteries for both Handheld transmitters.

If after 15 seconds the red LED on the new handheld transmitter is not off, copying has not been successful. Release all buttons. After 1 minute, try again from step 1. Make sure you place the transmitters next to each other
