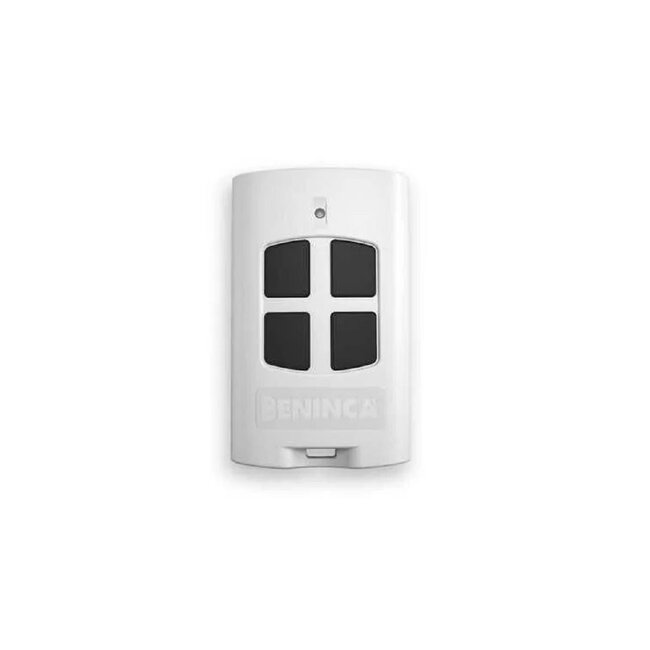

Beninca TO.GO4AK handheld transmitter

The BENINCA 4-channel Handheld transmitter offers an exceptional level of security and convenience for your access control system. With its unique ARC rolling code technology, this handheld transmitter is non-copyable, ensuring the security of your access at all times.

BENINCA's ARC rolling code is an advanced and unique code (128 bit instead of 64 bit) that is sent with every signal sent with the Transmitter. This ensures maximum security of your transmitter/receiver system, virtually eliminating unauthorised access.

This Handheld transmitter serves as a replacement for the TO.GO4WV transmitter and can be perfectly combined with your existing transmitters. By default, the transmitter is set to ARC rolling code. If you want to use the transmitters in combination with the existing TO.GO4WV transmitters, follow the instructions as described below.

Choose the BENINCA 4-channel Handheld transmitter with ARC rolling code and enjoy maximum security and compatibility with your existing transmitters.

- frequency 433 MHz
- 4-channel transmitter
- colour white with grey buttons
- replacement of old type TO.GO2WK
- transmitter is easy to clone
- dimensions 65 x 40 x 14 mm
- comes with 12 Volt battery 23AE

Procedure for cloning the Beninca to GO 4 AK handheld transmitter

FAST CLONING
Quick cloning gives you a handheld transmitter that exactly copies every channel (button) of the original transmitter into the new TO.GO 4 AK transmitter. We recommend cloning a TO.GO 4 AK with an original 4-channel Transmitter.

Proceed as follows: (place the Handheld transmitters side by side)

1. Hold down button T1 of the new TO.GO 4 AK Transmitter. When pressing the T1 button, the LED will light continuously, after 5 seconds it will start blinking rapidly and after 15 seconds it will start blinking slowly.

2. Continue to hold the T1 button of the new Handheld transmitter and press a button of the original(old) Handheld transmitter.

3. When the procedure is successful, the LED of the new (TO.GO 4 AK) will turn off. Release all pressed buttons. All channels of the original handheld transmitter have been copied to the new handheld transmitter. Use charged batteries for both Handheld transmitters.

If after 15 seconds the red LED on the new handheld transmitter is not off, copying has not been successful. Release all buttons.
After 1 minute, try again from step 1. Be careful to place the transmitters next to each other.

ADVANCED CLONING
In advanced cloning, you can choose which channel (button) of the original Handheld transmitter you want to copy to the TO.GO 4 AK.
For example, you can copy channel 3 of an old Handheld transmitter to channel 1 of the TO.GO 4 AK, this cannot be done with quick cloning.

Proceed as follows: (place the handheld transmitters side by side)

1. Hold the button of the TO.GO 4 AK to which you want to copy the function of the original(old) Transmitter. When you press the button, the LED will light continuously, after 5 seconds it will start blinking rapidly.

2. After 5 seconds, hold the original TO.GO handheld transmitter against the new handheld transmitter as shown and continue to hold the button of the new handheld transmitter and press the appropriate button of the original(old) handheld transmitter from which you want to copy the code.

3. When the procedure is successful, the LED of the new (TO.GO 4 AK) will turn off. Release all pressed buttons. The selected channel of the original handheld transmitter has now been copied to the new TO.GOAK transmitter. Use charged batteries for both Handheld transmitters.

If after 15 seconds the red LED on the new handheld transmitter is not off, copying has not been successful. Release all buttons. After 1 minute, try again from step 1. Make sure you place the transmitters next to each other
