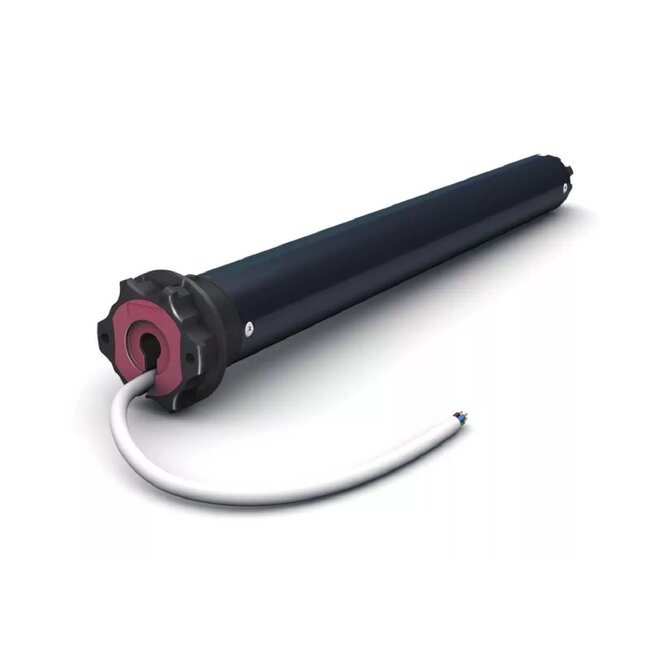

Cherubini Tronic RX Ø 45 tubular motor with receiver and electronic adjustment

Cherubini Tronic RX Ø 45 tubular motor

Tubular motor with electronic final adjustment, integrated receiver and possibility of connecting pulse push button. Settings are easily and accurately adjusted with a handheld transmitter, supported by encoder technology for accuracy and reliability. The system includes a secure Rolling Code decoder system, and offers both manual and semi-automatic settings for end positions. Additional functions include frost protection, blocking detection. Programming of the tubular motor can be done via handheld transmitter or a button.

- Supplied without motor support and adapter set
- Tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- memory for 15 handheld transmitters
- available in 10 to 50 Nm
- speed of 12 or 17 rpm, depending on force

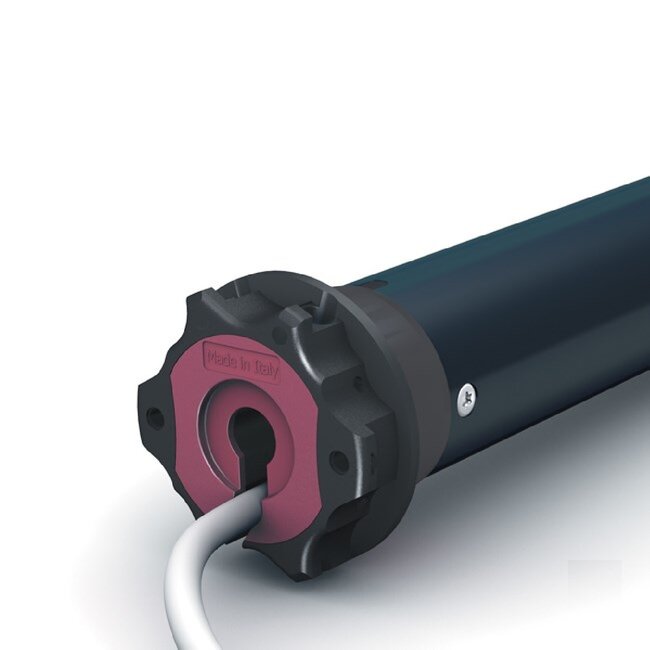

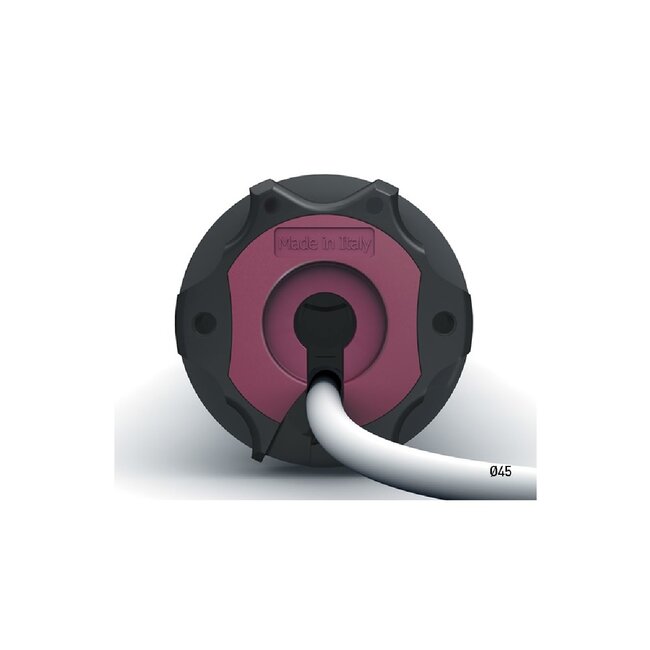

- motor head with adapter to fit the most popular motor supports on the market
- suitable for roller shutters, awnings and screens
- easily programmable handheld transmitter
- manual adjustment of the end positions with standard springs
- semi-automatic setting of the end positions with rigid connections
- frost protection and blocking detection when rigid connections are used
- Motor can be connected in parallel
- tubular motor fits pipes with a minimum inner diameter of 50 mm
- final adjustment capacity 35 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Download here the Cherubini Tronic RX tubular motor manual - short
Download here the Cherubini Tronic RX tubular motor manual
Go here to the installation video on Youtube

Type Cherubini Tronic RX Ø 45 tubular motor
- Cherubini Tronic RX 10/17 - 10 Nm - 17 rpm - 135 Watt - length 488 mm
- Cherubini Tronic RX 15/17 - 15 Nm - 17 rpm - 170 Watt - length 503 mm
- Cherubini Tronic RX 25/17 - 25 Nm - 17 rpm - 225 Watt - length 543 mm
- Cherubini Tronic RX 32/17 - 32 Nm - 17 rpm - 250 W - length 543 mm
- Cherubini Tronic RX 40/17 - 40 Nm - 17 rpm - 275 W - length 543 mm
- Cherubini Tronic RX 50/12 - 50 Nm - 12 rpm - 275 W - length 543 mm
