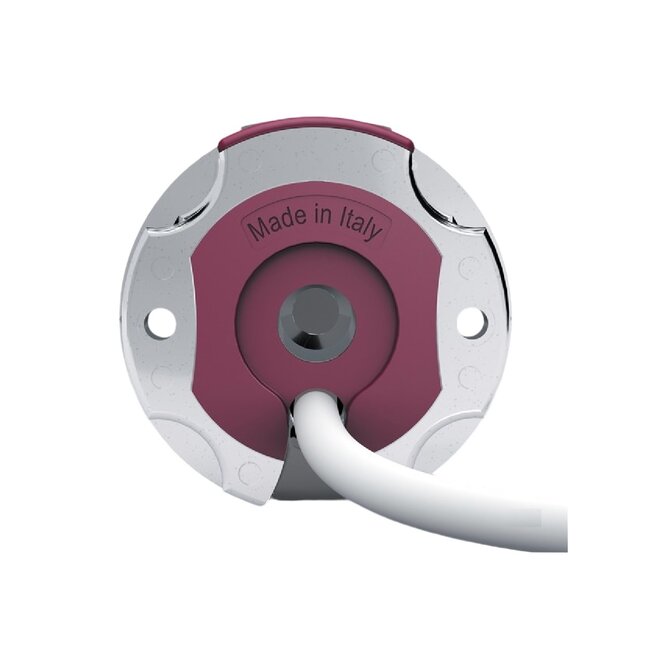

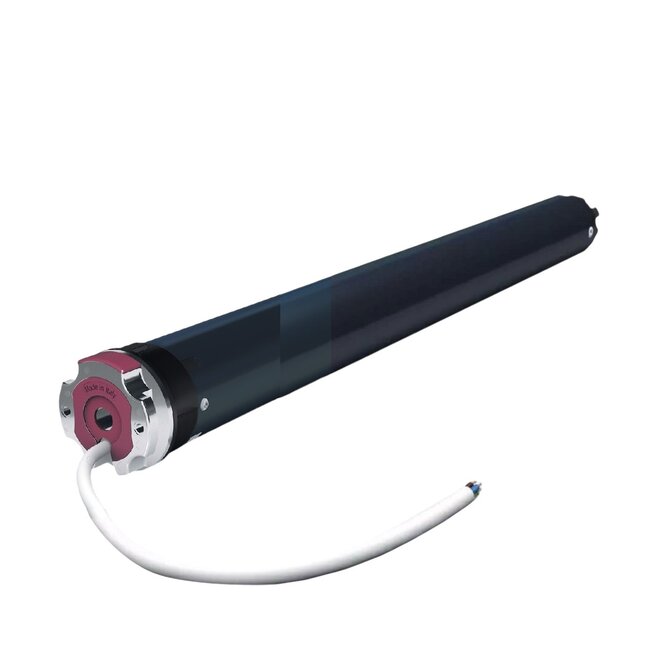

Cherubini Tronic RX Ø 58 tubular motor

This tubular motor is equipped with electronic final adjustment, a built-in receiver, and offers the possibility of connecting a pulse push button. Settings can be easily and precisely adjusted with a Handheld transmitter, thanks to the use of encoder technology that ensures precision and reliability. The system uses a secure Rolling Code decoder system and supports both manual and semi-automatic settings for the end positions. Moreover, it offers additional functions such as frost protection and blocking detection. The tubular motor can be programmed via handheld transmitter or a button.

- Supplied without motor support and adapter set

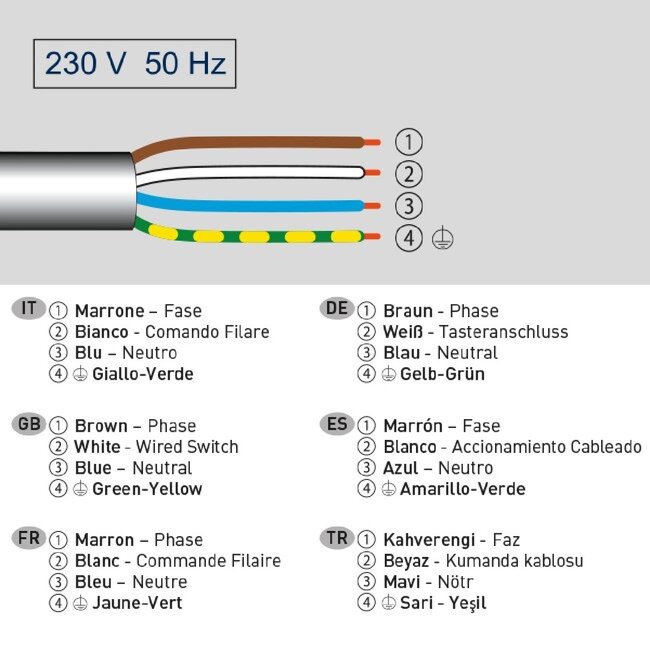

- tubular motor 230 V/50 Hz
- with integrated radio receiver 433 MHz
- memory for 15 handheld transmitters
- available in 65, 85, 100 & 120 Nm
- speed 11 & 17 rpm, depending on the force
- suitable for roller shutters, awnings and screens
- easy to program Handheld transmitter
- manual adjustment of the end positions with standard springs
- frost protection and blocking detection when rigid connections are used
- Motor can be connected in parallel
- tubular motor fits in tubes with a minimum inner diameter of 60 mm
- final adjustment capacity 35 revolutions
- supplied as standard with a white cable, length 2.5 metres
- not suitable for continuous use

Type Cherubini Tronic RX Ø 58 tubular motor
- Cherubini Tronic RX 65/17 - 65 Nm - 17 rpm - 330 Watt - length 646 mm
- Cherubini Tronic RX 85/17 - 85 Nm - 17 rpm - 375 Watt - length 646 mm
- Cherubini Tronic RX 100/11 - 100 Nm - 11 rpm - 360 W - length 646 mm
- Cherubini Tronic RX 120/11 - 120 Nm - 11 rpm - 415 Watt - length 646 mm
