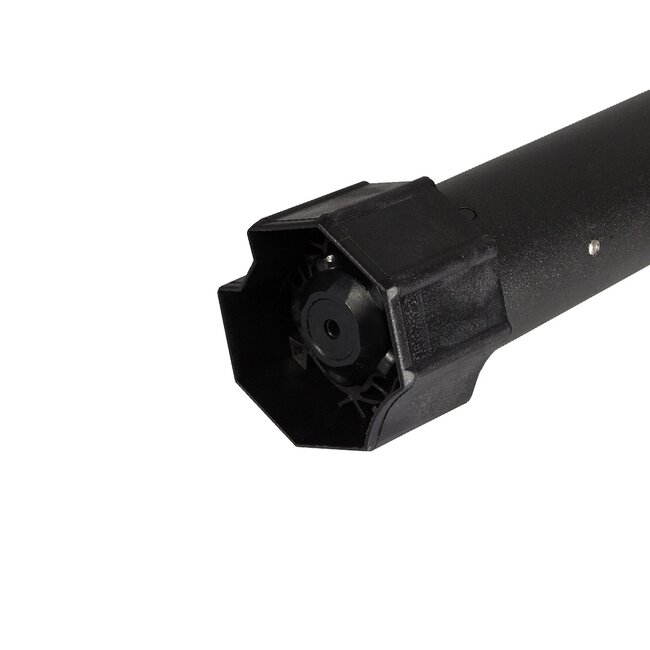

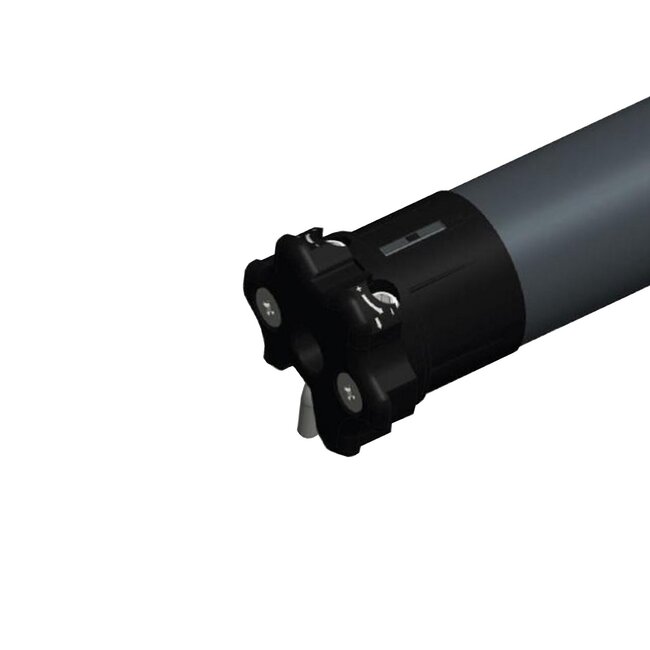

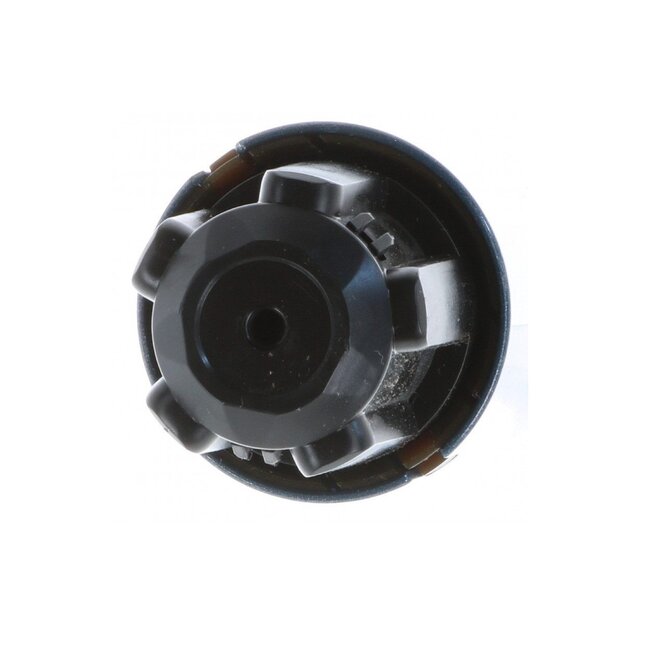

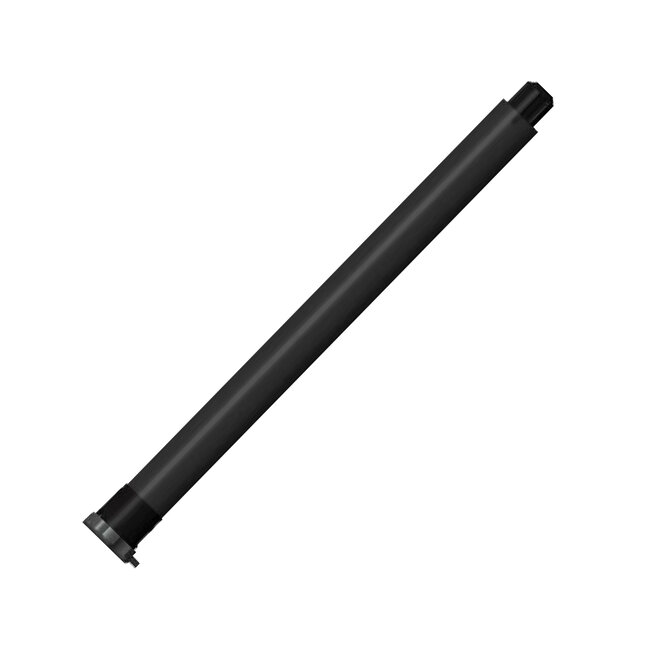

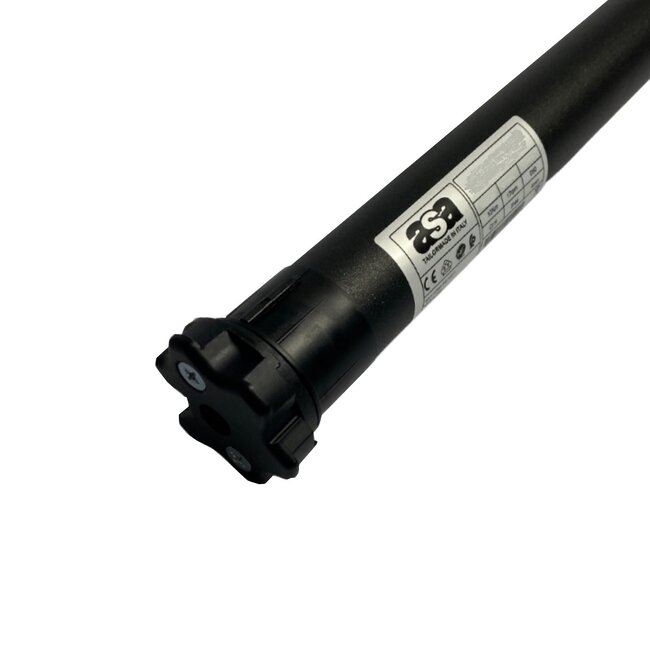

Asa Marconi 50 ST tubular motor with integrated receiver

- suitable for blinds and roller shutters
- easy adjustment with handheld transmitter
- supplied without motor support and adapter set
- not suitable for the adapters of old Asa motors
- compatible with all Somfy adapters for the LT50 series
- tubular motor with a diameter of Ø 45
- electronic final adjustment
- tubular motor 230 V/50 Hz
- speed 12 and 17 rpm
- available in 10 to 50 Nm
- 3-core white cable with a length of 2.5 metres
- tubular motor fits in tube with a minimum diameter of Ø 50 mm
- not suitable for continuous use.

Type Asa Marconi 50 ST tubular motors
Asa Marconi 50 ST 10 Nm - 17 rpm, 120 Watt, length 573 mm
Asa Marconi 50 ST 15 Nm - 17 rpm, 150 W, length 593 mm
Asa Marconi 50 ST 20 Nm - 17 rpm, 190 W, length 593 mm
Asa Marconi 50 ST 30 Nm - 17 rpm, 240 W, length 628 mm
Asa Marconi 50 ST 40 Nm - 17 rpm, 240 Watt, length 628 mm
Asa Marconi 50 ST 50 Nm - 12 rpm, 240 Watt, length 628 mm
