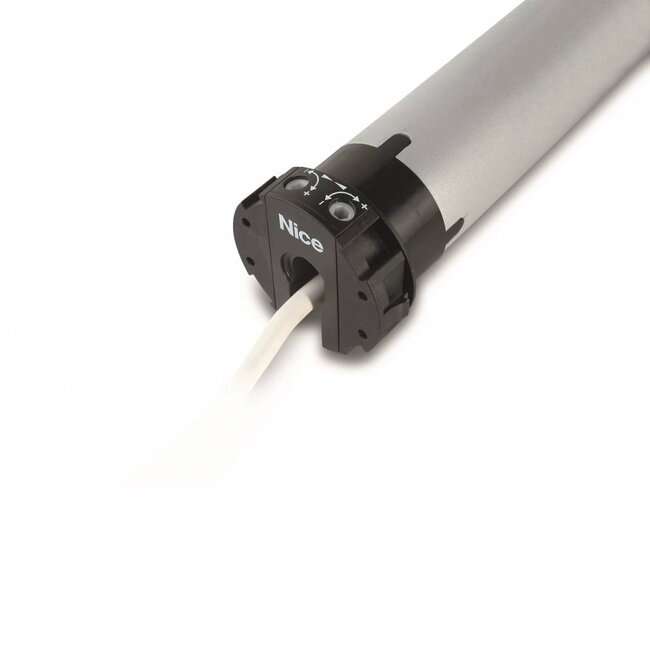

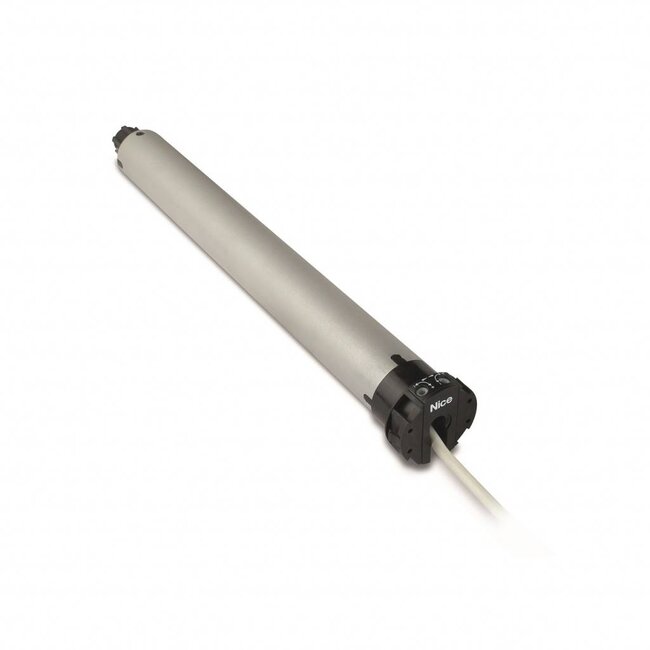

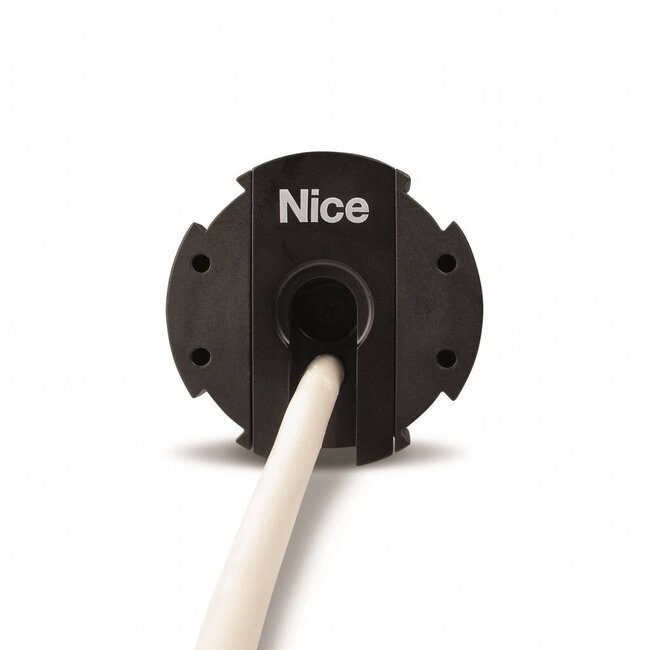

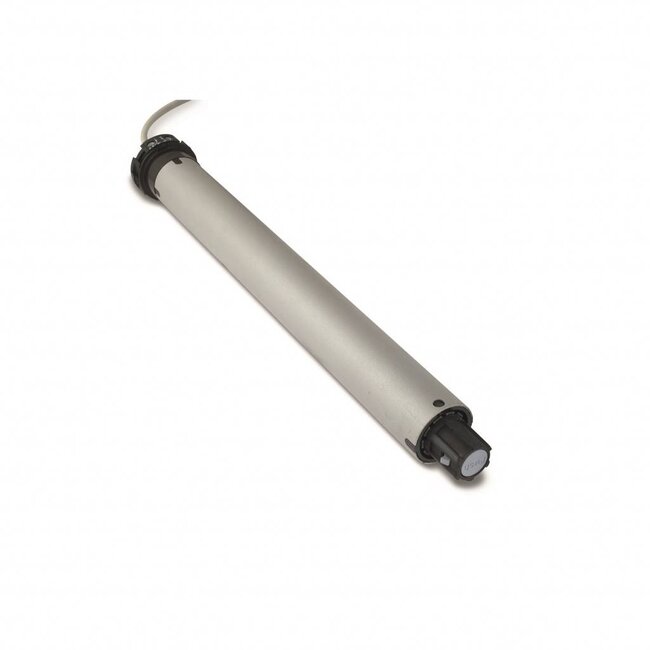

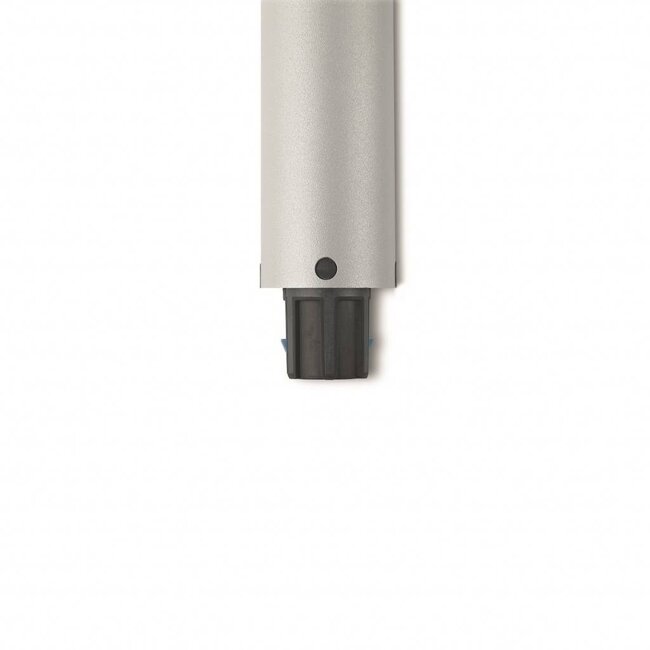

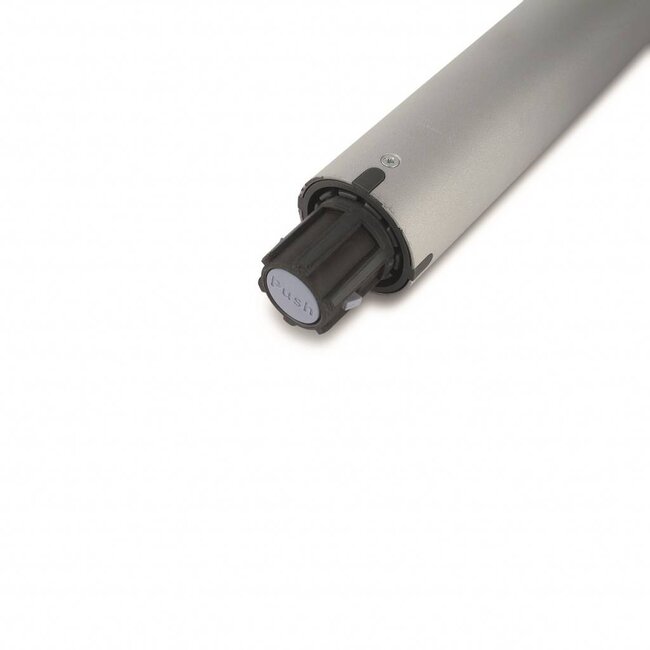

Nice Era M tubular motor for blinds and roller shutters

Tubular motor particularly suitable for narrow and small roller shutters, motors from 8 Nm with a length of 426 mm, up to larger systems with the 50 Nm and 12 revolutions per minute. With the mechanical limit switches, you can easily adjust the open and close positions. Simple mounting thanks to the new compact motor supports and the innovative click system to attach the adapter set. With an additional control box, you can make a wired and/or wireless connection to climate sensors.

- successor to the Nice OneMax and Nice NeoM series
- suitable for blinds and roller shutters

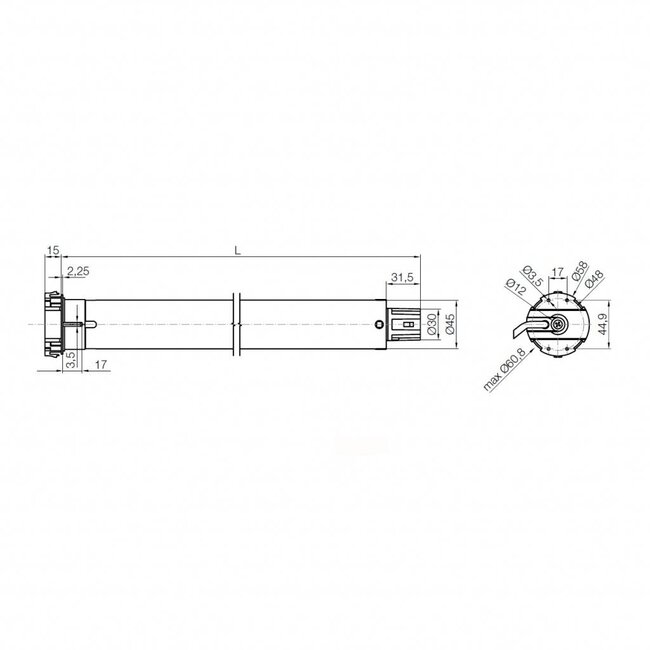

- Nice M series tubular motor with a diameter of Ø 45 mm

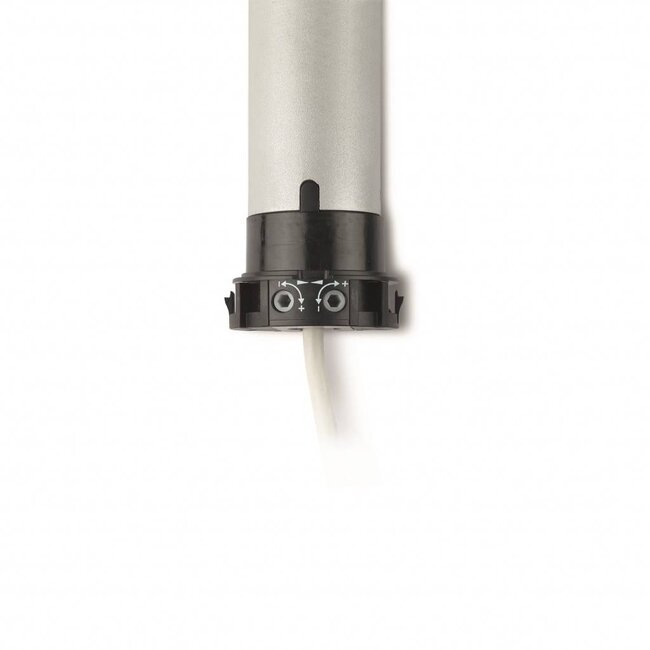

- mechanical adjustment with turning pins
- supplied without motor support and adapter set
- tubular motor 230 V/50 Hz
- speed 12 rpm and 17 rpm
- available in 8 to 50 Nm

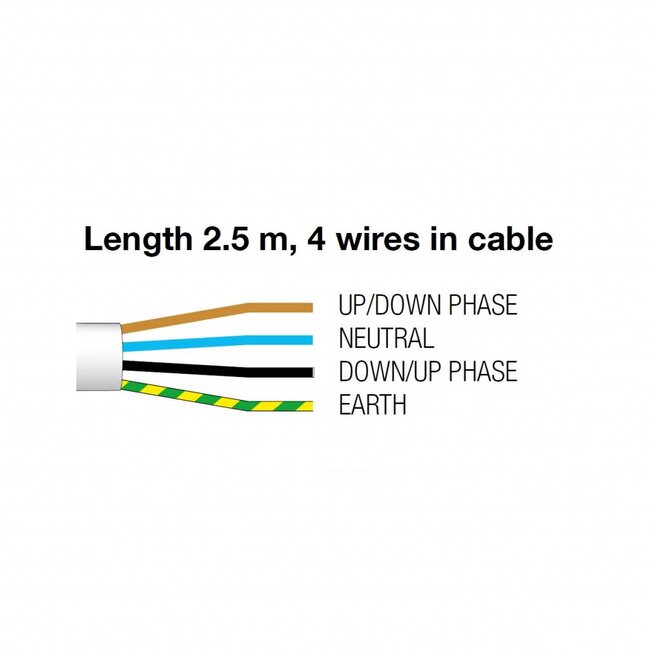

- 4-core white cable with a length of 2.5 metres
- tubular motor fits in tubes with a minimum inner diameter of 50 mm
- not suitable for continuous use

Type Nice Era M tube motors
- Nice Era M 8 Nm - 17 rpm - length 426 mm
- Nice Era M 15 Nm - 17 rpm - length 451 mm
- Nice Era M 30 Nm - 17 rpm - length 486 mm
- Nice Era M 40 Nm - 12 rpm - length 486 mm
- Nice Era M 50 Nm - 12 rpm - length 486 mm

Need a new tube motor for old type starting with XM and ending in 0
- XM15000000 - One Max 8 --> Nice Era M 8/17
- XM28000000 - One Max 15 --> Nice Era M 15/17
- XM56000000 - One Max 30 --> Nice Era M 30/17
- XM75000000 - One Max 40 --> Nice Era M 40/17
- XM93000000 - One Max 50 --> Nice Era M 50/17

Need a new tube motor for old type starting with NM and no letter at the end
- NM15000 - Neo M 8/16 --> Nice Era M 8/17
- NM28000 - Neo M 15/16 --> Nice Era M 15/17
- NM46000 - Neo M 25/16 --> Nice Era M 30/17
- NM56000 - Neo M 30/16 --> Nice Era M 30/17
- NM65000 - Neo M 35/12 --> Nice Era M 40/12
- NM90000 - Neo M 45/12 --> Nice Era M 50/12

When replacing a Nice tube motor whose reference starts with NM, it is necessary to also replace your motor support and the adapter set.
