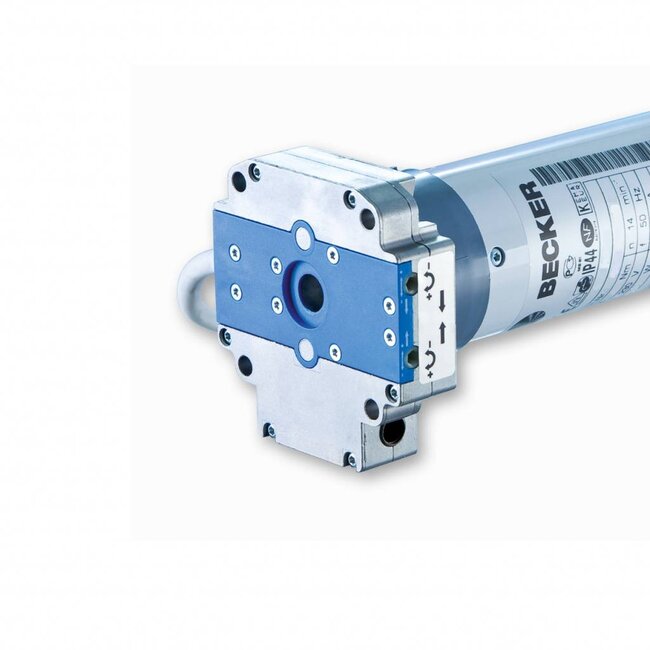

Becker DC tube motor L..-..-M07 with emergency hand control

Direct current tubular motor with mechanical end positioning and emergency hand control for axle/Shafts from Ø 63 mm, universally applicable for roller shutters and awnings

- Motor support and adapter set not included in delivery
- suitable for drive shafts from Ø 63 mm
- equipped with emergency hand control
- replacement for the L..-..G HK series
- available in 60 & 120 Nm
- power supply 24 V DC
- speed 8 rpm for 60 Nm tubular motors
- speed 3 rpm for 120 Nm tubular motor
- mechanical limit switches
- allows combination with batteries for emergency operation in case of power failure
- suitable for UP and DOWN control with standard switch
- smooth, quiet running
- motor head is rewindable
- simple adjustment of the end positions without additional setting aids
- operation with safe low voltage 24 V possible
- Can be used for swimming pool covers
