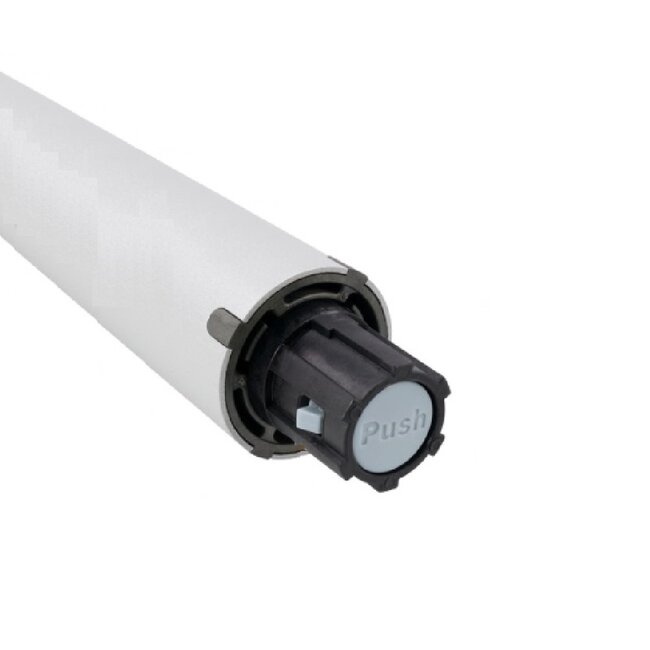

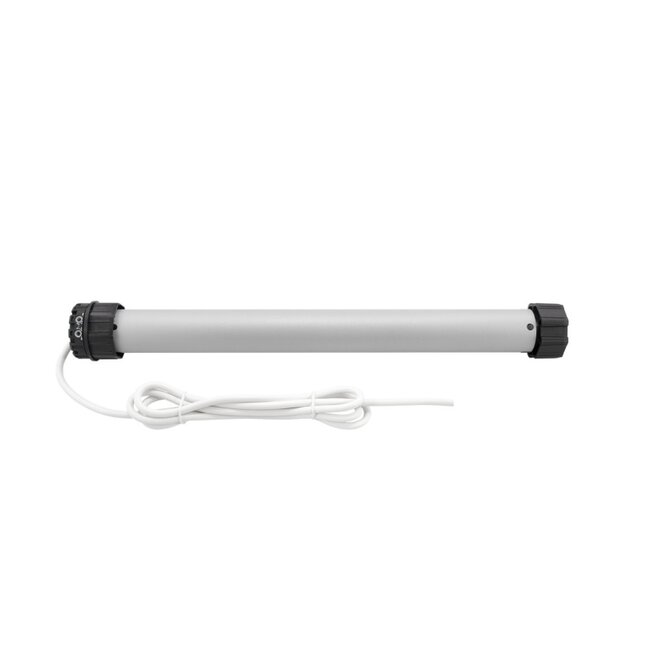

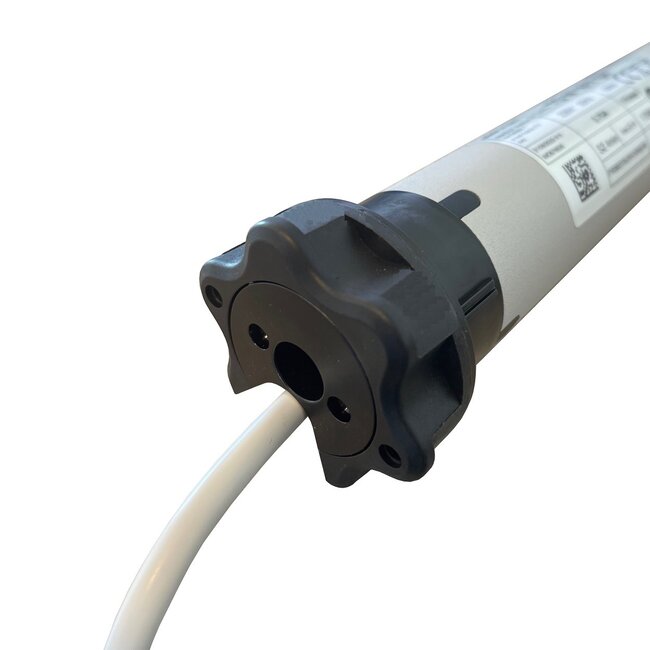

Home brand tubular motor TTGO TG ME for sun blinds and roller shutters

- Motor support and adapter set not included in delivery
- Motor is fitted with a Starhead motor head
- tubular motor 230 V/50 Hz
- with electronic final adjustment
- tubular motor has an integrated 433 MHz receiver
- 30 transmitters can be stored in memory
- speed 12 and 17 rpm, depending on the force
- available in 8 to 50 Nm
- tube motor fits tube with a minimum inner diameter of 50 mm
- final adjustment capacity 46 revolutions.
- not suitable for continuous use.

Type house brand TTGO tube motors
- tube motor TG ME 10 Nm - 17 rpm - 120 Watt - length 465 mm
- Tubular motor TG ME 15 Nm - 17 rpm - 170 Watt - length 465 mm
- Tubular motor TG ME 30 Nm - 17 rpm - 250 Watt - length 465 mm
- Tubular motor TG ME 40 Nm - 12 rpm - 245 Watt - length 465 mm
- tubular motor TG ME 50 Nm - 12 rpm - 250 Watt - length 465 mm

download the manual of the TTGO TG ME tubular motor here
